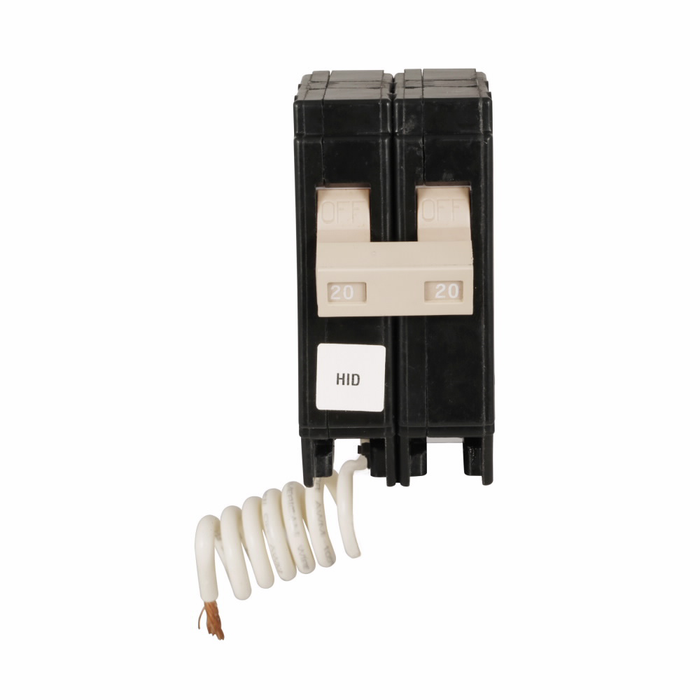

Eaton CH Thermal Magnetic Circuit Breaker, Two-Pole 120/240V

Eaton CH Thermal Magnetic Circuit Breaker, Two-Pole 120/240V

(No reviews yet) Write a Review

Model: CH220HID

In Stock (leaves warehouse same day if ordered before 3pm ET)

$353.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton CH Thermal Magnetic Circuit Breaker, Two-Pole 120/240V

The Eaton CH Thermal Magnetic Circuit Breaker is a Two-Pole breaker rated 120/240V, engineered for use with Type CH Loadcenters in residential and light commercial electrical panels. Built with common breaker trip and a 10 kAIC interrupt rating, this CH Series breaker accepts #14-8 AWG Cu/Al wire and is UL 489 listed and HACR rated, delivering dependable thermal magnetic overcurrent protection for branch circuits.

Key Features

  • Two-Pole Configuration: Rated 120/240V for standard residential and light commercial branch circuits.
  • Common Breaker Trip: Both poles trip together for coordinated circuit protection.
  • Interrupt Rating: 10 kAIC interrupt rating for reliable fault-current performance.
  • Wire Size Compatibility: Accepts #14-8 AWG Cu/Al conductors for flexible installation.
  • Loadcenter Compatibility: Designed for use with Type CH Loadcenters.
  • HACR Rated: Suitable for heating, air conditioning, and refrigeration circuit applications.
  • Compact Footprint: Requires one 3/4-Inch space per catalog specifications, with a product width of 1.5 in, length/depth of 3.25 in, and height of 3.375 in.

Certifications & Compliance

  • UL 489 Listed
  • HACR Rated

Technical Specifications

  • Main circuit breaker: CH
  • Circuit breaker type: CH
  • Voltage rating: 120/240 V
  • Number of poles: Two-pole
  • Interrupt rating: 10 kAIC
  • Wire size: #14-8 AWG Cu/Al
  • Trip Type: Common breaker trip
  • Used with: Type CH Loadcenters
  • Product Width: 1.5 in
  • Product Length/Depth: 3.25 in
  • Product Height: 3.375 in
  • Certifications: UL 489

Typical Applications

  • Residential and Light Commercial Panelboard Wiring
  • Type CH Loadcenter Circuit Protection
  • Branch Circuit Overcurrent Protection
  • HACR Equipment Circuits (Heating, Air Conditioning, Refrigeration)
  • Panel Upgrades and Circuit Breaker Replacement
  • New Construction and Renovation Electrical Panels

Why Eaton?

Eaton CH Series circuit breakers are built for code-compliant, reliable performance in Type CH Loadcenters, backed by a 10 kAIC interrupt rating and UL 489 listing. With common breaker trip protection and HACR-rated performance, this Eaton CH breaker gives electrical professionals a trusted, panel-matched solution for branch circuit protection in residential and light commercial installations.

Manufacturer Resources

Product Specs

Product Width:
1.5 in
Used with:
Type CH Loadcenters
Voltage Rating:
120/240V
Product Length/Depth:
3.25 in
Product Type:
Circuit Breaker
Product Height:
3.375 in
Catalog Notes:
Single-Pole 120/240V Requires one 3/4-Inch space. HACR rated.
Number of poles:
Two-pole
Main circuit breaker:
CH
Interrupt rating:
10 kAIC
Wire Size:
#14-8 AWG Cu/Al
Circuit breaker type:
CH
Trip Type:
Common breaker trip
Certifications:
UL 489
Department:
Electrical
Configuration:
Two-Pole
Series:
CH
Standards:
UL 489
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers
Product Length:
3.25 in
Product Weight:
0.57 lb

Eaton CH220HID – Frequently Asked Questions

1) Will an Eaton CH220HID breaker fit in my existing panel, or does it only work in Type CH loadcenters?
The CH220HID is a Type CH breaker and mounts in Eaton Type CH loadcenters only. It will not seat correctly in a BR panel or another manufacturer's bus, even though the footprint looks similar. Check the label inside your panel door for "Type CH" before ordering.
2) What wire size can I land on an Eaton CH two-pole breaker?
The lugs accept #14 through #8 AWG, copper or aluminum. That covers 15A through 40A branch wiring in either conductor material, so no separate Cu-only restriction to work around.
3) Can I use this Eaton CH breaker on an air conditioner or heat pump circuit?
Yes, the CH two-pole breaker is HACR rated, so it's suitable for heating, air conditioning and refrigeration equipment circuits. Size it to the equipment nameplate maximum overcurrent protection.
4) Is 10 kAIC enough for my service, or do I need a higher interrupting rating?
The CH two-pole carries a 10 kAIC interrupting rating, which covers typical residential and light commercial services. If your available fault current at the panel exceeds 10 kA, as it can on larger commercial transformers or short service runs, you need a higher-AIC breaker instead.
5) How much panel space does a two-pole Eaton CH breaker take up?
It's a two-pole breaker built on 3/4-inch spacing, so it occupies two adjacent 3/4-inch poles in a CH loadcenter. Overall the body measures 1.5 in wide, 3.25 in deep and 3.375 in high.
6) Do both poles of this Eaton CH breaker trip together?
They do. The CH220HID uses common breaker trip, so a fault on either pole opens both. That's what a 240V load such as a water heater, range or condensing unit requires; it isn't an independent-trip handle-tied pair.
7) Is this Eaton CH breaker good for a 240V circuit as well as 120V?
It's rated 120/240V. As a two-pole device landing on both bus phases it feeds 240V loads, and it can also serve a multiwire branch circuit with two 120V legs sharing a neutral.
8) Is the Eaton CH two-pole breaker UL listed for use as branch circuit protection?
Yes, it's listed to UL 489, the standard for molded case circuit breakers, which is what an inspector looks for on branch circuit overcurrent protection in a loadcenter.
How fast can I get the Eaton CH220HID delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton CH220HID come with a warranty?
Absolutely. The Eaton CH220HID is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton CH220HID?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Eaton CH220HID from ZenSupply?
