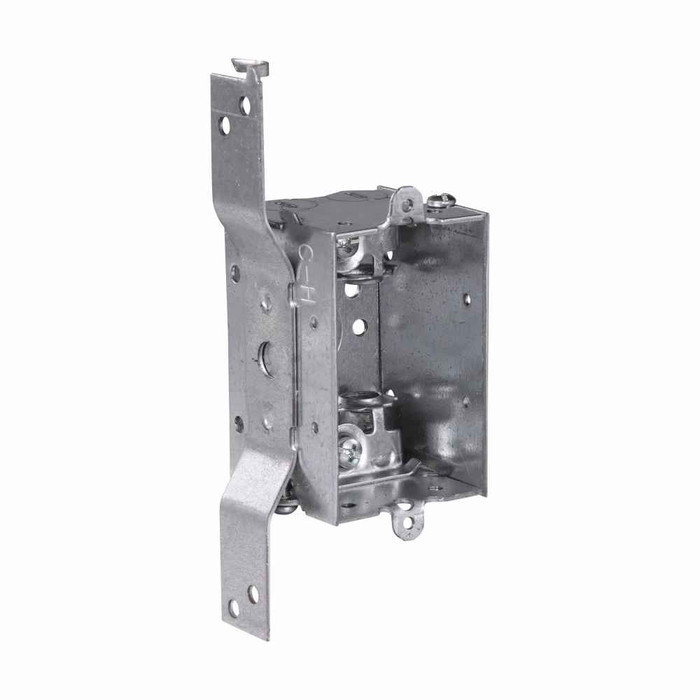

Eaton Crouse-Hinds 2" Gangable Steel Switch Box, 10 Cubic Inch

Crouse-Hinds 2" Gangable Steel Switch Box with Ears - 10 Cubic Inch Capacity

(No reviews yet) Write a Review

Model: CRS-TP126

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds 2" Gangable Steel Switch Box with Ears - 10 Cubic Inch Capacity

Professional electrical enclosure for versatile wiring applications

The Crouse-Hinds 2" Gangable Steel Switch Box delivers reliable electrical enclosure performance with 10 cubic inch capacity and durable steel construction. Designed for ordinary/non-hazardous locations, this gangable switch box features convenient mounting ears and multiple knockout configurations for flexible installation and professional wiring applications.

Professional Features & Benefits

  • 10 Cubic Inch Capacity: Provides ample space for wire connections and electrical components in standard applications
  • Gangable Design: Allows multiple boxes to be connected together for expanded installation flexibility and multi-device mounting
  • Steel Construction: Ensures long-lasting durability and reliable protection in demanding electrical environments
  • Multiple Knockout Options: Features strategically placed 1/2" knockouts on bottom, end, and sides for versatile conduit entry points
  • Mounting Ears: Integrated ears provide secure and convenient mounting to electrical boxes and structural supports
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for professional installation confidence

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Bottom Knockouts: (1) 1/2 in
  • Cable Knockouts: 2
  • Capacity: 10 cubic in
  • Depth: 2"
  • End Knockouts: (1) 1/2 in
  • Product Details: Gangable
  • Product Height: 3 in
  • Product Length Depth: 2 in
  • Product Material: Steel
  • Product Width: 2 in
  • Side Knockouts: (2) 1/2 in
  • Special Features: Ears
  • Standards Type: NEC/CEC

Professional Applications

  • Residential electrical installations and switch mounting
  • Commercial building electrical systems
  • Industrial facility wiring applications
  • Multi-gang switch and device installations
  • Electrical panel and distribution upgrades
  • Professional electrical contractor projects

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability with NEC/CEC compliant steel construction and professional-grade design features. The gangable configuration and multiple knockout options provide installation flexibility while maintaining the durability and performance standards expected from trusted Crouse-Hinds electrical products.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Bottom Knockouts:
(1) 1/2 in
Cable Knockouts:
2
Capacity:
10 cubic in
Product Depth:
2"
End Knockouts:
(1) 1/2 in
Product Details:
Gangable
Product Height:
3 in
Product Length Depth:
2 in
Product Material:
Steel
Product Width:
2 in
Side Knockouts:
(2) 1/2 in
Special Features:
Ears
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Electrical Box
Product Subgroup:
Electrical Boxes
Product Group:
Boxes & Enclosures

Crouse-Hinds CRS-TP126 – Frequently Asked Questions

1) Which Crouse-Hinds TP switch box do I order for NM (Romex) cable versus MC or conduit?
The cable type decides the model. TP116 comes with clamps in each end for non-metallic cable. TP120 has clamps in each end for armored and metal-clad (MCI) cable. TP126 has no clamps and is the conduit version with a flush device configuration, and TP130 is the same conduit box with two-screw ears. Pick the clamped version only if you are pulling cable into the box; with conduit the connector does the clamping and the clamps just eat up fill space.
2) How many conductors can I put in a 10 cubic inch steel switch box?
Capacity on the Crouse-Hinds 2 inch gangable switch box is 10 cubic inches. Under NEC box fill rules that is five 14 AWG conductors or four 12 AWG at 2.00 and 2.25 cubic inches each before you subtract anything, and you still have to deduct a volume for the device yoke, for the grounding conductors as a group, and for internal cable clamps if you take the TP116 or TP120. On a single switch with 12 AWG that 10 cubic inches gets tight fast, so gang a second box or step to a deeper one if you are landing more than one cable.
3) Is this Crouse-Hinds box rated for hazardous locations?
No. It is classified for ordinary, non-hazardous locations only. For a Class I or Class II area you need a cast hazardous-location enclosure, not a gangable steel switch box.
4) What size are the knockouts on the Crouse-Hinds TP gangable switch box?
All knockouts are 1/2 inch trade size: one on the bottom, one on the end, and two on the sides. That matches 1/2 inch EMT or rigid connectors and standard 1/2 inch cable connectors, so no reducers or step bits needed for a normal branch circuit run. There are also two cable knockouts.
5) Will a 2 inch deep switch box fit in a 2x4 stud wall?
It will. Depth is 2 inches, which clears a nominal 2x4 stud at 3-1/2 inches actual with room behind. The ears are what set the box face relative to the finished drywall when you nail or screw it to the stud edge, so set your ear position for the wall covering thickness you are running.
6) Does this switch box meet code for commercial work?
The box is built to NEC/CEC standards, so it is acceptable for code-compliant work in the United States and Canada in ordinary, non-hazardous locations. Steel construction also means it can serve as part of the equipment grounding path when fed with metallic raceway or armored cable, which is the usual reason a spec calls for steel rather than plastic.
7) I need more room than a 10 cubic inch switch box gives me. What should I use instead?
When box fill runs out, step up to a 4 inch square box with a device ring instead of ganging switch boxes. The RACO 232MS is a 4 inch square welded box, 2-1/8 inches deep, rated 600V, and it gives far more usable volume for splices feeding multiple devices. The tradeoff is that a welded square box is not gangable the way the Crouse-Hinds TP boxes are, so plan the device ring for the number of devices up front.
8) I am running MC cable - which Crouse-Hinds switch box version do I order, and is a square box a better choice?
For armored and metal-clad cable, order the TP120, which comes with clamps in each end sized for MC. Non-metallic cable takes the TP116 with NM clamps, and conduit runs take the TP126 or TP130, which ship without clamps. All four are the same 10 cubic inch steel box with (2) 1/2 in side knockouts, (1) 1/2 in bottom and (1) 1/2 in end knockout. A 4 in square box such as the RACO 232MS is the alternative when you want more wiring room at 2-1/8 in deep with a 600V rating, with cable secured by a separate connector at the knockout rather than by an integral clamp.
