Crouse-Hinds Cam-Lok J Series E1016 Female Terminal Connector - 400A Angle Style with NEMA 3R Rating

Crouse-Hinds Cam-Lok J Series E1016 Female Terminal Connector - 400A Angle Style with NEMA 3R Rating

Professional electrical connection solution for demanding applications

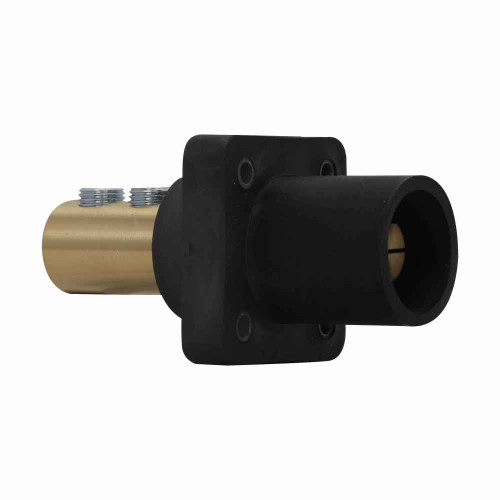

The Crouse-Hinds Cam-Lok J Series E1016 Female Terminal Connector delivers reliable electrical connections with up to 400A continuous rating and 600 Vac/dc voltage capability. Featuring durable rubber construction and NEMA 3R rating for weather resistance, this angle-style female connector accommodates #2-4/0 AWG cable sizes and meets NEC/CEC standards for ordinary/non-hazardous locations.

Professional Features & Benefits

• 400A Continuous Rating: Handles high-amperage applications with reliable current-carrying capacity for demanding electrical systems.
• 600 Vac/dc Voltage Rating: Supports both AC and DC applications across a wide voltage range for versatile installation flexibility.
• NEMA 3R Weather Protection: Provides protection against rain, sleet, and ice formation for reliable outdoor performance.
• Rubber Construction: Offers excellent durability and flexibility while maintaining electrical insulation properties.
• Angle Style Design: Facilitates easier cable routing and connection access in space-constrained installations.
• NEC/CEC Compliance: Meets established electrical code standards for safe and compliant installations.
• #2-4/0 AWG Compatibility: Accommodates a range of cable sizes for flexible system design and installation options.

Technical Specifications

• Amperage Rating: Up to 400A Continuous
• Area Classification: Ordinary/Non-Hazardous Locations
• Cable Size: #2-4/0 AWG
• Gender: Female
• Nema Rating: 3R
• Product Material: Rubber
• Product Style: Angle
• Standards Type: NEC/CEC
• Voltage Rating: 600 Vac/dc

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Temporary Power Distribution Systems
• Portable Generator Connections
• Entertainment and Event Power
• Construction Site Electrical
• Industrial Equipment Connections
• Emergency Power Systems
• Commercial Facility Power Distribution

Why Choose Crouse-Hinds Quality?

Crouse-Hinds terminal connectors provide dependable electrical connections backed by robust rubber construction and NEMA 3R weather protection. With NEC/CEC compliance and proven performance in ordinary locations, these connectors deliver the reliability professionals demand for critical electrical connections.
