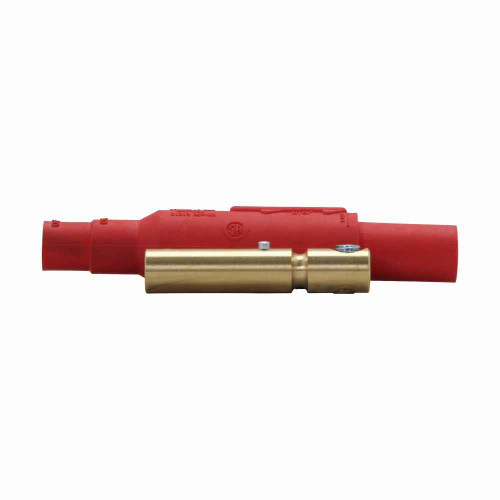

Crouse-Hinds Cam-Lok J Series E1016 Female Plug with Double Set Screw Connection - 600V Brass Contacts

Crouse-Hinds Cam-Lok J Series E1016 Female Plug with Double Set Screw Connection - 600V Brass Contacts

Professional electrical connection solution for industrial and commercial applications

The Crouse-Hinds Cam-Lok J Series E1016 female plug delivers reliable electrical connections with 600V AC/DC rating and durable brass contacts. Featuring thermoplastic elastomer (TPE) construction with NEMA 3R rating, this non-vulcanized plug provides secure double set screw connections for ordinary/non-hazardous locations. Engineered for professional installations requiring dependable power distribution and connection integrity.

Professional Features & Benefits

• 600V AC/DC Rating: Handles high-voltage applications with reliable performance for demanding electrical systems
• Brass Contact Material: Provides excellent conductivity and corrosion resistance for long-term connection reliability
• Double Set Screw Connection: Ensures secure conductor attachment with positive mechanical connection for safety
• NEMA 3R Rating: Weather-resistant enclosure protects against rain, sleet, and ice formation in outdoor installations
• TPE Construction: Thermoplastic elastomer material offers flexibility and durability in varying environmental conditions
• NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for professional installations
• Compact Design: 1.5" x 1.5" x 7.18" dimensions with lightweight 0.6 lb construction for versatile mounting options

Technical Specifications

• Area Classification: Ordinary/Non-Hazardous Locations
• Connection Type: Double set screw
• Contact Material: Brass
• Gender: Female
• Nema Rating: 3R
• Product Details: Non-vulcanized
• Product Height: 1.5 in
• Product Length Depth: 7.18 in
• Product Material: Thermoplastic elastomer (TPE)
• Product Weight: .6 lb
• Product Width: 1.5 in
• Standards Type: NEC/CEC
• Voltage Rating: 600 Vac/dc

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Power Distribution Systems
• Commercial Electrical Installations
• Temporary Power Connections
• Generator Connection Points
• Equipment Interconnections
• Maintenance and Service Applications
• Portable Power Distribution

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability with NEMA 3R weather-resistant construction and NEC/CEC compliant design. The brass contact material and TPE housing ensure long-term durability in demanding electrical applications, backed by professional-grade engineering and manufacturing standards.
