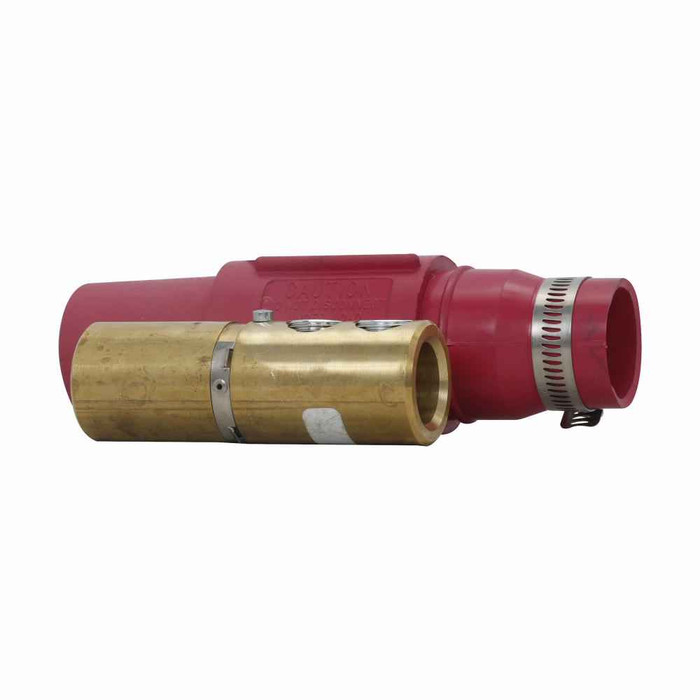

Crouse-Hinds Cam-Lok J Series E1017 Female Plug 545A 600V Non-Vulcanized Rubber Double Set Screw Connection

Crouse-Hinds Cam-Lok J Series E1017 Female Plug 545A 600V Non-Vulcanized Rubber Double Set Screw Connection

Heavy-Duty Electrical Connection Solution for Industrial Applications

The Crouse-Hinds Cam-Lok J Series E1017 Female Plug delivers reliable electrical connections with 545A continuous amperage capacity and 600V rating. Featuring non-vulcanized rubber construction with NEMA 3R rating for ordinary locations, this female plug accommodates 350-500 kcmil cable sizes with secure double set screw connections and brass contact material for dependable performance.

Professional Features & Benefits

• 545A Continuous Rating: Handles high-amperage applications with reliable current capacity for demanding industrial electrical systems.
• 600V AC/DC Rating: Versatile voltage compatibility supports both alternating and direct current applications across various power systems.
• NEMA 3R Enclosure: Weather-resistant design protects connections from rain, sleet, and external ice formation in outdoor installations.
• Non-Vulcanized Rubber Construction: Flexible material provides excellent insulation properties and ease of installation in various environmental conditions.
• Double Set Screw Connection: Secure mechanical connection method ensures reliable conductor attachment and reduces connection resistance.
• Brass Contact Material: Corrosion-resistant contacts provide excellent conductivity and long-term electrical performance.
• 350-500 kcmil Cable Compatibility: Accommodates large conductor sizes for high-current distribution and power transmission applications.

Technical Specifications

• Amperage Rating: Up to 545A Continuous
• Area Classification: Ordinary/Non-Hazardous Locations
• Cable Size: 350-500 kcmil
• Connection Type: Double set screw
• Contact Material: Brass
• Gender: Female
• Nema Rating: 3R
• Product Details: Non-vulcanized
• Product Material: Rubber
• Standards Type: NEC/CEC
• Voltage Rating: 600 Vac/dc

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Power Distribution Systems
• Manufacturing Facility Electrical Connections
• Commercial Building Power Infrastructure
• Temporary Power Distribution
• Generator Connection Systems
• Heavy Equipment Electrical Connections
• Utility and Substation Applications

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability with NEC/CEC compliant design and NEMA 3R weather protection. The brass contact construction and non-vulcanized rubber materials ensure long-term durability and consistent electrical performance in demanding industrial environments.
