Eaton Crouse-Hinds Condulet® Mark 9 Outlet Bodies - Type LR Copper-Free Aluminum, Rigid/IMC Threaded Series

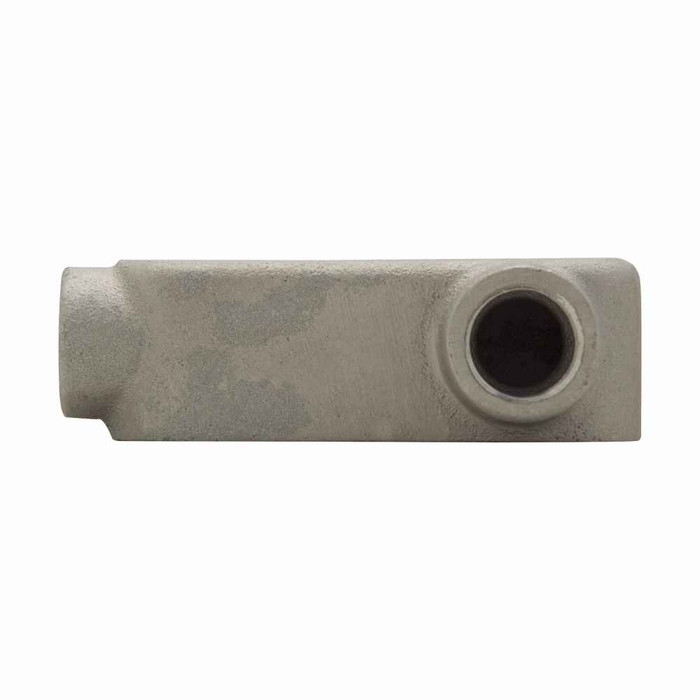

Crouse-Hinds Condulet Mark 9 Type LR Outlet Body Copper-Free Aluminum NEMA 12 Rigid/IMC Threaded

(No reviews yet) Write a Review

Model: LR69

In Stock (leaves warehouse same day if ordered before 3pm ET)

$275.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds Condulet Mark 9 Type LR Outlet Body Copper-Free Aluminum NEMA 12 Rigid/IMC Threaded

Professional electrical conduit routing solution for ordinary locations

The Crouse-Hinds Condulet Mark 9 Type LR Outlet Body delivers reliable conduit system connectivity with copper-free aluminum construction and NEMA 12 protection rating. This professional-grade outlet body features Type LR configuration for right-angle conduit routing applications, designed for rigid and IMC threaded connections in ordinary/non-hazardous locations.

Professional Features & Benefits

  • NEMA 12 Rating: Provides protection against dust, falling dirt, and dripping non-corrosive liquids for reliable performance in industrial environments.
  • Copper-Free Aluminum Construction: Delivers lightweight durability with excellent corrosion resistance and cost-effective installation.
  • Type LR Configuration: Enables efficient right-angle conduit routing for complex electrical pathway management and space optimization.
  • Rigid/IMC Threaded Compatibility: Ensures secure connections with standard rigid and intermediate metal conduit systems.
  • NEC/CEC Standards Compliance: Meets National Electrical Code and Canadian Electrical Code requirements for professional installations.
  • Mark 9 Series Design: Provides proven Crouse-Hinds engineering for consistent performance and long-term reliability.

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Nema Rating: 12
  • Product Material: Copper-free aluminum
  • Product Shape: LR
  • Standards Type: NEC/CEC

Professional Applications

  • Commercial and Industrial Electrical Systems
  • Manufacturing Facilities
  • Warehouse and Distribution Centers
  • Office Buildings and Retail Spaces
  • Educational and Healthcare Facilities
  • Municipal and Government Buildings
  • Light Industrial Applications

Why Choose Crouse-Hinds Quality?

Crouse-Hinds Condulet outlet bodies provide trusted performance with NEMA 12 protection rating and NEC/CEC standards compliance. The copper-free aluminum construction ensures reliable durability while the Mark 9 series design delivers consistent professional-grade performance for demanding electrical applications.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Nema Rating:
12
Product Material:
Copper-free aluminum
Product Shape:
LR
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Type LR Conduit Body
Product Subgroup:
Conduit Bodies & Covers
Product Group:
Conduit & Raceway

Crouse-Hinds LR69 – Frequently Asked Questions

1) What trade sizes does the Crouse-Hinds Mark 9 Type LR outlet body come in?
Five trade sizes: 3/4 inch (LR29), 1 inch (LR39), 1-1/4 inch (LR49), 1-1/2 inch (LR59), and 2 inch (LR69). Size to the conduit you are running, since the hubs are threaded to that trade size and there is no reducing built in. Order a reducing bushing separately if you are stepping down.
2) Will this Condulet thread onto EMT or PVC conduit?
No. The Mark 9 Type LR is threaded for rigid metal conduit and IMC, both of which take standard NPT conduit thread. EMT is not threaded, so you would need an EMT-to-threaded-rigid coupling or a set-screw/compression connector adapter to land on it. For a PVC run, use a PVC body instead, such as the Kraloy LB25 access fitting, which is a PVC LB with cover and gasket.
3) Can I use this conduit body in a Class I Division 2 or other hazardous location?
No. The Mark 9 Type LR is rated for ordinary, non-hazardous locations only. For a classified area you need an explosionproof body from the hazardous-location Condulet lines, not the Mark 9.
4) Is a NEMA 12 conduit body okay outdoors or in a washdown area?
Not really. NEMA 12 covers dust, falling dirt, and dripping non-corrosive liquids, which suits indoor industrial and manufacturing space. It is not a rating for rain, hose-down, or sleet exposure, so for an exterior wall or a washdown bay specify a body with a weatherproof or watertight rating instead.
5) What is the difference between a Crouse-Hinds Mark 9 LR conduit body and a Kraloy LB25 PVC LB fitting?
They differ in both body shape and material system. The Crouse-Hinds Condulet Mark 9 Type LR is a copper-free aluminum outlet body with an LR shape, threaded for rigid and IMC conduit, and rated NEMA 12 for ordinary/non-hazardous locations. The Kraloy 078146 is an LB25 series 2-1/2 inch PVC LB access fitting supplied with a cover and gasket, so it belongs to a solvent-weld PVC raceway rather than a threaded metal one. Choose the Mark 9 LR when the run is metallic rigid/IMC and the pull point needs to turn in the LR orientation; choose the PVC LB when the raceway is PVC and the back-outlet LB geometry is what the run calls for.
6) Does this Condulet meet code for a commercial electrical inspection?
The Mark 9 Type LR is built to NEC and CEC standards, so it is acceptable for ordinary-location commercial and institutional work in both the US and Canada. Install it within its rating: non-hazardous areas, and an environment no wetter than what NEMA 12 covers.
7) Does the LR outlet body ship with a cover and gasket?
Order the cover and gasket as separate items for the Mark 9 Type LR. The body is the threaded casting; match the cover to the same trade size, so a 1-1/4 inch LR49 takes a 1-1/4 inch cover. If you want a fitting that arrives complete with its cover and gasket, the Kraloy LB25 PVC access fitting is supplied that way, though it is PVC and an LB configuration rather than LR.
8) I'm standardizing conduit bodies across a plant. Can I run these Mark 9 LR bodies on every size in the building?
Across a plant, the Mark 9 Type LR covers 3/4 inch through 2 inch on rigid and IMC, which handles most branch and feeder routing. Anything above 2 inch or any run in a classified area will have to come from a different line. Keep the part numbers straight on the order: LR29, LR39, LR49, LR59, LR69 in ascending trade size.
9) Why copper-free aluminum instead of malleable iron for a conduit body?
Copper-free aluminum is lighter to hang on a long run and resists corrosion without the coating maintenance iron needs. The copper-free part matters where the atmosphere would attack a copper-bearing alloy. Malleable iron is the choice if you need the mechanical toughness in a high-abuse area; for typical indoor commercial and light industrial routing, aluminum is the usual spec.
