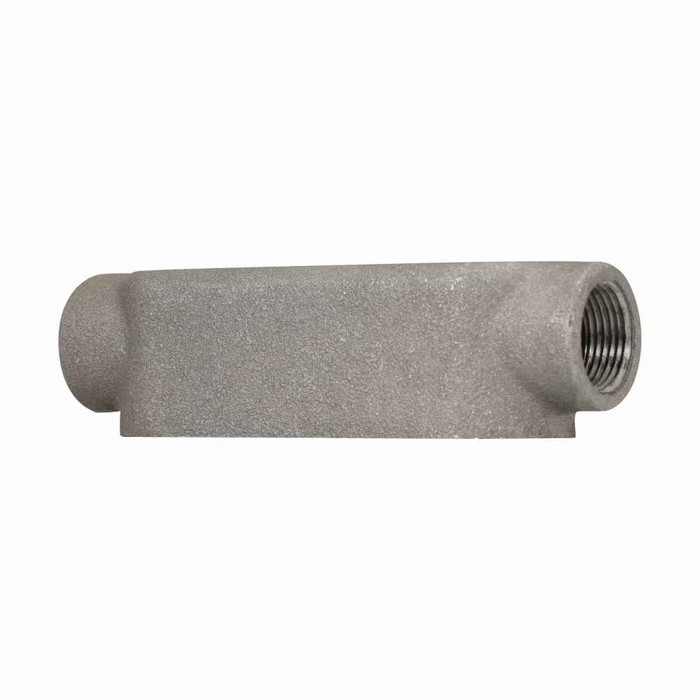

Eaton Crouse-Hinds Series Condulet Mark 9 Conduit Outlet Bodies - C Shape

Crouse-Hinds Mark 9 C-Shape Condulet Conduit Outlet Body - NEMA 12 Copper-Free Aluminum

(No reviews yet) Write a Review

Model: C29

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds Mark 9 C-Shape Condulet Conduit Outlet Body

Professional NEMA 12 Conduit Outlet Body for Ordinary Locations

The Crouse-Hinds Mark 9 C-Shape Condulet provides reliable conduit routing and connection solutions for ordinary/non-hazardous locations. Constructed from durable copper-free aluminum with NEMA 12 rating, this condulet outlet body delivers professional performance for electrical installations requiring directional conduit changes and wire pulling access points.

Professional Features & Benefits

  • NEMA 12 Rating: Provides protection against dust, falling dirt, and dripping non-corrosive liquids for reliable indoor performance
  • C-Shape Configuration: Enables 90-degree conduit direction changes with convenient wire pulling and splicing access
  • Copper-Free Aluminum Construction: Delivers corrosion resistance and lightweight durability for long-term service life
  • Mark 9 Series Design: Professional-grade outlet body engineered for consistent performance in electrical distribution systems
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for safe installation practices
  • Ordinary Location Rating: Suitable for standard commercial and industrial environments without hazardous atmosphere concerns

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Nema Rating: 12
  • Product Material: Copper-free aluminum
  • Product Shape: C
  • Standards Type: NEC/CEC

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Routing
  • Institutional Electrical Installations
  • Manufacturing Plant Distribution
  • Office Building Infrastructure
  • Retail Facility Electrical Systems
  • Educational Facility Wiring

Why Choose Crouse-Hinds Quality?

Crouse-Hinds Mark 9 condulets deliver proven reliability through NEMA 12 environmental protection and copper-free aluminum construction. With NEC/CEC compliance and professional-grade design, these outlet bodies provide dependable performance for demanding electrical distribution applications.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Nema Rating:
12
Product Material:
Copper-free aluminum
Product Shape:
C
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Type C Conduit Body
Product Subgroup:
Conduit Bodies & Covers
Product Group:
Conduit & Raceway

Crouse-Hinds C29 – Frequently Asked Questions

1) What trade sizes does the Crouse-Hinds Mark 9 C-shape Condulet come in?
The Mark 9 C body is offered in 3/4 inch (C29), 1 inch (C39), 1-1/4 inch (C49), 1-1/2 inch (C59), 2 inch (C69), 2-1/2 inch (C789) and 3 inch (C889). Order the size that matches the conduit run it is going into, since the hubs are threaded for that trade size.
2) Can a Mark 9 C Condulet be used outdoors or in a wet or hazardous area?
No. The Mark 9 C body is rated NEMA 12, which covers dust, falling dirt and dripping non-corrosive liquids indoors, and it is classified for ordinary/non-hazardous locations only. For a classified area or a washdown/outdoor location you need a body built for that duty, not this one.
3) I need a 2-1/2 inch pull point on a PVC run - can I use the Crouse-Hinds C789?
The C789 is the 2-1/2 inch trade size of the Mark 9 C-shape body and it is copper-free aluminum, so it is built for a metallic conduit system. For a 2-1/2 inch PVC run, the Kraloy 078146 LB25 PVC access fitting is the matching-size PVC option and it ships with its cover and gasket. Match the fitting material to the raceway material on the drawing.
4) What is the difference between a C body and an LB, LL or LR conduit body?
A C body is a straight-through pull point: both hubs are in line, so it gives you access for pulling and splicing without changing direction. LB, LL and LR bodies turn the run 90 degrees (back, left, right). If your conduit has to change direction at a wall or corner, an L body is the fitting; if you just need a pull or splice opening in a straight run, the Mark 9 C is what you want.
5) Does the Mark 9 Condulet come with a cover and gasket, or do I order those separately?
The Mark 9 C body is sold as the outlet body itself. Covers and gaskets for condulets are ordered as separate line items and have to be matched to the body size, so plan for a cover and a gasket per body if you need to hold the NEMA 12 rating. By contrast, the Kraloy 078146 PVC LB fitting includes its cover and gasket in the box.
6) Is a Mark 9 C body acceptable as a pull point in a plant conduit run?
Yes, that is its job. The C shape gives you an opening in a straight run for pulling wire and making splices, and the body is used in commercial buildings, manufacturing plants, schools, offices and retail electrical distribution. Keep it to dry, non-classified indoor areas, since it is a NEMA 12 ordinary-location fitting.
7) Is copper-free aluminum a problem for an electrical inspection or for corrosion?
Copper-free aluminum is the standard material spec for condulets in industrial plants because the low copper content resists the corrosion that attacks copper-bearing alloys, and it keeps the body light compared to malleable iron. The Mark 9 line is built to NEC and CEC standards, so it installs under the same code rules as the rest of the conduit system.
