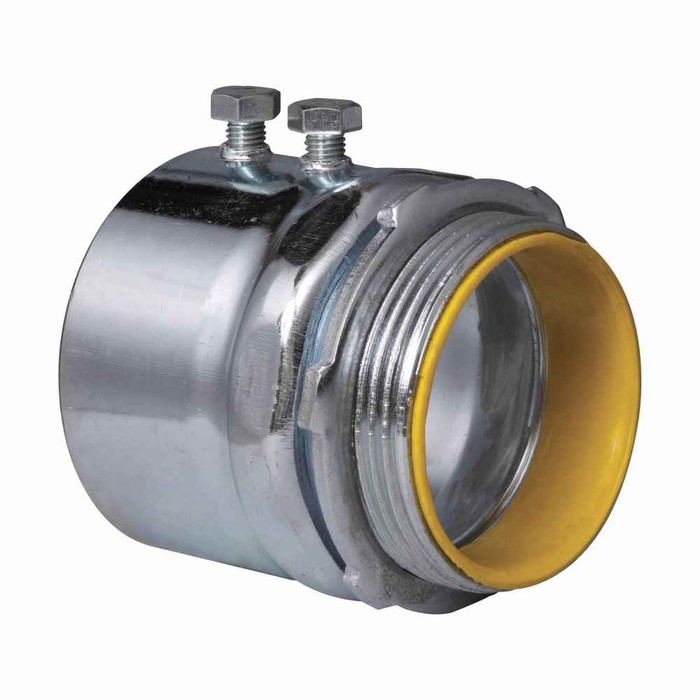

Eaton Crouse-Hinds EMT Set Screw Straight Connector - Insulated, Steel

Crouse-Hinds EMT Set Screw Straight Connector - Insulated Steel with Dual Tightening Screws

(No reviews yet) Write a Review

Model: CRS-1455

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds EMT Set Screw Straight Connector - Insulated Steel with Dual Tightening Screws

Professional EMT conduit connection solution for reliable electrical installations

The Crouse-Hinds EMT Set Screw Straight Connector delivers dependable conduit joining performance with insulated steel construction. This professional-grade connector features dual tightening screws for secure EMT conduit connections in ordinary locations, providing the reliable performance electrical professionals expect from Crouse-Hinds quality.

Professional Features & Benefits

  • Steel Construction: Durable steel material provides long-lasting performance and mechanical strength for demanding electrical applications.
  • Insulated Design: Integrated insulation enhances safety and prevents unwanted electrical contact during installation and operation.
  • Set Screw Connection: Reliable set screw mechanism ensures secure conduit attachment with consistent holding power.
  • Dual Tightening Screws: Two tightening screws provide enhanced grip and connection reliability for professional installations.
  • Straight Connector Type: Direct inline connection design maintains conduit run continuity without direction changes.
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for code-compliant installations.
  • Ordinary Location Rating: Suitable for non-hazardous environments covering most commercial and residential applications.

Technical Specifications

  • Area Classification: Ordinary/Non-Hazardous Locations
  • Conduit Type: EMT
  • Connector Type: Straight
  • Insulator: Insulated
  • Product Material: Steel
  • Product Style: Set screw
  • Special Features: Two tightening screws
  • Standards Type: NEC/CEC

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Runs
  • Residential Electrical Installations
  • Retail and Office Buildings
  • Educational Facilities
  • Healthcare Facilities
  • Municipal and Government Buildings

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability with steel construction and NEC/CEC compliant design. The insulated connector with dual tightening screws provides the professional-grade performance and safety features electrical contractors trust for critical conduit connections.

Manufacturer Resources

Product Specs

Area Classification:
Ordinary/Non-Hazardous Locations
Conduit Type:
EMT
Connector Type:
Straight
Insulator:
Insulated
Product Material:
Steel
Product Style:
Set screw
Special Features:
Two tightening screws
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Conduit Connector
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Crouse-Hinds CRS-1455 – Frequently Asked Questions

1) Will this Crouse-Hinds connector work on rigid or IMC conduit?
No. It is an EMT fitting only. The set screw body grips thin-wall EMT on the outside; rigid and IMC are threaded and need a threaded coupling or a rigid-to-EMT compression or threadless fitting instead. Using it on rigid conduit will not give you a proper mechanical or grounding connection.
2) Can I use a set screw EMT connector in a wet or outdoor location?
No. This connector is rated for ordinary, non-hazardous locations, and set screw fittings are dry-location only. For wet, outdoor, or concrete-poured applications you need a raintight compression (gland nut) EMT connector. Keep the set screw version to indoor dry runs, exposed or in walls.
3) Is this an insulated throat connector so I don't need a separate bushing?
Yes, the throat is insulated as supplied. That protects conductor insulation as wire is pulled through the box entry, so you are not adding a plastic bushing at each termination. Insulated throat fittings are commonly specified for wire-pull protection on EMT runs.
4) Does the Crouse-Hinds 1450 series connector meet code for commercial and institutional jobs?
It is built to NEC and CEC standards for ordinary, non-hazardous locations, which covers typical commercial, office, retail, school, healthcare and municipal conduit work. Hazardous (classified) areas are a different fitting family entirely and this one should not be substituted there.
5) Is this connector steel or die-cast zinc?
Steel. For facility and industrial runs where fittings take knocks during and after install, steel bodies hold up better than die-cast; it is also the material most commercial specs call for on EMT raceway fittings.
6) What is a straight EMT connector used for versus a coupling?
A straight connector terminates an EMT run into a box, panel, or enclosure knockout, in line with no change of direction. A coupling joins two lengths of EMT to each other. If you are landing conduit on a junction box, the connector is what you want; if you are extending a run mid-span, order couplings instead.
7) Why does this EMT connector have two set screws instead of one?
The larger-grip design uses two tightening screws rather than a single screw, which spreads the clamping load on the EMT and resists the conduit pulling or rotating out of the fitting. On larger trade sizes and on vertical or supported runs that extra bite is what keeps the raceway continuous for grounding.
8) Can I standardize one EMT connector across a whole building's branch circuits and feeders?
Yes, across dry indoor runs. The same insulated steel set screw design runs from 1/2 inch for branch circuit work up to 4 inch for feeder and riser conduit, so an MRO stockroom can carry one family in a few sizes rather than mixing brands and styles. Outdoor, wet, or classified areas still need their own fittings.
