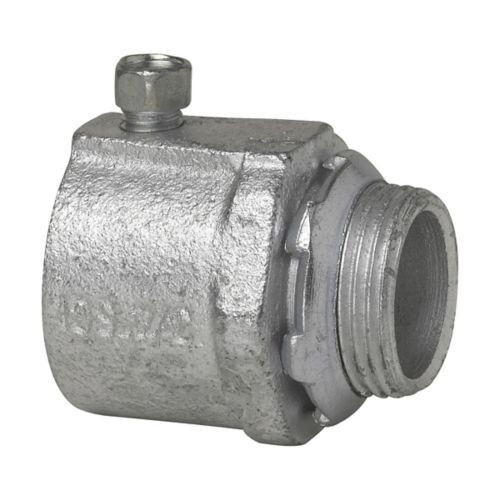

Crouse-Hinds Rigid/IMC Set Screw Connector - Straight, Non-Insulated, Malleable Iron Construction

Crouse-Hinds Rigid/IMC Set Screw Connector - Straight, Non-Insulated, Malleable Iron Construction

Professional Conduit Connection Solution for Rigid and IMC Applications

The Crouse-Hinds Rigid/IMC Set Screw Connector delivers reliable straight conduit connections with malleable iron construction for professional electrical installations. This non-insulated connector provides secure attachment for rigid and IMC conduit systems in ordinary/non-hazardous locations, meeting NEC/CEC standards for dependable performance.

Professional Features & Benefits

• Malleable Iron Construction: Provides exceptional durability and corrosion resistance for long-lasting conduit connections in demanding environments.
• Set Screw Design: Ensures secure, reliable attachment with easy installation and maintenance access for professional applications.
• Rigid/IMC Compatibility: Accommodates both rigid and intermediate metallic conduit types for versatile installation flexibility.
• Straight Configuration: Delivers direct conduit-to-enclosure connections without angular deviation for clean, efficient routing.
• Non-Insulated Design: Maintains electrical continuity and grounding path integrity throughout the conduit system.
• NEC/CEC Compliance: Meets established electrical code requirements for safe, code-compliant installations.
• Ordinary Location Rating: Suitable for standard commercial and industrial applications without special hazardous area considerations.

Technical Specifications

• Area Classification: Ordinary/Non-Hazardous Locations
• Conduit Type: Rigid/IMC
• Connector Type: Straight
• Insulator: Non-insulated
• Product Material: Malleable iron
• Product Style: Set screw
• Standards Type: NEC/CEC

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Systems
• Industrial Facility Conduit Installations
• Institutional and Educational Facilities
• Healthcare and Medical Facilities
• Retail and Office Buildings
• Manufacturing and Processing Plants
• Municipal and Government Buildings

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability through malleable iron construction and NEC/CEC compliant design, ensuring dependable conduit connections that meet professional electrical installation standards for ordinary location applications.
