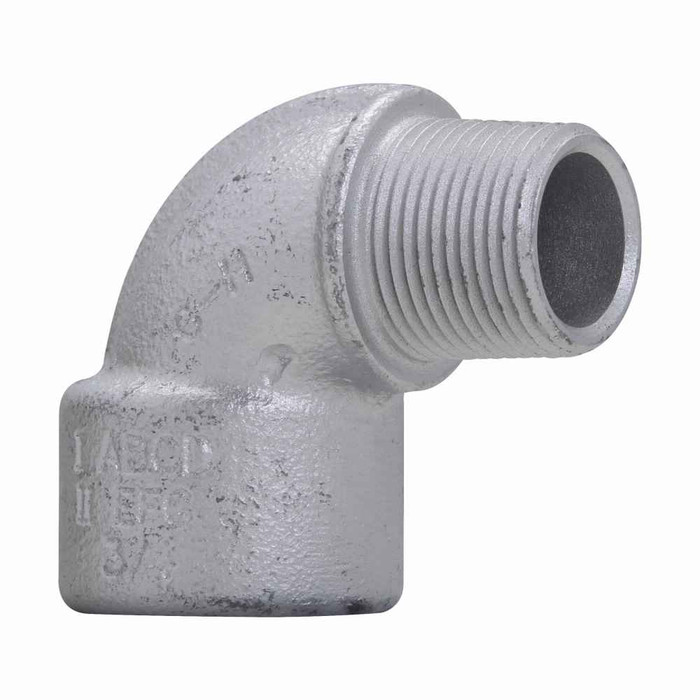

Eaton Crouse-Hinds Explosion-Proof Conduit Elbows - EL Series 90° Rigid/IMC Threaded Elbows

Crouse-Hinds EL Series 90° Explosion-Proof Conduit Elbow Class I Division 1 Rigid/IMC Threaded

(No reviews yet) Write a Review

Model: EL496

In Stock (leaves warehouse same day if ordered before 3pm ET)

$79.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

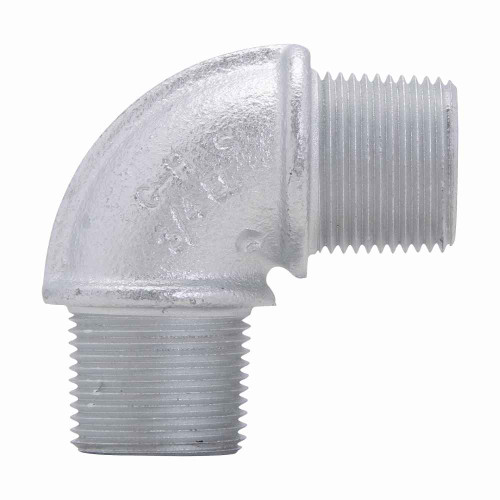

You may also like

Crouse-Hinds EL Series 90° Explosion-Proof Conduit Elbow

Professional hazardous location conduit routing solution

The Crouse-Hinds EL Series 90° Explosion-Proof Conduit Elbow delivers reliable conduit routing for hazardous and classified locations. Engineered with male and female threaded connections for rigid and IMC conduit systems, this explosion-proof elbow provides secure directional changes while maintaining Class I, Division 1 safety ratings in compliance with NEC/CEC standards.

Professional Features & Benefits

  • Class I, Division 1 Rating: Certified for use in the most hazardous classified locations with flammable gases and vapors present under normal operating conditions.
  • 90° Angle Design: Provides precise directional changes in conduit runs while maintaining explosion-proof integrity and system continuity.
  • Male and Female Connections: Versatile threading accommodates various installation configurations and conduit routing requirements.
  • Rigid/IMC Compatibility: Designed specifically for use with rigid steel and intermediate metal conduit systems in industrial applications.
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code requirements for hazardous location installations.
  • Explosion-Proof Construction: Engineered to contain internal explosions and prevent ignition of surrounding hazardous atmospheres.

Technical Specifications

  • Area Classification: Hazardous/Classified Locations
  • Gender: Male and female
  • Nec Hazardous Rating: Class I, Division 1
  • Product Shape: 90° angle
  • Standards Type: NEC/CEC

Professional Applications

  • Petrochemical Processing Facilities
  • Oil and Gas Refineries
  • Chemical Manufacturing Plants
  • Paint and Coating Operations
  • Pharmaceutical Production
  • Grain Handling and Storage
  • Aircraft Hangars and Fuel Systems

Why Choose Crouse-Hinds Quality?

Crouse-Hinds explosion-proof conduit fittings provide proven reliability in the most demanding hazardous environments. With Class I, Division 1 certification and NEC/CEC compliance, these professional-grade components ensure safe and code-compliant installations in classified locations where safety and performance are critical.

Manufacturer Resources

Product Specs

Area Classification:
Hazardous/Classified Locations
Gender:
Male and female
Nec Hazardous Rating:
Class I, Division 1
Product Shape:
90° angle
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Conduit Fittings
Product Subgroup:
Conduit Fittings
Product Group:
Conduit & Raceway

Crouse-Hinds EL496 – Frequently Asked Questions

1) Is the Crouse-Hinds EL Series elbow approved for Class I Division 1 areas?
Class I, Division 1 is exactly what the EL Series elbow is rated for, which is the classification where flammable gas or vapor can be present during normal operation. It is built for hazardous/classified locations and meets NEC/CEC requirements for those installations, so it can be used in Division 1 and, since a Division 1 rating covers the less severe classification, in Division 2 areas of the same gas group as well.
2) Does the EL Series explosion-proof elbow thread male on one end and female on the other?
Yes, one male end and one female hub. That means it drops straight into a conduit run without a separate coupling, the male end threading into a box, fitting, or coupling and the female hub taking the incoming rigid or IMC. Worth knowing before you cut and thread, because an elbow with two female hubs would need a nipple where this one does not.
3) Can I use the Crouse-Hinds EL elbow on EMT?
No. The EL Series 90 degree elbow is threaded for rigid steel and IMC conduit only. EMT is a thinwall raceway that is not threaded, and it is not permitted in Class I, Division 1 anyway. If your run is EMT, the hazardous area portion has to be converted to threaded rigid or IMC before you can land this elbow.
4) Do I need a sealing fitting if I use an explosion-proof elbow in the conduit run?
The elbow itself is not a seal. An EL Series 90 degree elbow changes direction and keeps the threaded, explosion-containing integrity of the run, but conduit seals are separate fittings placed per NEC Article 501 rules, typically within 18 inches of an enclosure and at the boundary where the conduit leaves the classified area. Order the seals and sealing compound alongside the elbow; they are not included.
5) What makes an explosion-proof elbow different from a standard rigid conduit elbow?
Thread engagement and the rating behind it. A standard rigid elbow just turns the pipe. The EL Series elbow is certified for Class I, Division 1 and is built to contain an internal explosion so the flame and hot gas cool as they pass through the threads instead of igniting the atmosphere outside. In a classified area, an unrated elbow is not a code-compliant substitute no matter how the threads match up.
6) Where would a contractor actually use the Crouse-Hinds EL Series 90 degree elbow?
Classified process areas: petrochemical plants, oil and gas refineries, chemical manufacturing, paint and coating lines, pharmaceutical production, grain handling and storage, and aircraft hangars and fuel systems. Anywhere a threaded rigid or IMC run has to turn 90 degrees inside a Class I, Division 1 envelope, this is the fitting that makes the turn without breaking the rating.
