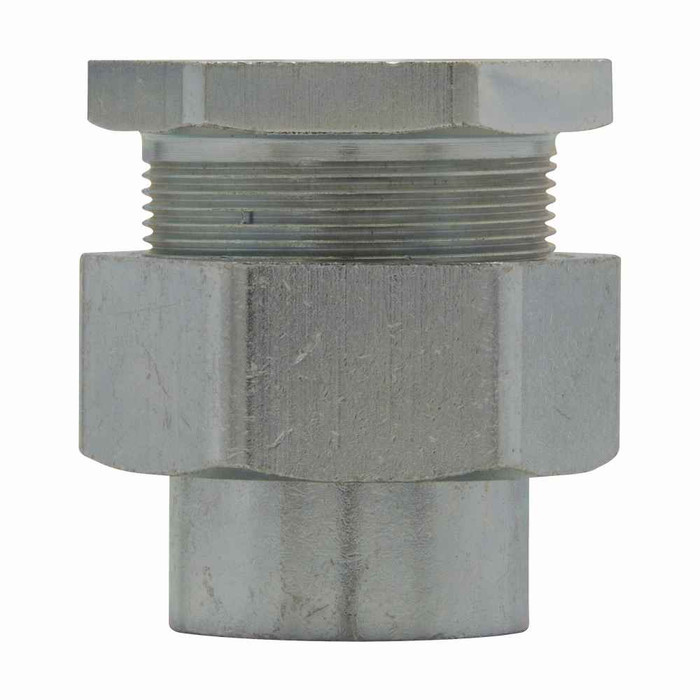

Eaton Crouse-Hinds Female Conduit Unions - Aluminum Ext Handle

Crouse-Hinds Female Conduit Union with Aluminum External Handle - Class I Division 1 Hazardous Location

(No reviews yet) Write a Review

Model: UNF605

In Stock (leaves warehouse same day if ordered before 3pm ET)

$347.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Crouse-Hinds Female Conduit Union with Aluminum External Handle

Professional hazardous location conduit connection solution

The Crouse-Hinds Female Conduit Union with Aluminum External Handle delivers reliable conduit connections for hazardous and classified locations. Engineered for rigid and IMC conduit systems, this professional-grade union features Class I Division 1 rating with Group B certification, ensuring safe operation in demanding industrial environments where explosive atmospheres may be present.

Professional Features & Benefits

  • Class I Division 1 Rating: Certified for use in hazardous locations where ignitable concentrations of flammable gases or vapors may exist under normal operating conditions.
  • Group B Certification: Specifically rated for hydrogen and other gases with similar ignition characteristics, providing enhanced safety in critical applications.
  • Female Connection Design: Engineered for secure mating with male conduit fittings, ensuring proper electrical continuity and mechanical strength.
  • Aluminum External Handle: Lightweight yet durable construction facilitates easy installation and maintenance while resisting corrosion in industrial environments.
  • Rigid/IMC Compatibility: Designed specifically for rigid metal conduit and intermediate metal conduit systems, ensuring proper fit and performance.
  • NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for safe installation and operation.

Technical Specifications

  • Area Classification: Hazardous/Classified Locations
  • Conduit Type: Rigid/IMC
  • Gender: Female
  • Nec Hazardous Rating: Class I, Division 1
  • Special Features: Group B rated
  • Standards Type: NEC/CEC

Professional Applications

  • Chemical Processing Facilities
  • Petroleum Refineries
  • Paint Spray Booths
  • Aircraft Hangars
  • Gasoline Service Stations
  • Pharmaceutical Manufacturing
  • Grain Handling Facilities

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability in hazardous location electrical systems with NEC/CEC compliant products engineered for demanding industrial applications. The aluminum construction and Group B rating demonstrate the commitment to safety and durability in critical environments where proper conduit connections are essential for personnel protection and system integrity.

Manufacturer Resources

Product Specs

Area Classification:
Hazardous/Classified Locations
Conduit Type:
Rigid/IMC
Gender:
Female
Nec Hazardous Rating:
Class I, Division 1
Special Features:
Group B rated
Standards Type:
NEC/CEC
Department:
Electrical
Product Type:
Conduit Fittings

Crouse-Hinds UNF605 – Frequently Asked Questions

1) What trade sizes does the Crouse-Hinds UNF female conduit union come in?
The UNF female conduit union is made in six trade sizes: 1/2 inch (UNF105), 3/4 inch (UNF205), 1 inch (UNF305), 1-1/4 inch (UNF405), 1-1/2 inch (UNF505) and 2 inch (UNF605). Match the trade size to the rigid or IMC conduit run you are breaking into. There is no reducing version, so both ends of the union are the same trade size.
2) Can I use a Crouse-Hinds UNF conduit union in a Class I Division 1 area?
Yes. The UNF union carries a Class I, Division 1 hazardous rating and is Group B rated, which covers hydrogen and gases with similar ignition characteristics. That is the atmosphere classification found in electrolysis rooms, battery charging areas and parts of chemical and pharmaceutical plants. It is built to NEC and CEC standards for classified locations.
3) What does the female gender on a UNF conduit union mean for how I connect it?
Both ends of the UNF union are female, so they thread onto male conduit thread. In practice you thread it onto the cut and threaded ends of your rigid or IMC run, then turn the union nut to draw the two halves together. If the run you are joining terminates in female hubs instead, a female union is the wrong part and you need male-threaded nipples between the hub and the union.
4) Will a Crouse-Hinds UNF union work on EMT?
No. The UNF union is a rigid/IMC fitting with threaded female ends. EMT is not threaded, so it will not take this union directly. To bring an EMT run into a threaded fitting you need an EMT-to-threaded coupling or adapter first, and in a Class I Division 1 area EMT is generally not the acceptable wiring method to begin with.
5) Does an explosionproof conduit union still need a seal fitting?
The union is not a seal. It maintains the integrity of the threaded raceway, but NEC sealing rules are separate: Class I Division 1 work still calls for conduit seals where the raceway enters an explosionproof enclosure and at boundary points between classified and unclassified areas. Order the union for the joint and the seal fittings separately for the seal points.
6) Why use a conduit union instead of just a coupling on a threaded run?
A standard coupling requires you to turn one of the two conduits, which you cannot do once both ends are fixed to boxes or enclosures. A union like the UNF has an external handle nut that pulls the two halves together without rotating either length of conduit. That is what lets you break into or extend an existing rigid or IMC run, and it is why unions get installed at equipment so a device can be removed later without dismantling the whole run.
7) Is a Group B rated union okay to use in a Group C or D area like a paint booth or refinery?
Yes. Group B is the more demanding hydrogen classification, and a fitting rated for it covers the less severe Group C and D atmospheres found in refineries, paint spray booths, gasoline service stations and aircraft hangars. Buying the Group B UNF lets one part number cover mixed-classification areas in a plant rather than stocking several.
8) Which part number do I order for a 3/4 inch rigid conduit union in a hazardous location?
UNF205 is the 3/4 inch size. The next sizes up are UNF305 for 1 inch and UNF405 for 1-1/4 inch. All carry the same Class I Division 1, Group B rating, so the only thing you are choosing on the order is trade size.
9) Can I use this union to disconnect equipment for maintenance without shutting down the whole conduit run?
That is the main reason it gets installed. Placing a UNF union at each piece of equipment on a rigid or IMC run means a motor, junction box or lighting fixture can be dropped out by loosening one handle nut, with no cutting or re-threading and no rotation of the fixed conduit. For an MRO department in a refinery or grain facility, unions at the equipment are what makes scheduled maintenance a one-wrench job.
10) Does the aluminum handle on the UNF union hold up in a corrosive plant environment?
The external handle is aluminum, which resists corrosion in industrial settings and keeps the fitting light enough to handle overhead. Where the atmosphere is aggressively corrosive, such as heavy chloride or salt exposure, plants often specify a coated or feraloy body instead, so check what the rest of the raceway in that area is specified as before standardizing on aluminum.
