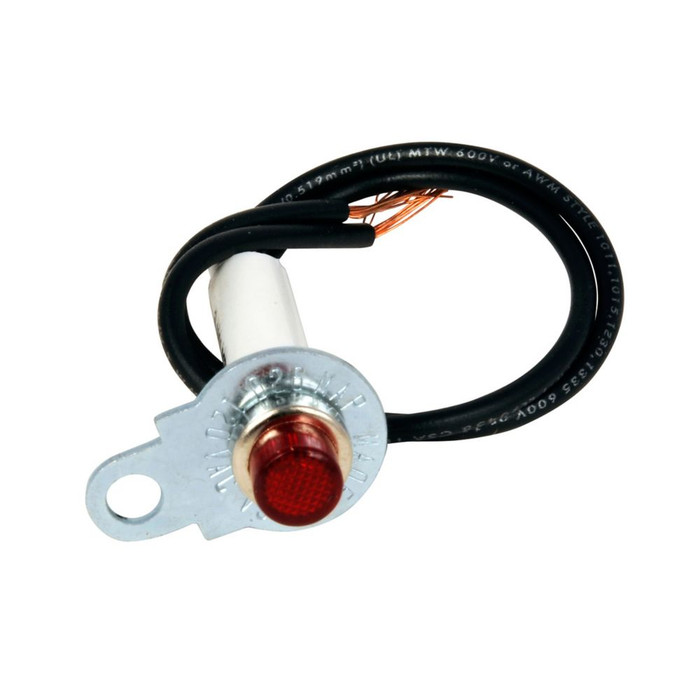

Eaton D26 Series Relay State Indicating Light, 120V
The Eaton D26 Series Relay State Indicating Light is a 120V, 50-60 Hz accessory light designed for use with D26 series relays. It mounts via an included bracket onto two to 12-pole relays and comes with two leads for quick wiring, allowing technicians to visually monitor the state of the magnet coil or relay contact operation at a glance.
Key Features
- Compact Footprint: Measures 2.1 in wide x 2.4 in deep x 3.2 in high for easy integration into control panels.
- Used With: Designed specifically for D26 series relays.
- Voltage Rating: 120V for reliable indicator operation.
- Frequency Rating: 50-60 Hz for compatibility with standard AC power systems.
- Two-Lead Connection: Provided with two leads for straightforward wiring to the relay circuit.
- Mounting Bracket Included: Bracket allows mounting on two to 12-pole relays.
- State Monitoring: May be used to monitor the state of the magnet coil or relay contact operation.
- Series: Part of the Eaton D26 relay series for consistent system compatibility.
Certifications & Compliance
- UL Listed, File E1230
Technical Specifications
- Product Width: 2.1 in
- Product Length/Depth: 2.4 in
- Product Height: 3.2 in
- Warranty: 1 year
- Voltage Rating: 120 V
- Series: D26
- Type: D26 Relay State Indicating Light
- Frequency Rating: 50-60 Hz
- Used with: D26 series relays
Typical Applications
- Industrial Control Panels
- Relay Status Monitoring
- Magnet Coil State Indication
- Multi-Pole Relay Assemblies
- Commercial and Industrial Electrical Installations
Why Eaton?
Eaton's D26 Series Relay State Indicating Light is UL Listed under File E1230, giving electrical professionals confidence in its safety and code-compliant performance. Backed by a 1-year warranty, this indicating light delivers dependable state monitoring for D26 series relay installations in industrial and commercial control systems.
Manufacturer Resources
Product Specs
- Product Width:
- 2.1 in
- Warranty:
- 1 year
- Used With:
- D26 series relays
- Voltage Rating:
- 120V
- Series:
- D26
- Product Length/Depth:
- 2.4 in
- Product Height:
- 3.2 in
- Product Type:
- Solid State Relay
- Frequency Rating:
- 50-60 Hz
- Certifications:
- UL Listed file E1230
- Department:
- Electrical
- Listing:
- UL Listed
- Product Group:
- Motor Control & Automation
- Product Subgroup:
- Contactors & Relays
- Product Weight:
- 0.1 lb
- Product Length:
- 2.4 in
Eaton D26MAP120 – Frequently Asked Questions
1) Will the Eaton D26MAP120 indicating light mount on any relay, or only Eaton D26 relays?
The D26MAP120 indicating light is built for Eaton D26 series relays only. The included bracket is sized to mount on D26 relays from two poles up to 12 poles. If your relay is from another Eaton family or another brand, this bracket will not land on it.
2) Can I run this Eaton relay indicating light on a 277V or 24V control circuit?
No. The D26MAP120 is a 120V device, rated 50-60 Hz. On a 277V or 24V control circuit you need the matching voltage version of the indicating light, not this one.
3) Will the D26 indicating light fit in my control panel next to the relay?
Allow about 2.1 in wide by 2.4 in deep by 3.2 in high for the D26 indicating light. It bolts to the relay itself through the supplied bracket, so the space you need is clearance around the relay rather than separate panel real estate.
4) Does the Eaton D26MAP120 come with the mounting bracket and wiring, or do I need to order those?
Both are in the box. The D26MAP120 ships with the mounting bracket for two to 12-pole D26 relays and two leads for wiring into the relay circuit. Nothing else is supplied, so terminations and any panel wiring are on you.
5) Can I use this light to show whether the coil is energized or whether the contacts have transferred?
Either. The D26 state indicating light can be wired to monitor the state of the magnet coil or the relay contact operation, so a technician can read the relay's condition at a glance without metering it.
6) What part number do I order for the 120V D26 relay indicating light?
Order Eaton D26MAP120. That is the 120V, 50-60 Hz state indicating light in the D26 series, one configuration with no finish or size options to specify.
