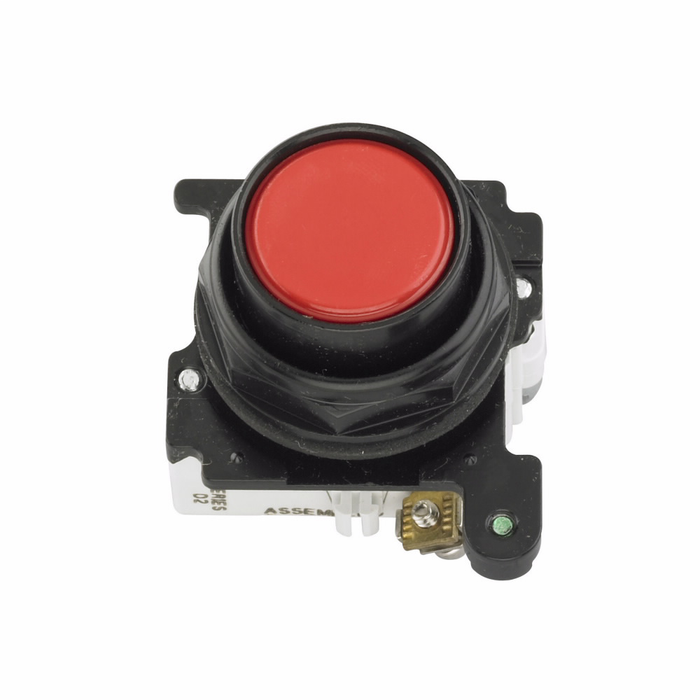

Eaton E34 Series 30.5mm Flush Pushbutton, Square Multifunction
The Eaton E34 Series Flush Pushbutton is a 30.5 mm square multifunction operator built for durable, code-compliant control in industrial and commercial panels. This non-illuminated, momentary-action pushbutton features a red plastic actuator and flush mounting, and it carries a broad NEMA 3, 3R, 4, 4X, 12, 13 rating for use across dry, wet, and washdown environments. Backed by CSA certification and CE marking, the E34 Series delivers dependable operator interface performance for demanding machine and process applications.
Key Features
- Trade Size: 30.5 mm square multifunction footprint for standard panel cutouts.
- Product Category: Flush pushbutton designed to sit level with the panel surface for a clean, low-profile installation.
- Operating Mode: Momentary action returns the actuator to its normal position when released, ideal for start/stop and jog controls.
- Actuator Construction: Plastic actuator in red for high-visibility stop, alarm, or emergency-function signaling.
- Mounting: Flush mounting style for integration into control panels and enclosure doors.
- Illumination: Non-illuminated design for straightforward, maintenance-free operation.
- Environmental Rating: NEMA 3, 3R, 4, 4X, 12, 13 rated for indoor, outdoor, washdown, and corrosion-prone locations.
- Series: Part of the Eaton E34 Series of 30.5 mm operator interface devices.
Certifications & Compliance
- CSA Certified
- CE Marked
- NEMA 3, 3R, 4, 4X, 12, 13 Rated
Technical Specifications
- Actuator Color: Red
- Warranty: 1 year
- Size: 30.5 mm
- Actuator Material: Plastic actuator
- Operating Mode: Momentary
- Mounting: Flush
- Illumination: Non-illuminated
- Nema Rating: NEMA 3, 3R, 4, 4X, 12, 13
Typical Applications
- Industrial Control Panels and Operator Stations
- Machine Start/Stop and Jog Controls
- Outdoor and Wet-Location Equipment Enclosures
- Washdown and Corrosion-Prone Processing Areas
- Manufacturing Automation Interfaces
- Panel Retrofits and New Control Panel Builds
Why Eaton?
Eaton's E34 Series pushbuttons are engineered with a durable plastic actuator and a broad NEMA 3, 3R, 4, 4X, 12, 13 rating, giving panel builders and maintenance teams a reliable operator interface for both indoor and demanding outdoor or washdown environments. With CSA certification and CE marking behind it, this flush-mount, momentary-action pushbutton is built to deliver consistent, code-compliant performance in professional electrical and industrial control applications.
Manufacturer Resources
Product Specs
- Illumination:
- Non-illuminated
- Product Width:
- 1.9 IN
- Performance Rating:
- NEMA 3, 3R, 4, 4X, 12, 13
- Product Size:
- 30.5 mm
- Product Length/Depth:
- 1.9 IN
- Actuator Color:
- Red
- Product Height:
- 2.3 IN
- Product Type:
- Pushbutton
- Warranty:
- 1 year
- Product Category:
- Flush pushbutton
- Mounting Method:
- Flush
- Series:
- E34 Series
- Operating Mode:
- Momentary
- Nema Rating:
- NEMA 3, 3R, 4, 4X, 12, 13
- Compliances:
- CE Marked
- Actuator Material:
- Plastic actuator
- Certifications:
- CSA Certified
- Department:
- Electrical
- Product Material:
- Plastic
- Product Color:
- Red
- Configuration:
- Momentary
- Trade Size:
- 30.5mm
- Standards:
- NEMA 3/3R/4/4X/12/13
- Listing:
- CSA Certified
- Product Group:
- Push Buttons
