Spec Sheet
Product Specs
- Control Characteristics:
- Power transformer
- Display:
- Meter Faceplate
- Frequency Rating:
- 60 Hz
- Input:
- 5A secondary
- Memory:
- 256000000 MB
- Meter Type:
- PXM 2000 Series
- Modification 1:
- 4 analog outputs: 4-20 mA
- Modification 2:
- Gateway card
- Nema Rating:
- NEMA 4X
- Number Of Meters:
- 1
- Power:
- 90-265 Vac/dc
- Power Supply:
- 480 Vac w/ CPT
- Department:
- Electrical
- Product Type:
- Energy meter (with integral display)
- Product Length:
- 8 IN
- Product Details:
- Energy meter (with integral display)
- Product Height:
- 9.58 IN
- Product Weight:
- 25 LB
- Product Width:
- 16.3 IN

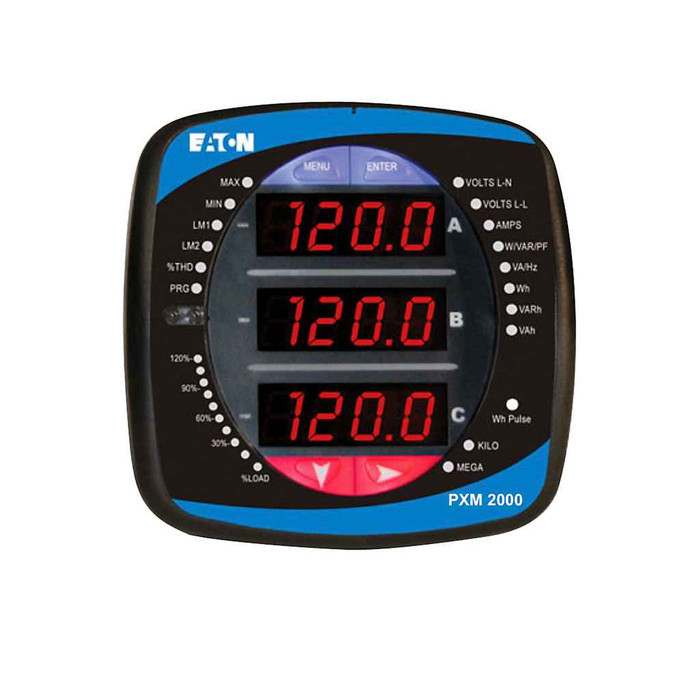

B-LINE PXM2250MA65145-4B – Frequently Asked Questions
1) Can the B-Line PXM2250MA65145-4B enclosed meter be mounted outdoors or in a washdown area?
The enclosure on the PXM2250MA65145-4B carries a NEMA 4X rating, so it is built for outdoor, wet, and corrosion-prone locations including hose-down and washdown areas. That is what makes it suitable for a pump station, rooftop, or process area rather than just a clean indoor electrical room.
2) What CT secondary does the Eaton PXM2250MA65145-4B meter accept?
It takes a 5A secondary input, so it wires to standard X/5 current transformers. Size the CT primary to your load and land the secondaries on the meter; the meter itself does not change the CT selection.
3) What control power does the PXM2250MA65145-4B enclosed meter need?
The meter itself runs on 90-265 Vac or Vdc, and this version ships with a control power transformer arrangement fed from 480 Vac. So you can tap 480 V control power at the switchgear without adding a separate CPT in the field.
4) Does this Eaton PXM 2000 series enclosed meter have Modbus or BACnet communication built in?
Communication on the PXM2250MA65145-4B is listed as None on the meter itself, but the unit is supplied with a gateway card as a factory modification. If you need a native protocol port specified on the meter, a different PXM 2000 configuration is the one to order.
5) Can I send readings from this meter to a PLC as an analog signal?
Yes. This build includes four analog outputs at 4-20 mA, so up to four measured values can be wired straight into a PLC, RTU, or chart recorder without going through a network protocol.
6) How much wall space and support do I need for the PXM2250MA65145-4B meter enclosure?
Plan for a unit measuring 9.58 x 8 x 16.3 inches and weighing 25 lb. At that weight, fasten into studs, unistrut, or masonry anchors rather than drywall anchors alone, and leave clearance for the enclosure door to swing so the faceplate stays readable.
7) Can I read the meter without opening the enclosure or connecting a laptop?
There is an integral meter faceplate display, so a technician can walk up and read values at the unit. That matters on a NEMA 4X outdoor install where you do not want to break the enclosure seal just to take a reading.
8) Will this Eaton meter work on a 50 Hz system?
It is rated 60 Hz, which covers North American service. For a 50 Hz installation, specify a meter rated for that frequency instead.
9) Does one PXM2250MA65145-4B enclosure cover more than one tenant or feeder?
No. This assembly holds a single meter, so it monitors one metering point. For submetering several tenants or feeders, you need one unit per point or a multi-meter panel.
10) What is the exact part number to quote for this Eaton enclosed power meter?
Order it as Eaton PXM2250MA65145-4B, a PXM 2000 Series energy meter supplied in a NEMA 4X enclosure with four 4-20 mA analog outputs and a gateway card. The suffix carries the enclosure and modification content, so quoting the base PXM 2250 alone will not get you this configuration.
