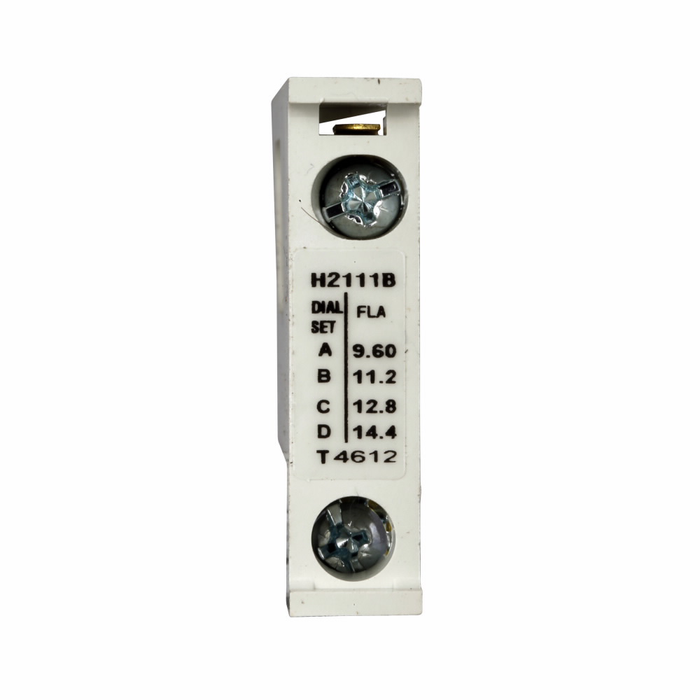

Eaton Freedom Definite Purpose Heater Pack, Fast Trip Class 10

Eaton Freedom Definite Purpose Heater Pack, Fast Trip Class 10

(No reviews yet) Write a Review

Model: H2111B-3

In Stock (leaves warehouse same day if ordered before 3pm ET)

$104.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Freedom Definite Purpose Heater Pack, Fast Trip Class 10

The Eaton Freedom Definite Purpose Heater Pack is engineered for Freedom and Definite Purpose overload relays rated at 32 or 75A, delivering Fast Trip, Class 10 overload protection for motor control applications. Built to NEMA and IEC design standards, this heater pack covers a full load current range of 11.2A, 12.8A, and 14.4A across dial positions A, B, and C respectively, giving electricians precise overload calibration for the connected motor load. It is a reliable, code-compliant component for panelboards and motor control centers where fast, accurate thermal overload response is required.

Key Features

  • Heater Pack Type: Freedom/Definite Purpose Heater Pack for use with compatible Eaton overload relays.
  • Overload Relay Compatibility: Designed for 32A or 75A overload relays.
  • Trip Type: Fast Trip, Class 10 response for rapid overload detection and motor protection.
  • Design Standard: Built to NEMA and IEC design criteria for broad application compatibility.
  • Full Load Range: 11.2A, 12.8A, and 14.4A full load amperage settings.
  • Dial Positions: Calibrated dial positions A, B, and C correspond to the 11.2A, 12.8A, and 14.4A settings respectively for accurate overload tuning.

Certifications & Compliance

  • NEMA Design Standard
  • IEC Design Standard

Technical Specifications

  • Department: Electrical

Typical Applications

  • Motor Control Centers and Starter Enclosures
  • Definite Purpose Contactor and Overload Assemblies
  • Commercial and Industrial Motor Protection Circuits
  • Panelboard and Control Panel Retrofits
  • Overload Relay Recalibration and Maintenance

Why Eaton?

Eaton Freedom and Definite Purpose heater packs are built to NEMA and IEC design standards with Fast Trip, Class 10 response, giving electrical professionals dependable, accurately calibrated overload protection for motor circuits. Choosing the correct dial position and heater pack for your overload relay helps ensure code-compliant, reliable motor control performance. Eaton's motor control and protection components are backed by the manufacturer's published selling policy warranty terms.

Manufacturer Resources

Product Specs

Product Type:
Overload Heater Element
Overload relay:
32 or 75A
Trip Type:
Fast Trip, Class 10
Product Design:
NEMA, IEC
Department:
Electrical
Series:
Freedom
Standards:
NEMA-IEC
Amperage Rating:
32 or 75A
Product Group:
Motor Control & Automation
Product Subgroup:
Overload Relays

Eaton H2111B-3 – Frequently Asked Questions

1) How do I pick the right Eaton Freedom heater pack for my motor?
Selection is by motor full load amps. The Freedom Definite Purpose heater packs come in five FLA ratings: 1.28A (H2105B-3), 2.3A (H2107B-3), 3.38A (H2108B-3), 9.6A (H2111B-3) and 18.7A (H2113B-3). Read the FLA off the motor nameplate and order the pack that matches it, then set the relay dial position for the exact calibration point you need.
2) Which Eaton overload relays do these heater packs fit?
They are made for Eaton Freedom and Definite Purpose overload relays rated 32A or 75A. If the relay in your starter is one of those two frame ratings, the heater pack drops in; a relay of any other rating takes a different pack.
3) Is this a Class 10 or Class 20 heater pack?
Fast Trip, Class 10. That means the overload is sized to trip within 10 seconds at locked rotor current, which is what you want on submersibles, hermetic compressors and other motors with low thermal tolerance. If your motor needs a longer accelerating time, a Class 10 pack will nuisance trip and you should be looking at a Class 20 element instead.
4) Does the heater pack set the trip point by itself, or do I still have to adjust something?
Both. The pack establishes the current band, and the relay's dial positions A, B and C give you three calibration points inside that band. After installing the pack, set the dial to the position matching the connected motor's full load current rather than leaving it where the last element had it.
5) Will an Eaton Freedom heater pack work in an IEC-style starter or only NEMA gear?
The Freedom Definite Purpose heater packs are built to both NEMA and IEC design standards, so they are used across NEMA starters and IEC-style motor control assemblies, as long as the host overload relay is a Freedom or Definite Purpose unit at 32A or 75A.
6) Can I use these heater packs to recalibrate an existing starter after a motor change?
That is one of their main uses. When a motor is swapped for one with a different nameplate FLA, the relay body stays and only the heater pack changes, so you pull the old element and fit the pack matching the new motor's amps. The same applies to panelboard and control panel retrofits and routine overload relay maintenance.
7) I need overload protection for a small 2 amp motor on a definite purpose contactor. Is there a pack that low?
Yes. The range starts well below that: H2105B-3 covers 1.28A and H2107B-3 covers 2.3A, with H2108B-3 at 3.38A if the nameplate reads higher. All three are Fast Trip Class 10 elements for 32A or 75A Freedom or Definite Purpose relays.
8) What is the highest motor FLA covered by the Eaton H2100 series heater packs?
The top rating here is 18.7A, part number H2113B-3. Above that you are into a different heater element, but note the pack itself mounts in relays rated 32A or 75A, so the relay frame has headroom beyond the element rating.
