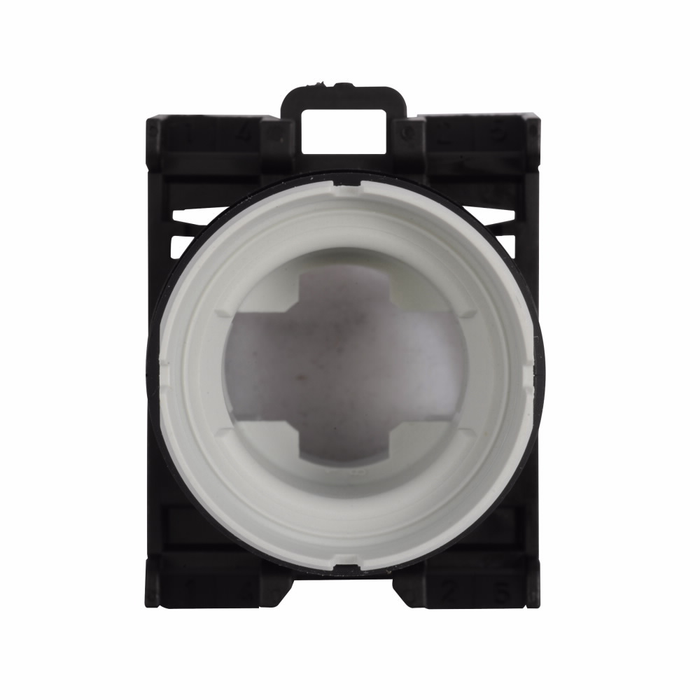

Eaton M22 Modular Illuminated Pushbutton Operator, Flush, IP66, NEMA 4X
Eaton's M22 Modular Illuminated Pushbutton Operator delivers reliable indicating-light control for industrial control panels, HMI stations, and machine interfaces. Configured with a flush actuator and a 22.5 mm mounting size, this Indicating Light Operator installs into standard M22 modular panel cutouts and includes a contact block mounting adapter for simplified assembly. Rated IP66 and NEMA 4X, it is built to withstand dust, water spray, and washdown environments, and it is rated for 100,000 hours of operation for dependable long-term performance in demanding control applications. Available in a range of lens colors to suit your indication and color-coding requirements.
Key Features
- Trade Size: 22.5 mm mounting size for direct compatibility with standard M22 modular panel cutouts.
- Flush Actuator: Low-profile flush actuator design for a clean panel appearance and reduced risk of accidental actuation.
- Illuminated Indication: Illuminated indicating light operator offered in multiple lens colors for clear, at-a-glance status visibility on control panels.
- Operating Cycles: Rated for 100,000 hours of operation, supporting long service life in continuous-duty control applications.
- Environmental Protection: IP66 and NEMA 4X rated for protection against dust, water spray, and washdown conditions.
- Simplified Assembly: Includes a contact block mounting adapter for straightforward installation onto compatible M22 contact blocks.
- M22 Series Compatibility: Part of the Eaton M22 modular pushbutton and pilot device platform for consistent, modular panel design.
Certifications & Compliance
- CCC Marked
- IP66 Rated
- NEMA 4X Rated
Technical Specifications
- Product Type: Pushbutton Operator
- Series: M22
- Type: Indicating Light
- Actuator: Flush
- Illumination: Illuminated
- Size: 22.5 mm
- Product Width: 2 in
- Product Length/Depth: 2 in
- Product Height: 1 in
- Operating Cycles: 100,000 Hours of operation
- Certifications: CCC Marked
Typical Applications
- Industrial Control Panels and Enclosures
- Machine Interface and HMI Stations
- Washdown and Wet-Location Equipment
- Manufacturing and Process Control Systems
- OEM Panel Building and Retrofit Projects
Why Eaton?
Eaton's M22 modular pushbutton platform is engineered for consistent, code-compliant performance across industrial control applications. With IP66 and NEMA 4X environmental protection, CCC marking, and a 100,000-hour operating cycle rating, this Indicating Light Operator is built for dependable, long-term service in demanding panel environments. The included contact block mounting adapter and standard 22.5 mm form factor make it a straightforward, reliable choice for professionals building or maintaining M22-based control systems.
Variant Specifications
| Color | SKU | MPN |
|---|---|---|
| Blue/Grey (M22LB, M22LX) | M22-L-B | M22LB |
| Green/White (M22LG, M22LW) | M22-L-G | M22LG |
| Yellow/Red (M22LY, M22LR) | M22-L-Y | M22LY |
Manufacturer Resources
Product Specs
- Catalog Notes:
- Includes contact block mounting adapter.
- Department:
- Electrical
- Series:
- M22
- Illumination:
- Illuminated
- Product Type:
- Pushbutton Operator
- Product Size:
- 22.5 mm
- Actuator:
- Flush
- Configuration:
- Flush Actuator
- Operating Cycles:
- 100,000 Hours of operation
- Product Group:
- Push Buttons
