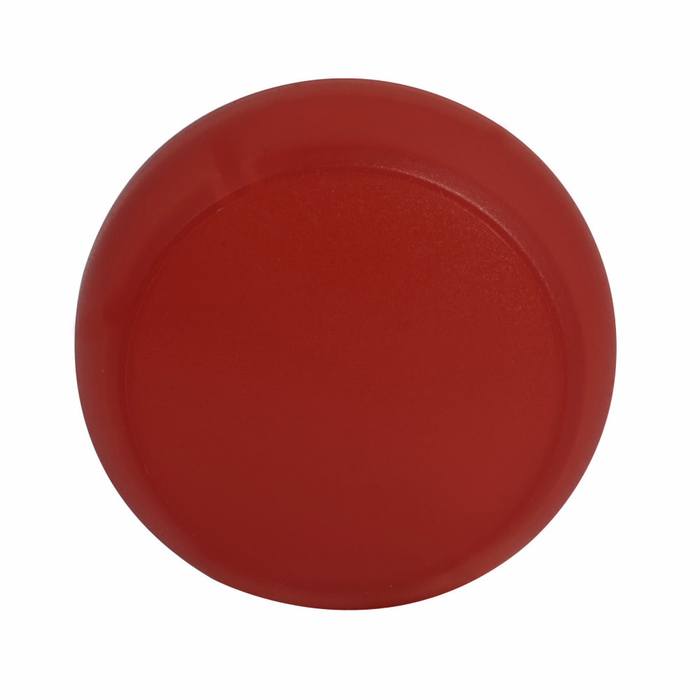

Eaton M22 Indicating Light Lens, Flush Illuminated, 22.5 mm

Eaton M22 Indicating Light Lens, Flush Illuminated, 22.5 mm

(No reviews yet) Write a Review

Model: M22-XL-R
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton M22 Indicating Light Lens, Flush Illuminated, 22.5 mm

The Eaton M22 Indicating Light Lens is a 22.5 mm button lens engineered for Eaton's M22 series of illuminated pilot devices. Featuring a flush actuator design, this indicating light lens delivers clear visual status feedback on control panels and operator stations. Rated IP67, IP69K, and NEMA 4X, it is built to withstand dust, high-pressure washdown, and demanding indoor or outdoor environments where reliable panel indication is required.

Key Features

  • Trade Size: 22.5 mm mounting size, matched to the Eaton M22 series pilot device family for consistent panel layouts.
  • Illuminated Design: Illuminated button lens provides clear, visible status indication for operators.
  • Flush Mounting: Flush actuator style creates a low-profile, panel-mount appearance with a clean finish.
  • Button Lens Type: Purpose-built lens for M22 indicating light and pushbutton assemblies.
  • Sealed Protection: IP67 and IP69K rated for resistance to dust ingress and high-pressure, high-temperature washdown.
  • Environmental Rating: NEMA 4X rated for use in wet, dusty, and corrosive locations.
  • Compact Dimensions: Product width of 1 in, depth of 1 in, and overall diameter of 29.6 mm for tight panel spacing.

Certifications & Compliance

  • IP67 Rated
  • IP69K Rated
  • NEMA 4X Rated

Technical Specifications

  • Illumination: Illuminated
  • Mounting Method: Flush
  • Size: 22.5 mm
  • Product Width: 1 in
  • Product Length/Depth: 1 in
  • Product Diameter: 29.6 mm
  • Type: Button lens
  • Series: M22

Typical Applications

  • Industrial Control Panels
  • Machine Operator Interfaces and HMI Stations
  • Panelboard and Switchgear Indicator Displays
  • Washdown and Wet-Location Equipment
  • Outdoor and Corrosive Environment Installations

Why Eaton?

Eaton's M22 series is designed for dependable, code-compliant performance in demanding industrial environments, and this indicating light lens continues that standard with IP67, IP69K, and NEMA 4X protection in a compact 22.5 mm flush-mount format. Choosing genuine Eaton M22 components helps ensure consistent fit, finish, and long-term reliability across your control panel and pilot device installations.

Manufacturer Resources

Product Specs

Illumination:
Illuminated
Product Width:
1 in
Mounting Method:
Flush
Product Size:
22.5 mm
Product Length/Depth:
1 in
Product Type:
Pushbutton Lens
Product Diameter:
29.6 mm
Catalog Notes:
Minimum order quantity of 10
Series:
M22
Actuator:
Flush
Department:
Electrical
Standards:
NEMA 4X
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton M22-XL-R – Frequently Asked Questions

1) Is the M22-XL lens a complete indicating light, or do I need more parts?
It's the lens only, not a finished pilot light. The M22-XL is the button lens for Eaton M22 illuminated pilot devices, so you still need the M22 mounting adapter, the LED element and the base rated for your control voltage behind it. Order those alongside the lens or you'll have a panel face with nothing lighting it.
2) Can I use this Eaton lens on equipment that gets pressure washed?
Yes. The M22 lens is rated IP67 and IP69K, and IP69K is the high-pressure, high-temperature washdown rating you want on food, beverage and pharma equipment. It also carries NEMA 4X, so wet, dusty and corrosive locations are in scope, indoors or out. Sealing still depends on the mounting collar being properly torqued and the panel gasket seated.
3) I'm replacing faded lenses on an existing Eaton M22 operator station. Does this match?
If the existing devices are Eaton M22 series illuminated pilot devices with flush lenses, the M22-XL is the same family part and keeps fit and finish consistent across the panel. Match the color suffix to what's in the door now: -G, -R or -Y. Mixed-brand 22 mm devices are a different story; confirm the existing units are M22 before swapping caps.
4) What colors does the Eaton M22-XL lens come in?
Three colors: green (M22-XL-G), red (M22-XL-R), and yellow (M22-XL-Y). That covers the usual run/stop/warning convention on an operator station, so you can standardize a panel on one lens family and just change the catalog suffix per function.
5) Is there a minimum order quantity on the Eaton M22 lenses?
Yes, these ship in a minimum order quantity of 10. Plan spares accordingly, or split the count across colors if you need a mix of red, green and yellow for one panel build.
6) Is the M22-XL flush or raised, and will it clear a hinged panel door?
Flush. Both the actuator style and the mounting method are flush, giving a low-profile face rather than an extended or mushroom-style cap. Overall the part is about 1 inch wide by 1 inch deep, so it sits close to the panel and won't foul a door swing or an adjacent enclosure wall.
7) Can I put this lens on a non-illuminated M22 pushbutton?
No. The M22-XL is an illuminated lens, made to sit over an LED element in an M22 indicating light or illuminated pushbutton assembly. On a non-illuminated device you want a standard M22 button cap instead, not this lens.
