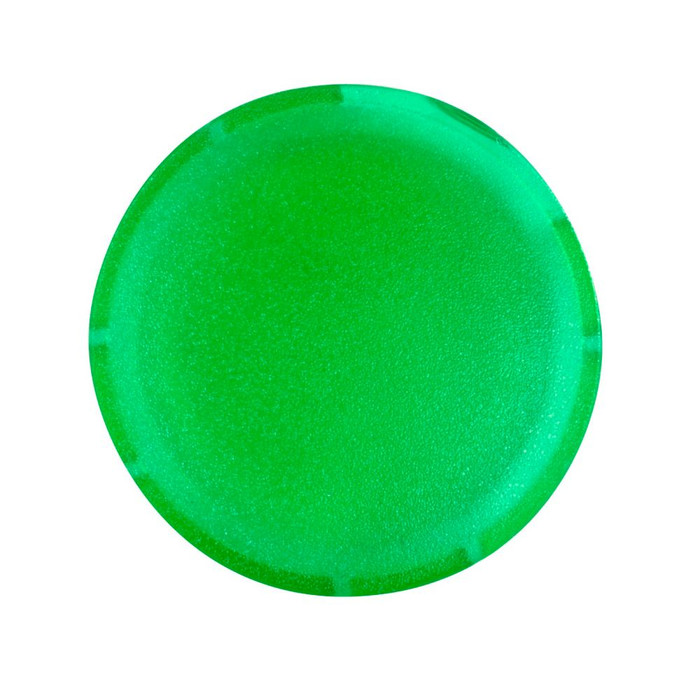

Eaton M22 22.5mm Illuminated Button Lens, Flush Actuator

Eaton M22 22.5mm Illuminated Button Lens, Flush Actuator

(No reviews yet) Write a Review

Model: M22-XDL-G-ETCH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton M22 22.5mm Illuminated Button Lens, Flush Actuator

The Eaton M22 Button Lens is a modular pilot device component engineered for the Eaton M22 series of industrial pushbuttons. This illuminated, flush-actuator lens fits the standard 22.5 mm M22 mounting cutout and is rated IP67, IP69K, NEMA 4X, and NEMA 21 for reliable operation in washdown, dusty, and corrosive environments. Finished in green with support for custom etching and inscription per the Symbols Library catalog suffix, this button lens is built for professional panel-builders who need a durable, code-compliant pilot device component. CE Marked and CCC Marked for global compliance.

Key Features

  • Trade Size: 22.5 mm mounting size, compatible with standard M22 modular pilot device cutouts.
  • Illuminated Button Lens: Button lens type supports illumination for clear visual status indication on the panel.
  • Flush Actuator: Flush-mounted actuator profile for a low-profile, panel-integrated appearance and reduced accidental activation.
  • Sealed Environmental Rating: Rated IP67, IP69K, NEMA 4X, and NEMA 21 for washdown-duty and harsh industrial environments.
  • Custom Etching & Inscription: Supports custom inscription specified per catalog number suffix from the Eaton Symbols Library.
  • Compact Footprint: 1 in width x 1 in height x 1 in depth for space-efficient panel layouts.
  • Green Button Color: Green lens color for clear visual coding on control panels.

Certifications & Compliance

  • CE Marked
  • CCC Marked
  • IP67 Rated
  • IP69K Rated
  • NEMA 4X Rated
  • NEMA 21 Rated

Technical Specifications

  • Product Type: Pushbutton Lens
  • Series: M22
  • Illumination: Illuminated
  • Actuator: Flush
  • Button Color: Green
  • Size: 22.5 mm
  • Product Width: 1 in
  • Product Height: 1 in
  • Product Length/Depth: 1 in
  • Etching Code: Custom
  • Inscription: Custom
  • Environmental Rating: IP67, IP69K, NEMA 4X, NEMA 21
  • Department: Electrical

Typical Applications

  • Industrial Control Panels and HMI Stations
  • Machine and Process Control Panels
  • Washdown and Wet-Location Equipment
  • Panel-Mount Custom-Labeled Pilot Devices
  • Manufacturing and Automation Equipment

Why Eaton?

Eaton's M22 series is built for demanding industrial environments, and this button lens carries IP67, IP69K, NEMA 4X, and NEMA 21 sealing ratings alongside CE and CCC marking for dependable, code-compliant performance. The modular M22 design lets panel builders standardize on a single pilot device platform while customizing inscription and illumination to match the application. Choose the Eaton M22 button lens for reliable, professional-grade panel control.

Manufacturer Resources

Product Specs

Illumination:
Illuminated
Product Width:
1 in
Product Size:
22.5 mm
Product Length/Depth:
1 in
Button color:
Green
Product Height:
1 in
Product Type:
Pushbutton Lens
Etching code:
Custom
Inscription:
Custom
Series:
M22
Compliances:
CE Marked
Actuator:
Flush
Environmental rating:
IP67, IP69K, NEMA 4X, NEMA 21
Certifications:
CCC Marked
Department:
Electrical
Configuration:
Flush Actuator
Listing:
CE Marked
Standards:
NEMA 4X
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton M22-XDL-G-ETCH – Frequently Asked Questions

1) Does the Eaton M22-XDL-G-ETCH button lens include the switch contacts and lamp, or is it just the lens?
M22-XDL-G-ETCH is the lens component only, a pushbutton lens in Eaton's M22 modular pilot device platform. It is the green illuminated flush actuator face that sits in the panel cutout. To build a working station you still add the M22 mounting/fixing adapter, the LED light element for the illumination, and the contact blocks behind it. Panel builders who order this alone and expect a complete illuminated pushbutton will be missing the electrical half.
2) What size panel cutout do I need for this Eaton M22 green button lens?
It drops into the standard 22.5 mm M22 pilot device cutout, which is the common 22 mm round hole used across industrial control panels. If your enclosure is already punched for M22 or another 22 mm device, no new prep is needed.
3) Can this Eaton M22 illuminated lens be used on washdown equipment in a food plant?
Yes. The green M22 button lens carries IP67, IP69K, NEMA 4X and NEMA 21 sealing, and IP69K is the high pressure, high temperature washdown rating food and beverage equipment is specified against. NEMA 4X also covers corrosion resistance, so caustic cleaning environments are within scope. The seal depends on the lens being properly mounted with its M22 fixing adapter and gasket in a correctly punched cutout.
4) What does the ETCH suffix mean on the Eaton M22-XDL-G-ETCH part number?
ETCH means the lens is supplied with custom laser etching, so the inscription is specified when you place the order rather than being a fixed stock legend. Both the etching code and inscription fields on this lens are custom, chosen from Eaton's Symbols Library suffix. You need to supply the exact text or symbol you want, for example START, RUN or a jog symbol, at order time.
5) Should I pick a flush or an extended/mushroom actuator for a green start button?
Flush is the right choice for a start or run command, which is what green normally signals. The flush profile sits level with the bezel so it resists accidental activation from a brushed sleeve or a dropped tool, and it keeps the panel face clean. Save extended and mushroom heads for functions you want to hit fast or with a gloved palm, typically stop and emergency stop in red. This lens is the flush, green, illuminated version.
6) Will this Eaton lens work on machinery being shipped to Europe or China?
It is CE Marked for the European market and CCC Marked for China, so it suits OEM panels built for export to both.
7) How much room does an M22 button lens take up on a crowded panel face?
The lens body measures 1 x 1 x 1 inch, so plan roughly a 1 inch envelope per device on the panel face and allow for depth behind it once the fixing adapter, light element and contact blocks are stacked on the back.
How fast can I get the Eaton M22-XDL-G-ETCH delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton M22-XDL-G-ETCH come with a warranty?
Absolutely. The Eaton M22-XDL-G-ETCH is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton M22-XDL-G-ETCH?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
