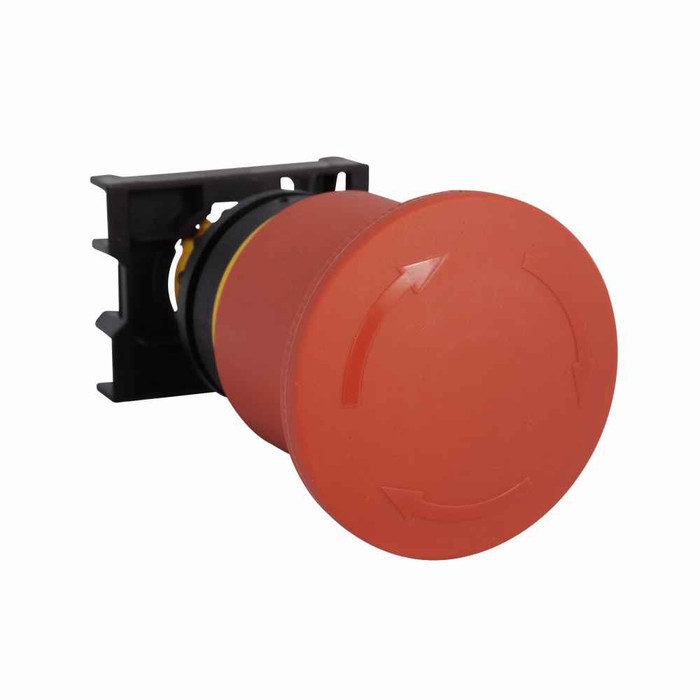

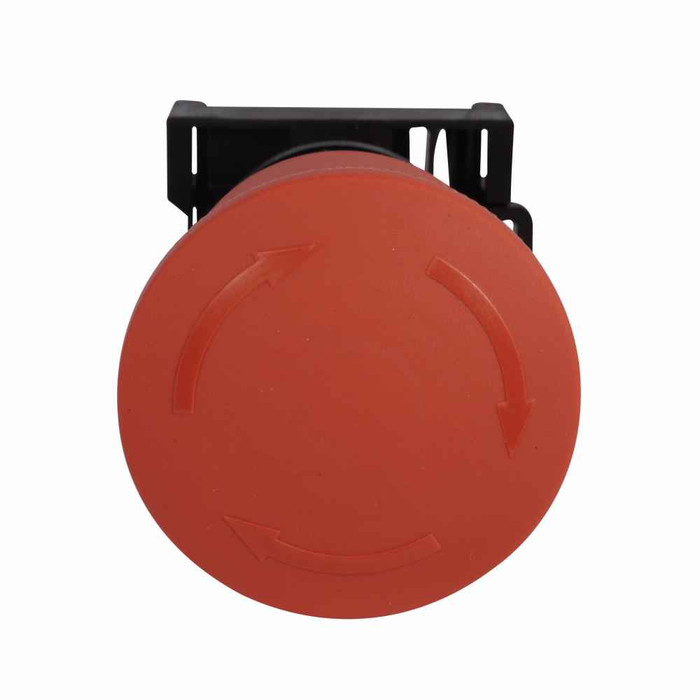

Eaton M22 Emergency Stop Operator 22.5mm with 45mm Twist-to-Release Pushbutton IP67/IP69K Rated
Professional Emergency Stop Control for Industrial Safety Applications
The Eaton M22 Emergency Stop Operator delivers reliable safety control with its robust 22.5mm modular design and 45mm twist-to-release pushbutton mechanism. This non-illuminated red button operator features superior environmental protection with IP67, IP69K, NEMA 4X, and NEMA 13 ratings, making it ideal for demanding industrial environments. Built for durability with 100,000 operating cycles and includes contact block mounting adapter for streamlined installation.
Professional Features & Benefits
- 45mm Twist-to-Release Pushbutton: Provides secure emergency stop activation with twist mechanism preventing accidental reset for enhanced safety protocols.
- IP67/IP69K Environmental Rating: Delivers superior protection against dust ingress and high-pressure water jets for reliable operation in harsh industrial conditions.
- NEMA 4X & 13 Compliance: Ensures corrosion resistance and protection against oil/coolant exposure for versatile industrial mounting applications.
- 100,000 Operating Cycles: Engineered for long-term reliability and reduced maintenance requirements in high-frequency safety applications.
- 22.5mm Modular Design: Enables flexible integration with M22 series components and standardized control panel configurations.
- CCC & CE Marked: Meets international safety standards for global industrial compliance and regulatory requirements.
- Contact Block Mounting Adapter Included: Simplifies installation process and ensures proper electrical connections for immediate deployment.
Technical Specifications
- Actuator: 45 mm pushbutton
- Actuator Function: Twist-to-release
- Button Color: Red
- Catalog Notes: Includes contact block mounting adapter.
- Certifications: CCC Marked
- Compliances: CE Marked
- Environmental Rating: IP67, IP69K, NEMA 4X, NEMA 13
- Illumination: Non-illuminated
- Operating Cycles: 100,000
- Product Details: Emergency Stop
- Product Height: 3 in
- Product Length Depth: 2.5 in
- Product Size: 22.5 mm
- Product Weight: .2 lb
- Product Width: 3.5 in
- Series: M22
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Manufacturing Equipment Emergency Stops
- Industrial Machinery Safety Controls
- Process Control Panel Integration
- Automated Production Line Safety
- Material Handling System Controls
- Food Processing Equipment Safety
- Chemical Processing Emergency Stops
Why Choose Eaton Quality?
Eaton M22 series operators provide proven reliability with CCC and CE marked certifications ensuring compliance with international safety standards. The robust environmental ratings and 100,000 operating cycle durability deliver long-term performance in demanding industrial applications, backed by Eaton's commitment to safety and quality engineering.
Manufacturer Resources
Product Specs
- Actuator:
- 45 mm pushbutton
- Actuator Function:
- Twist-to-release
- Button Color:
- Red
- Catalog Notes:
- Includes contact block mounting adapter.
- Certifications:
- CCC Marked
- Compliances:
- CE Marked
- Environmental Rating:
- IP67, IP69K, NEMA 4X, NEMA 13
- Illumination:
- Non-illuminated
- Operating Cycles:
- 100,000
- Product Details:
- Emergency Stop
- Product Height:
- 3 in
- Product Length Depth:
- 2.5 in
- Product Size:
- 22.5 mm
- Product Weight:
- .2 lb
- Product Width:
- 3.5 in
- Series:
- M22
- Department:
- Electrical
- Product Group:
- Push Buttons
- Product Type:
- Push Button
