Spec Sheet
Product Specs
- Amperage Rating:
- 20A
- Calibration:
- 50°C
- Circuit Breaker Frame Type:
- Complete breaker
- Circuit Breaker Type:
- FD
- Frame:
- F-frame
- Frequency Rating:
- 50/60 Hz
- Interrupt Rating:
- 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Number Of Poles:
- Two-pole
- Series:
- Series C
- Terminals:
- Load side
- Trip Type:
- Fixed thermal, fixed magnetic
- Voltage Rating:
- 600 Vac, 250 Vdc
- Department:
- Electrical
- Product Length:
- 3.38 IN
- Product Height:
- 6 IN
- Product Weight:
- 4.5 LB
- Product Width:
- 2.75 IN
B-LINE FD2020V – Frequently Asked Questions
1) Will the Eaton FD2020V work on a 480V three-phase panel?
The FD2020V is a two-pole F-frame breaker rated 600 Vac and 250 Vdc, so 480 Vac is within its rating. At 480 Vac its interrupting capacity is 35 kAIC; at 240 Vac it is 65 kAIC. Match that against the available fault current at your panel before you set it.
2) Is the FD2020V a complete breaker or just a trip unit?

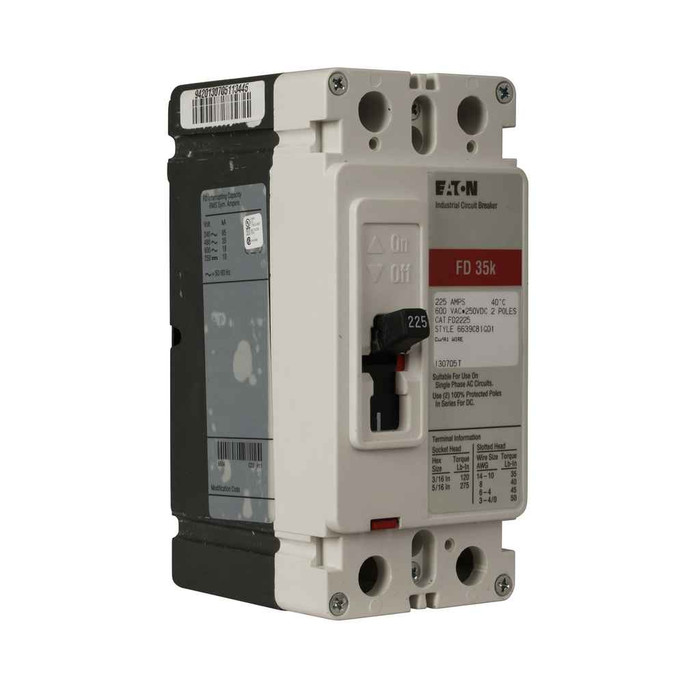

It ships as a complete molded case breaker, not a frame-only or interchangeable trip unit. The FD2020V has a fixed thermal, fixed magnetic trip at 20A, so there is nothing to adjust or add on.
3) Is the FD2020V the right replacement for an existing Eaton FD-frame 20 amp two-pole breaker?
If what you are pulling out is an Eaton Series C FD type, two-pole, 20A, this is the direct like-for-like. Confirm the old unit's interrupting rating first, since FD-frame breakers were built in several kAIC levels and this one is 65 kAIC at 240 Vac / 35 kAIC at 480 Vac. Order by the exact catalog number FD2020V.
4) Can I use the FD2020V on a DC circuit?
Yes, it carries a 250 Vdc rating alongside 600 Vac, and the AC rating covers 50/60 Hz systems. Trip is fixed thermal, fixed magnetic, so behavior is not adjustable on either supply.
5) What are the dimensions and weight of the Eaton FD2020V for panel layout?
It measures 6 x 3.38 x 2.75 inches and weighs 4.5 lb. Terminals are load side, so plan your wire bend space at that end and feed from the line side lugs of the panel bus.
6) Is there a spec sheet for the FD2020V breaker?
Eaton publishes a spec sheet for the FD2020V, and the manufacturer PDF is linked from the product description for submittal packages.
