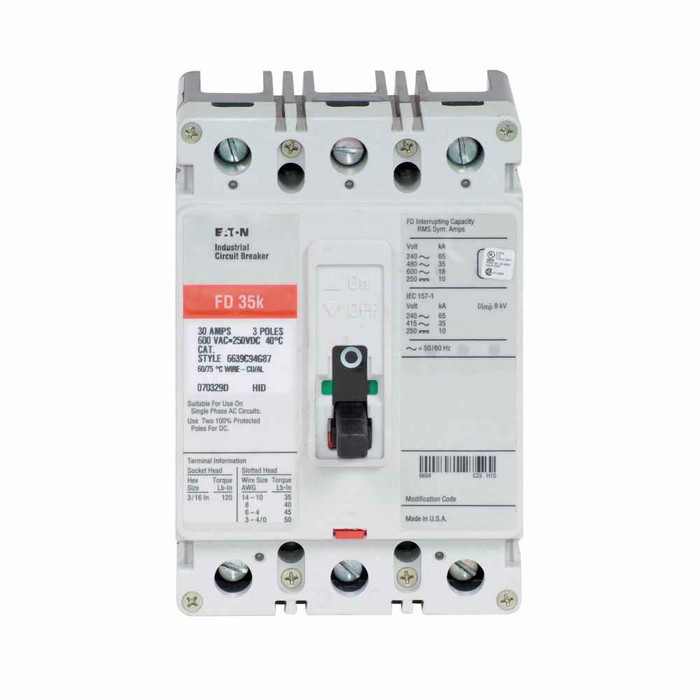

Eaton Series C F-Frame FD Molded Case Circuit Breaker, Three-Pole, 600V AC

Eaton Series C F-Frame FD Molded Case Circuit Breaker, Three-Pole, 600V AC

(No reviews yet) Write a Review

Model: FD3100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,743.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Series C Molded Case Circuit Breaker Three-Pole 600V AC Fixed Thermal Magnetic Protection

Professional electrical protection with reliable thermal magnetic trip technology

The Eaton Series C molded case circuit breaker delivers dependable electrical protection with three-pole configuration for 600V AC applications. This breaker features fixed thermal and fixed magnetic trip protection with UL Listed certification, providing professional-grade overcurrent protection in a compact F frame design suitable for commercial and industrial electrical systems.

Professional Features & Benefits

  • 600V AC Voltage Rating: Supports high-voltage applications with reliable performance across commercial and industrial systems.
  • Three-Pole Configuration: Delivers comprehensive protection for three-phase electrical systems with simultaneous trip capability.
  • Fixed Thermal Magnetic Trip: Combines thermal overload and magnetic short-circuit protection for complete overcurrent defense.
  • 35 kAIC Interrupt Rating at 480V: Provides robust fault current interruption capability for enhanced system protection.
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional installations.
  • Compact F Frame Design: Optimizes panel space utilization while maintaining full protection capabilities.

Technical Specifications

  • Certifications: UL Listed
  • Circuit Breaker Frame Type: Complete breaker
  • Frame: F
  • Frequency Rating: 50/60 Hz
  • Interrupt Rating: 35 kAIC at 480 Vac
  • Number Of Poles: Three-pole
  • Product Height: 6 in
  • Product Length Depth: 3.38 in
  • Product Weight: 4.5 lb
  • Product Width: 4.13 in
  • Series: Series C
  • Terminals: Load side
  • Trip Type: Fixed thermal, fixed magnetic
  • Voltage Rating: 600 Vac, 250 Vdc

Professional Applications

  • Commercial electrical distribution panels and switchboards
  • Industrial motor control centers and power distribution
  • Multi-unit residential electrical systems
  • Professional office building electrical infrastructure
  • Retail and hospitality facility power protection
  • Light industrial manufacturing electrical systems
  • Emergency services and critical facility protection

Why Choose Eaton Quality?

Eaton Series C circuit breakers provide proven reliability with UL Listed certification and robust construction designed for long-term performance. The fixed thermal magnetic trip technology ensures consistent protection characteristics, while the compact F frame design maximizes installation flexibility in space-constrained applications.

Variant Specifications

AmperageModelSKU
100AFD3100FD3100
150AStandardFD3150

Manufacturer Resources

Product Specs

Department:
Electrical
Series:
Series C
Product Type:
Circuit Breaker
Certifications:
UL Listed
Product Width:
4.13 in
Trip Type:
Fixed thermal, fixed magnetic
Frame:
F
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers
Product Length:
3.38 in
Product Weight:
4.5 lb
Number of Poles:
Three-pole

Eaton FD3100 – Frequently Asked Questions

1) What amp ratings does the Eaton FD-frame three-pole breaker come in?
Two ratings are offered on the Eaton Series C F-frame FD three-pole breaker: 100A as catalog number FD3100 and 150A as FD3150. Both are complete breakers with fixed thermal, fixed magnetic trip, so the trip setting is not field adjustable. Pick the amperage to match your conductor and load calculation before ordering, because there is no way to dial it in afterward.
2) Can I use an Eaton FD breaker on a 480V three-phase system?
Yes. The FD three-pole breaker is rated 600 Vac and 250 Vdc, which covers 480Y/277 and 480V delta three-phase service, plus 208 and 240V systems. Interrupting rating is 35 kAIC at 480 Vac, so confirm the available fault current at your point of installation is at or below that figure. Frequency rating is 50/60 Hz.
3) Is a 35 kAIC breaker enough for my service, or do I need a higher interrupting rating?
35 kAIC at 480 Vac is the rating on the FD three-pole breaker. Compare that to the available fault current from your utility or transformer secondary at the breaker's location. If the calculated fault current exceeds 35 kA, this breaker is not the right device and you need a higher-interrupting frame or a series-rated combination documented for the equipment. Below that figure, it is applied as a standalone device.
4) Will an FD-frame breaker fit the space I have in my panel or switchboard?
The F-frame FD breaker measures 6 in high, 4.13 in wide, and 3.38 in deep, and weighs 4.5 lb. That 4.13 in width is the number to check against your mounting pan or bus spacing, since a three-pole F frame is a single block rather than three separate poles.
5) What does fixed thermal, fixed magnetic trip mean, and should I use an adjustable breaker instead?
Fixed thermal, fixed magnetic means both the overload curve and the instantaneous short-circuit pickup are set at the factory for the breaker's amp rating and cannot be adjusted in the field. That is fine for feeders, panel mains, and general branch protection where the load is known. If you are feeding a motor and need to raise the instantaneous pickup to ride through inrush, or you need to coordinate selectively with downstream devices, look at an adjustable magnetic or electronic trip unit instead.
6) Does the Eaton FD3100 come with lugs?
Terminals are listed as load side on the Eaton Series C FD three-pole breaker. Line side terminations, panel mounting hardware, and any accessories such as auxiliary contacts, shunt trips, or handle mechanisms are separate items to specify with the order.
7) Is the Eaton Series C FD breaker UL Listed for a commercial inspection?
UL Listed, which is the listing an AHJ looks for on a molded case breaker in a commercial distribution panel, switchboard, or motor control center. No other agency marks are claimed for it.
8) Do I need a three-pole breaker or will two poles do for my load?
The FD3100 and FD3150 are three-pole breakers, meaning all three phases open together on a fault. That is what you want for three-phase motors, three-phase panels, and 480V feeders. For a single-phase 240V load, two poles is the correct device and a three-pole breaker just wastes a pole and panel width.
