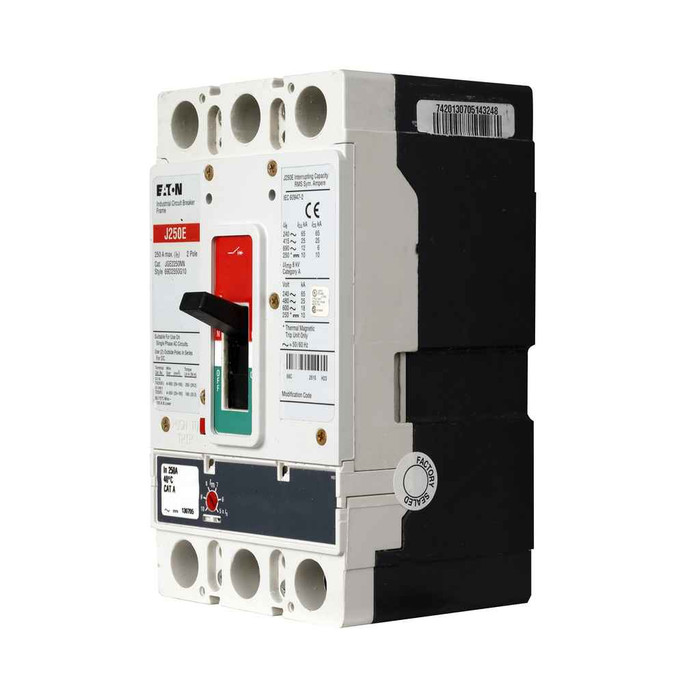

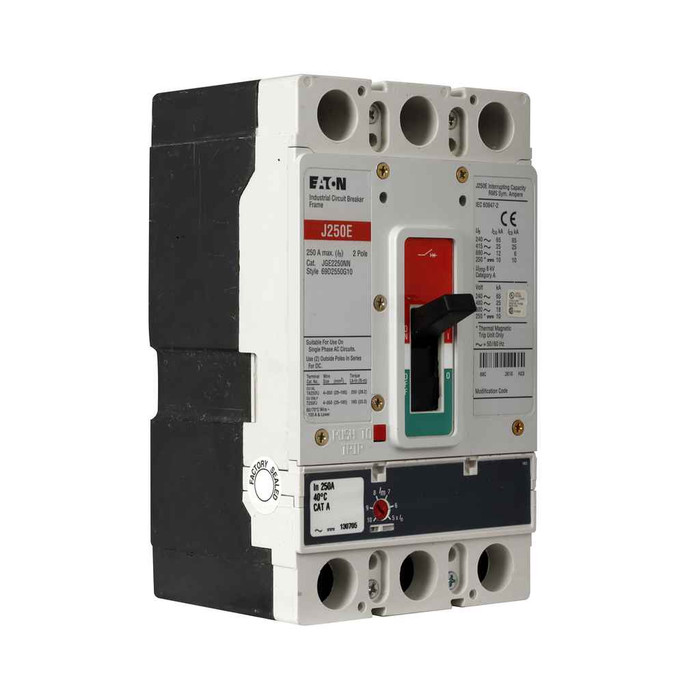

Product Specs
- Amperage Rating:
- 200A
- Circuit Breaker Type:
- JG
- Frame Size:
- JG-frame
- Frequency Rating:
- 50-60 Hz
- Interrupt Rating:
- 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 25 kAIC at 600 Vac
- Mounting Hardware:
- Metric
- Number Of Poles:
- Two-pole
- Series:
- Series G
- Terminals:
- Line and load
- Trip Type:
- Fixed thermal, adjustable magnetic
- Voltage Rating:
- 600 Vac
- Department:
- Electrical
- Product Group:
- Electrical Components
- Product Subgroup:
- Circuit Breakers
- Product Type:
- Complete breaker
- Product Length:
- 3.57 IN
- Product Details:
- Complete breaker
- Performance Rating:
- 80% rated
- Product Height:
- 4.13 IN
- Product Weight:
- 6 LB
- Product Width:
- 4.13 IN
B-LINE JGH2200FAG – Frequently Asked Questions
1) Can the JGH2200FAG be used on a 480V or 600V system?
Yes. The JGH2200FAG is rated to 600 Vac, so it covers 240V, 480V and 600V systems. What changes is the interrupting capacity: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, and 25 kAIC at 600 Vac. Match the figure for your system voltage against the available fault current on the drawing, because the 600V number is the limiting one.
2) Does the JGH2200FAG have an adjustable trip?
Partly. The trip unit is fixed thermal with adjustable magnetic, so the overload (thermal) side is set at the 200A rating and cannot be changed, while the instantaneous magnetic pickup can be dialed to suit motor inrush or transformer magnetizing current. If you need adjustable long-time and short-time settings, you are looking for an electronic trip unit instead.
3) How many poles is the JGH2200FAG, and will it work on a three-phase feeder?
It is a two-pole breaker, so it suits single-phase 240V loads or a two-wire tap off a larger system. For a three-phase, three-wire or four-wire feeder you need the three-pole version of the JG frame, not this one.
4) Does the JGH2200FAG come with lugs, or do I have to order terminals separately?
It ships as a complete breaker with both line and load terminals, so you are not buying a bare frame and hunting for connectors. Note the mounting hardware is metric, which matters if you are mixing it into an older panel built with inch hardware.
5) What size is the JGH2200FAG breaker and how much does it weigh?
The JG-frame body measures 4.13 in height, 4.13 in width and 3.57 in length, and it weighs 6 lb. Worth checking against the gutter space and the panel or enclosure cutout before you commit, since a JG frame takes considerably more room than a typical branch breaker.
6) What does the H in JGH2200FAG mean for fault current?
In the Series G JG frame, the H designates the high interrupting version. On the JGH2200FAG that works out to 100 kAIC at 240 Vac, 65 kAIC at 480 Vac and 25 kAIC at 600 Vac. If your available fault current at the panel is below the standard frame's rating you may not need the H version, but specifying it does no harm.
7) Will an Eaton Series G JG-frame breaker work on 50 Hz power?
Yes. The JGH2200FAG carries a 50-60 Hz frequency rating, so it works on 50 Hz systems as well as standard North American 60 Hz. That, combined with the metric mounting hardware, is consistent with Series G being Eaton's IEC-style global line.
