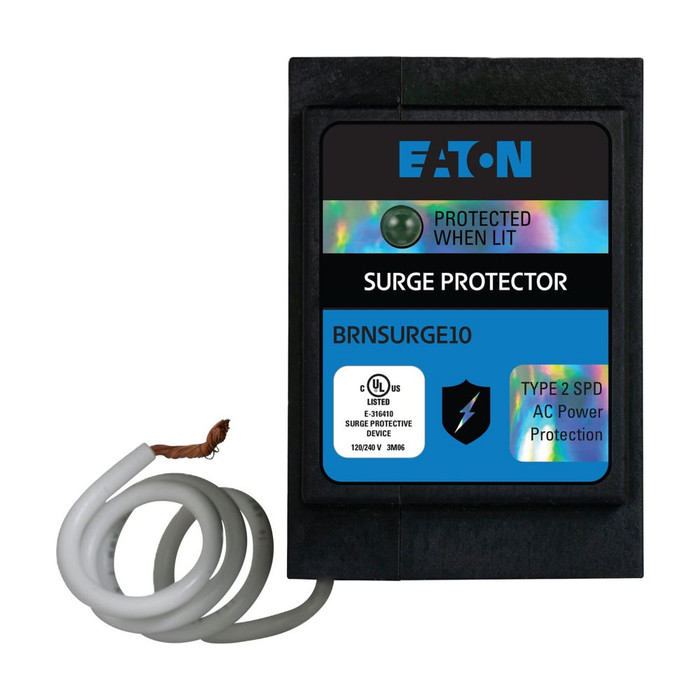

Eaton BR Series Surge Protective Device Two-Pole 10kA Circuit Breaker Mount with Pigtail Neutral

Eaton BRNSURGE10 BR Series Two-Pole 10kA Surge Protective Device

(No reviews yet) Write a Review

Model: BRNSURGE10

In Stock (leaves warehouse same day if ordered before 3pm ET)

$134.67
$124.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton BRNSURGE10 BR Series Two-Pole 10kA Surge Protective Device

The Eaton BR Series Surge Protective Device is a circuit breaker mount unit engineered to deliver reliable whole-house surge protection with a 10kA surge current rating and a two-pole configuration. Built with a pigtail neutral connection, this device installs directly into compatible BR series load centers, offering comprehensive protection against electrical surges and transient voltage spikes without requiring additional enclosure space. It is a purpose-built solution for professionals upgrading residential and commercial panels for surge protection compliance.

Key Features

  • 10kA Surge Current Rating: Provides robust protection against high-energy electrical surges and lightning-induced transients.
  • Two-Pole Configuration: Offers balanced protection across both hot conductors in single-phase applications.
  • Circuit Breaker Mount Design: Integrates seamlessly into existing BR series panels without requiring additional enclosure space.
  • Pigtail Neutral Connection: Ensures secure and reliable neutral bonding for optimal surge protection performance.
  • BR Series Compatibility: Designed specifically for Eaton BR load centers, ensuring proper fit and electrical compatibility.
  • Professional Grade Construction: Built to withstand repeated surge events while maintaining protective capabilities over time.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Residential electrical panels requiring whole-house surge protection
  • Commercial facilities with BR series load centers
  • Multi-unit properties and apartment complexes
  • Professional offices and retail establishments
  • Light industrial applications with compatible electrical systems
  • Service upgrade installations requiring surge protection compliance

Why Eaton?

Eaton surge protective devices provide dependable electrical protection with professional-grade construction designed for long-term reliability. The BR series compatibility of this two-pole, 10kA-rated unit ensures proper integration with existing electrical infrastructure while delivering consistent surge protection performance for residential and commercial applications. Its circuit breaker mount design and pigtail neutral connection simplify installation for licensed electricians working in compatible BR series load centers, making it a practical choice for both new service upgrades and retrofit surge protection projects.

Manufacturer Resources

Product Specs

Product Type:
Surge Protective Device
Series:
BR Series
Configuration:
Two-Pole
Connection Type:
Pigtail Neutral
Department:
Electrical
Product Group:
Wiring Devices

Eaton BRNSURGE10 – Frequently Asked Questions

1) Will the Eaton BRNSURGE10 fit in any load center, or only Eaton BR panels?
It mounts only in Eaton BR series load centers. The BRNSURGE10 is a circuit breaker mount surge device, so it snaps onto the bus the same way a BR breaker does. If your panel is a different bus style (Eaton CH, or another brand entirely), this one will not seat correctly and you need a device made for that bus or an externally mounted SPD.
2) How many breaker spaces does the Eaton BRNSURGE10 take up in the panel?
It's a two-pole device, so plan on two adjacent full-size breaker spaces on the bus. That's the tradeoff with a breaker-mount SPD: you give up panel spaces instead of wall space next to the enclosure, which is why it works well on retrofits where there's no room for an external unit.
3) Is a 10kA surge device enough for a house, or do I need a bigger one?
The BRNSURGE10 carries a 10kA surge current rating and is built for whole-house protection on residential and light commercial panels, including multi-unit properties, offices, and retail. For a three-phase service or a facility that wants service-entrance level capacity, a panel-mount device like this is the wrong class of product; Square D's Surgelogic line, for example, includes a 500kA 208Y/120V three-phase four-wire unit for that job.
4) Can I use the Eaton BRNSURGE10 on a three-phase panel?
No. Two-pole configuration means it protects both hot conductors of a single-phase service. For 208Y/120V three-phase four-wire distribution, you need a three-phase device such as the Square D Surgelogic 500kA unit instead.
5) Can I add surge protection to an existing BR panel without replacing the load center?
That's exactly what the BRNSURGE10 is for. It installs into an existing BR series load center as a retrofit, no new enclosure and no service change needed, which is why it shows up on service upgrades and on portfolios where a property manager is adding surge protection across a run of existing apartment panels.
6) What is the difference between the Eaton BRNSURGE10 and the Square D Surgelogic EMD25 surge protective device?
They protect at very different scales and mount very differently. The Eaton BRNSURGE10 is a two-pole, 10kA circuit breaker mount unit with a pigtail neutral that drops into a breaker space inside an Eaton BR load center, so it needs no separate enclosure. The Square D Surgelogic EMD25 is rated 500kA for 208Y/120V three-phase four-wire service, which is a three-phase distribution-level device rather than a breaker-position unit for a single-phase BR panel. Choose the BRNSURGE10 when you are adding surge protection inside an existing single-phase BR panel, and look to the three-phase Surgelogic when the service itself is 208Y/120V three-phase four-wire.
7) How does the neutral connect on the Eaton BRNSURGE10 surge protector?
Through a pigtail neutral. The device lands its two poles on the bus and you terminate the attached neutral lead on the panel's neutral bar. Keep that pigtail as short and straight as the panel allows, since lead length works against clamping performance on a surge device.
8) What is the Eaton model number for a two-pole BR panel surge protector?
BRNSURGE10. That single part number covers the two-pole, 10kA, pigtail-neutral, BR-mount configuration, so there are no finish or size options to specify when ordering.
