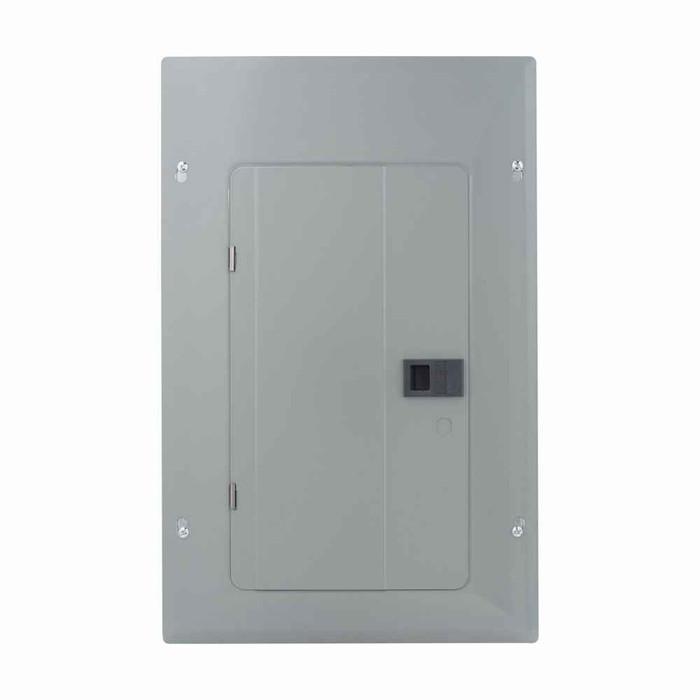

Eaton BRP-CONV Type BR Convertible Loadcenter, Single-Phase
The Eaton BRP-CONV Type BR Convertible Loadcenter delivers reliable single-phase electrical distribution for professional-grade power applications. Built with aluminum bus construction, this convertible base unit is engineered for dependable power distribution in residential and light commercial settings. It is compatible with Type BR 1-inch breakers and features a 10 kAIC interrupt rating and UL 50 certification for dependable, code-compliant installations. Available in a range of enclosures, ratings, space configurations, cover options, and ground bar options to suit your specific project requirements.
Key Features
- Convertible Design: Offers installation flexibility to adapt to various electrical service configurations and upgrade requirements.
- Aluminum Bus Construction: Provides efficient power distribution with reliable conductivity and corrosion resistance.
- Interrupt Rating: 10 kAIC interrupt rating delivers reliable fault protection and electrical safety performance.
- Voltage Rating: Rated 120/240V with two hots, neutral, and ground wiring configuration.
- Single-Phase Distribution: Engineered for dependable single-phase branch circuit management.
- Compatibility: Used with Type BR 1-inch breakers for versatile installation.
- Configurable Options: Choose from multiple enclosure types, amperage ratings, space/circuit configurations, cover styles, and ground bar options.
Certifications & Compliance
- UL 50 Certified
Technical Specifications
- Bus Material: Aluminum
- Certifications: UL 50
- Interrupt Rating: 10 kAIC
- Main Circuit Breaker: BR
- Mounting Method: Combination
- Number Of Wires: Two hots, neutral and ground
- Phase: Single-phase
- Product Details: Convertible
- Used With: Type BR 1-inch breakers
- Voltage Rating: 120/240 V
Typical Applications
- Residential Electrical Service Panels and Distribution Systems
- Light Commercial Facilities Requiring Reliable Power Distribution
- Electrical Upgrade and Renovation Projects
- Multi-Unit Residential Properties and Condominiums
- Professional Offices and Retail Establishments
- Workshop and Garage Electrical Installations
Why Eaton?
Eaton Type BR Convertible Loadcenters combine proven reliability with professional-grade construction, featuring UL 50 certification, aluminum bus construction, and a 10 kAIC interrupt rating for dependable fault protection. The convertible design and configurable options deliver long-term value for demanding electrical distribution applications across residential and light commercial projects.
Variant Specifications
| Enclosure | Main Rating | Spaces | Enclosure Option | Cover | Ground bar | SKU |
|---|---|---|---|---|---|---|
| NEMA 1 (Indoor) | 125A | 20 | Standard | Standard | Standard | BRP20N125GW |
| NEMA 3R (Outdoor) | Standard | 20 (40 circuits) | Outdoor (NEMA 3R) | Surface, NEMA 3R | Included | BRP20N125R |
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Product Type:
- Load Center
- Product Width:
- 14.31 in
- Mounting Method:
- Combination
- Cover Type:
- Cover included
- Number Of Poles:
- Single-pole
- Used With:
- Type BR 1-inch breakers
- Enclosure Material:
- Metallic
- Phase:
- Single-phase
- Bus Material:
- Aluminum
- Number Of Spaces:
- 20
- Main Circuit Breaker:
- BR
- Interrupt Rating:
- 10 kAIC
- Number Of Circuits:
- 40
- Product Group:
- Load Centers & Panel Boards
Eaton BRP20N125GW – Frequently Asked Questions
1) Will a 20-space Eaton BR loadcenter really hold 40 circuits?
Yes, with tandem breakers. The Eaton Type BR convertible loadcenter has 20 full spaces and is rated for 40 circuits, which means each space can take a Type BR 1-inch tandem to double up. Using all full-size single-pole BR breakers instead, you get 20 circuits. Local inspection rules on tandem use still govern how many you can actually land.
2) Which Eaton BR panel do I order for an outdoor meter-side install versus inside a garage?
Two enclosures cover it. BRP20N125GW is the NEMA 1 indoor version, for dry interior walls only. BRP20N125R is the NEMA 3R outdoor version with a surface NEMA 3R cover and a ground bar included, and that is the one to hang on an exterior wall or next to the meter. Both are 125A, 20-space, 40-circuit single-phase.
3) Can I use Square D Homeline or Siemens breakers in an Eaton BR loadcenter?
No. This panel takes Eaton Type BR 1-inch breakers. BR is its own interior and bus design, and other manufacturers' 1-inch breakers are not classified for it. If you are standardizing a building's spare-breaker stock, keep BR stock on hand for these panels.
4) Is a 10 kAIC rating enough for my service, or do I need a higher interrupting panel?
The BR convertible loadcenter is rated 10 kAIC at 120/240V single-phase. That covers typical residential and light commercial services fed from a utility transformer at normal distances. If the available fault current at your service point exceeds 10,000A, which can happen on short runs off a large transformer in a commercial or multi-family building, you need a higher AIC panelboard or series-rated protection upstream. Get the fault current figure from the utility before you set it.
5) What does convertible mean on an Eaton BRP loadcenter?
Convertible means the base unit ships without a factory main and can be set up as main breaker or main lug, so the same enclosure works as a service panel or as a downstream subpanel. Main breaker type is BR. That flexibility is why these get spec'd on service upgrades and renovations where the final configuration is decided in the field.
6) Will this Eaton panel fit between studs on 16-inch centers?
The enclosure is 14.31 inches wide, so it drops into a standard 16-inch on-center stud bay for flush work. Mounting method is combination, meaning it can be set flush or surface mounted. For flush installs, confirm your cover style suits the finished wall.
7) Does the Eaton BRP20N125 loadcenter come with a ground bar and cover, or do I buy those separately?
A cover is included with the loadcenter. On the NEMA 3R outdoor version, BRP20N125R, a ground bar is included as well. Breakers are always ordered separately, so budget your Type BR singles and tandems on top of the panel.
8) Can I feed three-phase power into this Eaton BR loadcenter?
No. It is a single-phase 120/240V panel wired as two hots, neutral and ground. For a 3-phase service you need a three-phase panelboard, not a BR loadcenter. Single-pole branch breakers are what the bus is arranged for, with two-pole BR breakers for 240V loads.
9) Is the bus copper or aluminum, and does that matter for a rental property panel swap?
Aluminum bus, in a metallic enclosure. Aluminum bus is standard on residential and light commercial loadcenters at this rating and is what nearly every BR panel in the field already uses, so a swap on a rental or multi-family unit matches what is there. Torque your breaker and lug connections to the printed values, which matters more on aluminum than anything else about the material.
