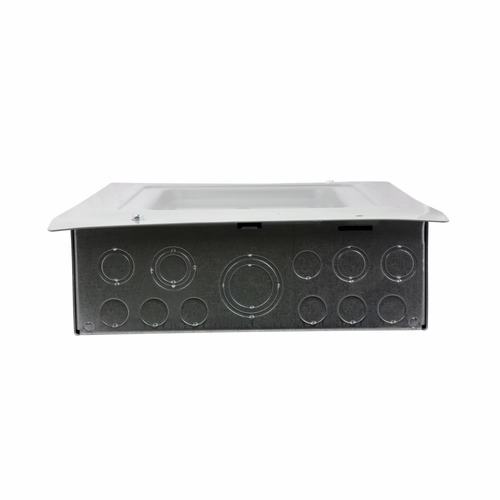

Eaton Type BR Main Lug Loadcenter 125A 6/12 Circuit Single-Phase

Eaton Type BR Main Lug Loadcenter 125A 6/12 Circuit Single-Phase

(No reviews yet) Write a Review

Model: BR612L125RP
$90.65

In Stock (leaves warehouse same day if ordered before 3pm ET)

$90.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Type BR Loadcenter — Single-Phase 120/240V NEMA-Rated Electrical Panel

Professional electrical distribution for residential and commercial applications

The Eaton Type BR Loadcenter delivers reliable single-phase 120/240V electrical distribution built around durable aluminum bus construction. Available in a range of trim types, enclosure options, space and circuit counts, and configurations, this loadcenter offers versatile installation flexibility for a wide variety of branch circuit management needs. UL 67 certified for professional electrical distribution requirements.

Professional Features & Benefits

  • Flexible Space & Circuit Options: Offered in multiple space and circuit capacities to match residential and light commercial distribution needs
  • Multiple Enclosure Options: Durable construction protects electrical components for the intended installation environment
  • Multiple Configuration Types: Available in configurations to suit a variety of service and distribution applications
  • Aluminum Bus Material: Reliable conductivity with corrosion resistance for long-term performance
  • 10 kAIC Interrupt Rating: Handles fault currents safely for enhanced electrical system protection
  • UL 67 Certification: Meets rigorous safety standards for professional electrical installations
  • Type BR Compatibility: Designed for seamless integration with Eaton Type BR circuit breakers

Technical Specifications

  • Bus Material: Aluminum
  • Catalog Notes: Gbk5 and gbk520 ground bars
  • Certifications: UL 67
  • Interrupt Rating: 10 kAIC
  • Main Circuit Breaker: BR
  • Number Of Wires: 3
  • Phase: Single-phase
  • Voltage Rating: 120/240V
  • Wire Size: #14-1 AWG Cu/Al

Professional Applications

  • Residential electrical distribution and branch circuit management
  • Small commercial facilities requiring reliable power distribution
  • Multi-unit residential properties and apartment buildings
  • Professional offices and retail establishments
  • Light industrial applications with moderate electrical loads
  • Electrical panel upgrades and system expansions

Why Choose Eaton Quality?

Eaton Type BR loadcenters provide dependable electrical distribution with UL 67 certification and robust construction. The aluminum bus design and 10 kAIC interrupt rating ensure reliable performance in demanding electrical applications, backed by Eaton's commitment to professional-grade electrical solutions.

Variant Specifications

Trim TypeEnclosure OptionNumber os SpacesMaximum CircuitsConfiguration TypeSKU
Surface/Flush (RP/SP/FGP/FDGP)Indoor612StandardBR612L125FDGP
Surface/Flush (RP/SP/FGP/FDGP)Outdoor612StandardBR612L125RP
Semi-Flush Door (SDP/SDGP)Standard6StandardGround bar GBK10 is installedBR612L125SDGP
Semi-Flush Door (SDP/SDGP)Standard6StandardGround bar kits priced separatelyBR612L125SDP
Surface/Flush (RP/SP/FGP/FDGP)Indoor816StandardBR816L125FGP
Surface/Flush (RP/SP/FGP/FDGP)Outdoor816StandardBR816L125RP

Manufacturer Resources

Product Specs

Enclosure Material:
Metallic
Phase:
Single-phase
Catalog Notes:
Gbk5 and gbk520 ground bars
Product Length Depth:
3.56 in
Bus Material:
Aluminum
Department:
Electrical
Product Group:
Load Centers & Panel Boards
Product Type:
Load Center
Main Circuit Breaker:
BR
Product Details:
Main lug
Product Width:
11 in
Voltage Rating:
120/240V
Interrupt Rating:
10 kAIC
Amperage Rating:
125 A
Product Height:
13 in
Wire Size:
#14-1 AWG Cu/Al
Number Of Wires:
3

Eaton BR612L125RP – Frequently Asked Questions

1) Will Eaton BR breakers from my other panels fit an Eaton BR612L125 loadcenter?
Yes. The BR612L125 loadcenter is built for Eaton Type BR breakers, so anything you already stock for other BR panels drops straight in. That is the practical reason to stay on BR across a building: one breaker inventory covers every panel. Note this is a main lug panel, so there is no main breaker in the can, and BR breakers here are branch devices fed from an upstream disconnect or main.
2) Is the Eaton BR612L125 a main breaker panel or main lug only?
Main lug only. There is no main breaker inside, so the 125 A rating is the bus and lug rating, not an overcurrent device. That means it has to be fed from an upstream overcurrent protective device sized for the feeder, which is how you would use it as a subpanel off an existing service. If you need the disconnect at the panel itself, you need a main breaker loadcenter instead, not this one.
3) Can an Eaton BR612L125 loadcenter be mounted outside?
Depends on which enclosure you order. The BR612L125RP is the outdoor version of the 6 space / 12 circuit panel, and BR816L125RP is the outdoor 8 space / 16 circuit. The BR612L125FDGP and BR816L125FGP are indoor. Same bus, same 125 A rating, same BR breaker compatibility, different can. Ordering an indoor trim for a wall exposed to weather is the most common mistake on this panel.
4) Does the Eaton BR612L125 come with a ground bar or do I have to buy one?
It depends on the catalog number. The BR612L125SDGP ships with the GBK10 ground bar already installed. The BR612L125SDP does not, and the ground bar kit is ordered separately. Eaton's GBK5 and GBK520 ground bars are the ones noted for these panels. If you are feeding this as a subpanel you need that separate ground bar anyway to keep grounds and neutrals isolated, so order it with the panel if you pick the SDP.
5) Can I get 12 circuits out of a 6 space Eaton BR panel?
Yes, with tandem breakers. The 6 space version accepts up to 12 circuits, and the 8 space version up to 16, because Type BR tandems put two circuits in one space. If you fill it with full size single pole and two pole breakers instead, you get 6 or 8 circuits. Plan the count on how many two pole loads you have, since a 240 V circuit eats two spaces and cannot be tandemed.
6) How much wall space do I need for a 6 space Eaton BR loadcenter?
The can measures 13 x 11 x 3.56 inches. The 3.56 inch depth is the number that matters when you are recessing it into a 2x4 stud bay, since a standard stud cavity gives you 3-1/2 inches of depth and you need the trim to sit flush against the finished wall. For surface mount in a closet or utility space, plan the 13 by 11 footprint plus NEC working clearance in front.
7) Will the Eaton BR612L125 work on 120/240V single phase residential service?
That is exactly what it is built for: 120/240 V, single phase, 3 wire. Three wire means two hots and a neutral, giving you 120 V line to neutral for lighting and receptacles and 240 V line to line for a water heater, dryer, or mini split. It will not serve a three phase panel or a 208Y/120 three phase system.
8) What is the difference between the surface/flush trim and the semi-flush door trim on the Eaton BR612L125?
Two different covers over the same 6 space chassis. The surface/flush trims (BR612L125FDGP indoor, BR612L125RP outdoor) are the RP/SP/FGP/FDGP style used on surface mounted or flush mounted installs. The semi-flush door versions (BR612L125SDGP and BR612L125SDP) carry a hinged door over the trim, which is what you want in a finished hallway, apartment entry, or anywhere a tenant sees the panel. For a mechanical room or a garage wall, the surface trim is the simpler pick.
