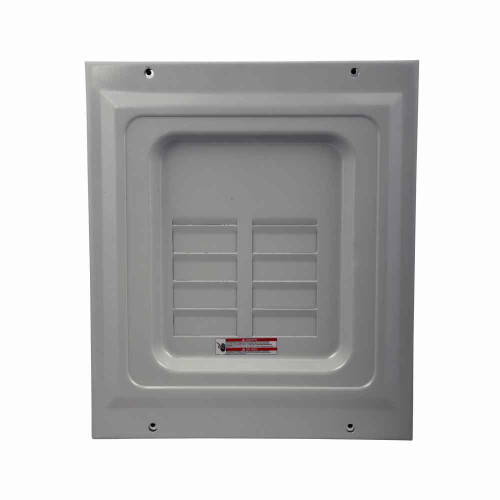

Name: Eaton Type BR Main Lug Loadcenter Single-Phase Small Space
Brand: Eaton
SKU: BR24L70SP
Price: 52.43 USD
Availability: InStock

Product Overview
FAQs

Eaton Type BR Loadcenter Single-Phase Electrical Panel

Reliable electrical distribution for residential and light commercial applications

The Eaton Type BR Loadcenter delivers dependable single-phase 120/240V electrical distribution in a range of configurations to suit diverse installation requirements. This loadcenter features aluminum bus construction and accommodates Type BR 1-inch breakers for versatile circuit protection. Available in multiple amperage ratings, enclosure options, space and circuit capacities, box sizes, trim types, and configuration types, this listing provides professional-grade power distribution to match a wide variety of project needs.

Professional Features & Benefits

Single-Phase 120/240V: Standard voltage configuration ensures compatibility with common electrical systems and appliances
Durable Enclosure Construction: Available enclosure options provide reliable protection and long-term performance across a variety of environments
10 kAIC Interrupt Rating: Offers robust fault current protection for enhanced electrical safety
Aluminum Bus Material: Lightweight yet conductive bus system ensures efficient power distribution
Type BR Breaker Compatibility: Works with standard Type BR 1-inch breakers for flexible circuit configuration
Versatile Sizing: Multiple amperage ratings, space and circuit capacities, and box sizes maximize installation flexibility

Technical Specifications

Bus Material: Aluminum
Interrupt Rating: 10 kAIC
Main Circuit Breaker: BR
Phase: Single-phase
Used With: Type BR 1-inch breakers
Voltage Rating: 120/240 V
Wire Size: #8-2 AWG Cu/Al

Professional Applications

Residential electrical distribution and circuit protection
Small commercial facilities requiring compact power distribution
Renovation projects with space constraints
Apartment and condominium electrical systems
Light industrial applications
Professional offices and retail establishments
Service upgrades in existing buildings

Why Choose Eaton Quality?

Eaton loadcenters provide dependable electrical distribution with proven enclosure construction and a 10 kAIC interrupt rating for enhanced safety. The aluminum bus system and Type BR breaker compatibility ensure long-term reliability and flexible circuit configuration options for professional electrical installations.

Variant Specifications

Amperage	Enclosure Option	Number os Spaces	Maximum Circuits	Trim Type	Box Size Option Option	Configuration Type	SKU
125A	Indoor	2	4	Flush (no door)	Standard	Standard	BR24L125FP
125A	Indoor	2	4	6R	Standard	Standard	BR24L125RSEP
125A	Indoor	2	4	Surface (no door)	Standard	Standard	BR24L125SP
70A	Indoor	Standard	Standard	Flush (no door)	5	Ground bar GBK5 is installed	BR24L70FGP
70A	Indoor	Standard	Standard	Flush (no door)	5	Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters.	BR24L70FP
70A	Outdoor	Standard	Standard	5R	5R	Stardart	BR24L70RP
70A	Indoor	Standard	Standard	Surface (no door)	5	Ground bar GBK5 is installed	BR24L70SGP
70A	Indoor	Standard	Standard	Surface (no door)	5	Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters.	BR24L70SP
125A	Indoor	4	8	Flush (with door)	Standard	Standard	BR48L125FDP
125A	Indoor	4	8	Flush (no door)	Standard	Standard	BR48L125FGP
125A	Outdoor	4	8	6R	Standard	Standard	BRC48L125RP

Manufacturer Resources

Product Specs

Enclosure Material:: Metallic
Phase:: Single-phase
Bus Material:: Aluminum
Department:: Electrical
Product Type:: Load Center
Main Circuit Breaker:: BR
Interrupt Rating:: 10 kAIC
Used With:: Type BR 1-inch breakers
Product Group:: Load Centers & Panel Boards
Product Details:: Main lug

Eaton BR24L70SP – Frequently Asked Questions

1) Is the Eaton Type BR loadcenter a main breaker or main lug panel?

Main lug. The Eaton Type BR loadcenter has no main breaker inside it, so the feeder lands directly on the lugs and overcurrent protection has to come from upstream, typically the breaker in the panel feeding it. That makes it a subpanel or feeder panel, not a service entrance panel. If you need a disconnect at the panel itself, a main lug unit is the wrong choice.

2) What breakers fit an Eaton BR loadcenter, and will Square D or Siemens breakers work in it?

Type BR 1-inch breakers are what this Eaton loadcenter takes. Square D QO, Homeline and Siemens breakers use different mounting and are not the breaker this panel is built around. If you are standardizing a building on one breaker stock, BR is the line to buy. The 1-inch width is also why the space count and the maximum circuit count differ, since tandem breakers double up in a single space.

3) Can the Eaton BR main lug loadcenter be mounted outside?

Yes, in the outdoor version. The Eaton BR loadcenter comes in both indoor and outdoor enclosure builds, and the outdoor ones carry rainproof trims (5R and 6R). An indoor unit with a flush or surface trim and no door has no weather protection and belongs inside a conditioned or dry space only.

4) What is the difference between flush and surface trim on a loadcenter, and which one do I order?

Flush trim is for a panel recessed into the wall cavity, where the trim covers the drywall opening. Surface trim is for a panel hung on the face of the wall, typical in a garage, mechanical room or block wall where you cannot bury the box. The Eaton BR is offered flush without a door, flush with a door, and surface without a door. Get this wrong and the trim will not close against the wall. Where the panel is in finished occupied space, the flush-with-door build is the one that looks finished.

5) How many circuits does the Eaton BR small space loadcenter hold?

The small builds run 2 spaces with a 4-circuit maximum and 4 spaces with an 8-circuit maximum. The circuit count is higher than the space count because Type BR tandem breakers put two poles in one 1-inch space. Count your actual poles, not your breakers, before you size it.

6) Should I order the 70A or 125A Eaton BR loadcenter?

Two ampere ratings are offered, 70A and 125A. The rating is the maximum the bus and lugs will carry, so it has to be at or above the upstream breaker protecting the feeder. A 70A panel fed by a 100A breaker is a code problem. For a small subpanel off a lighting or appliance feeder, 70A is usually enough; for a garage, shop or an apartment subpanel carrying several 240V loads, take the 125A.

7) Does the Eaton BR loadcenter come with a ground bar, or do I have to buy one?

It depends on the build. Some are supplied with the GBK5 ground bar already installed; others ship without one, and the ground bars mount to the left side wall of the enclosure on the 4/8, 6/12 and 8/16 circuit loadcenters. On a subpanel you need a separate ground bar anyway, because grounds and neutrals have to stay isolated downstream of the service. Order the ground-bar-installed build or add a GBK5 to the order.

8) What wire size will the lugs on the Eaton BR loadcenter accept?

The lugs take #8 through #2 AWG, copper or aluminum. That covers the usual feeder range for a 70A or 125A subpanel. If your feeder is larger than #2, it will not land in these lugs and you need a bigger panel or a tap arrangement.

9) Will an Eaton BR loadcenter run 240V circuits like a dryer or a mini split?

Yes. It is a single-phase 120/240V panel, so both legs are present and a two-pole BR breaker gives you 240V for a dryer, water heater, mini split or subfeed. It is not a three-phase panel, so it will not serve a three-phase motor or commercial three-phase equipment.

10) Can I use this small Eaton panel as a subpanel for an apartment or a tenant space?

That is the usual application. A main lug BR panel fed from the building's service or house panel gives a tenant space, condo unit or small office its own local distribution, with the feeder breaker upstream serving as the disconnect. For a property manager standardizing across units, keeping every unit on Type BR 1-inch breakers means one breaker stock covers the whole building.

11) Is the bus in the Eaton BR loadcenter copper or aluminum?

Aluminum bus. It is what Eaton uses across the BR line for these ratings, and it is fine for the 70A and 125A duty these panels are rated at. Where a spec or a facility standard calls out copper bus specifically, this is not the panel that meets it. The enclosure itself is metallic.
