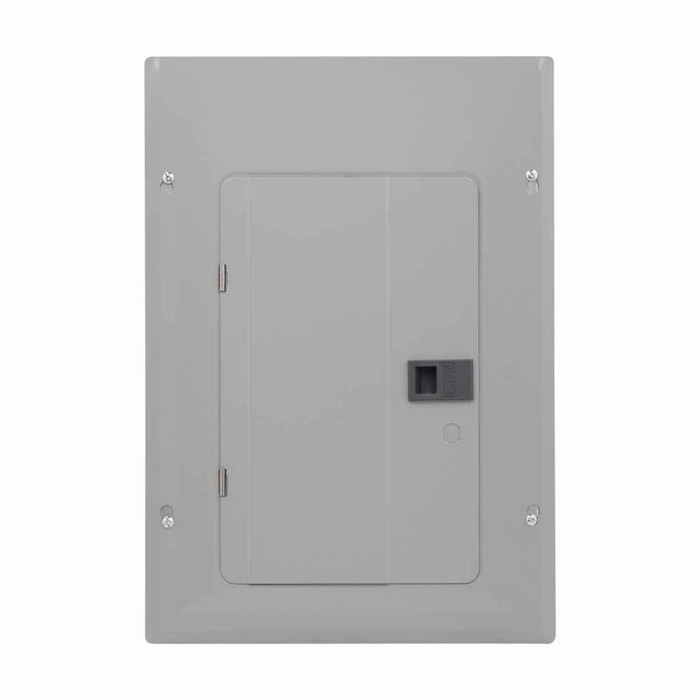

Eaton Type BR Single-Phase Main Lug Loadcenter 125A 20-Space 40-Circuit Metallic Enclosure

Eaton Type BR Single-Phase Main Lug Loadcenter 125A 20-Space 40-Circuit Metallic Enclosure

Professional electrical distribution for residential and commercial applications

The Eaton Type BR Single-Phase Main Lug Loadcenter delivers reliable 125A electrical distribution with professional-grade construction. This main lug only (MLO) loadcenter features a durable metallic enclosure with aluminum bus material and accommodates 20 spaces for 40 circuits using Type BR 1-inch breakers. Rated for 120/240V single-phase applications with 10 kAIC interrupt rating, this loadcenter provides dependable power distribution for various electrical installations.

Professional Features & Benefits

• 125A Service Rating: Provides substantial electrical capacity for residential and light commercial applications requiring reliable power distribution.
• 20-Space 40-Circuit Configuration: Accommodates extensive branch circuit requirements with flexible installation options for comprehensive electrical systems.
• Metallic Enclosure Construction: Ensures durability and protection against environmental factors while meeting professional installation standards.
• Aluminum Bus Material: Delivers efficient electrical conductivity with corrosion resistance for long-term reliable performance.
• 10 kAIC Interrupt Rating: Provides adequate fault current protection for typical residential and commercial electrical applications.
• Type BR Breaker Compatibility: Works exclusively with Type BR 1-inch breakers for consistent performance and proper fit.
• Main Lug Only Design: Offers flexible installation options when used with upstream overcurrent protection devices.

Technical Specifications

• Amperage Rating: 125 A
• Box Size: X2
• Bus Material: Aluminum
• Cover Type: Cover included
• Enclosure Material: Metallic
• Interrupt Rating: 10 kAIC
• Number Of Circuits: 40
• Number Of Poles: Single-pole
• Number Of Spaces: 20
• Phase: Single-phase
• Product Details: MLO
• Product Height: 3.88 in
• Product Width: 14.31 in
• Used With: Type BR 1-inch breakers
• Voltage Rating: 120/240V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service upgrades and new construction projects
• Small commercial facilities requiring reliable power distribution
• Multi-unit residential properties and apartment complexes
• Professional offices and retail establishments
• Light industrial applications with moderate electrical demands
• Electrical contractor installations requiring dependable loadcenters

Why Choose Eaton Quality?

Eaton Type BR loadcenters provide proven reliability with professional-grade metallic construction and aluminum bus design. The included cover and 10 kAIC interrupt rating ensure dependable performance for demanding electrical distribution applications, backed by Eaton's commitment to electrical safety and durability.
