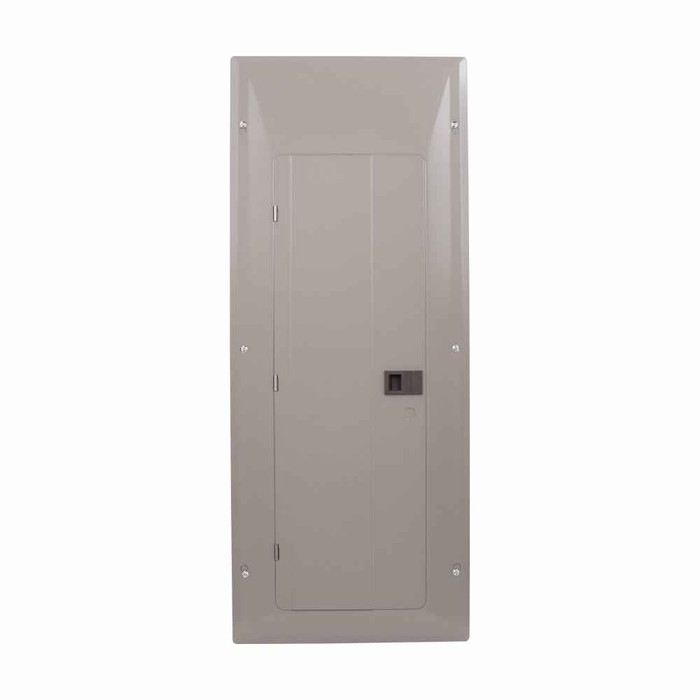

Eaton Type CH main breaker loadcenters - 200A

Eaton Type CH Main Breaker Load Center - 200A Single-Phase 120/240V with Copper Bus

(No reviews yet) Write a Review

Model: CHP24B200X5
$1,000.00
$666.70

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
$666.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Type CH Main Breaker Load Center

Professional electrical distribution for residential and commercial applications

The Eaton Type CH Main Breaker Load Center delivers reliable 200A single-phase electrical distribution with professional-grade copper bus construction and metallic enclosure. Designed for overhead feed applications, this load center features an integrated CSR main circuit breaker and accommodates single-pole branch circuits for versatile power distribution in 120/240V systems.

Professional Features & Benefits

  • 200A Service Rating: Provides substantial electrical capacity for demanding residential and light commercial applications with reliable power distribution.
  • Copper Bus Construction: Ensures superior conductivity and long-term reliability with excellent corrosion resistance and thermal performance.
  • Metallic Enclosure: Delivers robust protection and durability with professional-grade construction suitable for various installation environments.
  • CSR Main Circuit Breaker: Integrated main breaker provides comprehensive overcurrent protection and convenient service disconnect capability.
  • Single-Phase 120/240V: Compatible with standard residential and commercial voltage systems for versatile application flexibility.
  • Overhead Feed Design: Optimized for overhead service entrance applications with proper conductor routing and connection accessibility.
  • 14.31" Width: Compact profile allows efficient installation in standard electrical spaces while maintaining proper clearances.

Technical Specifications

  • Amperage Rating: 200 A
  • Bus Material: Copper
  • Enclosure Material: Metallic
  • Feed Type: Overhead
  • Main Circuit Breaker: CSR
  • Number Of Poles: Single-pole
  • Phase: Single-phase
  • Product Details: Main breaker
  • Product Width: 14.31 in
  • Voltage Rating: 120/240 V

Professional Applications

  • Residential Service Entrance Panels
  • Light Commercial Electrical Distribution
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Service Establishments
  • Electrical System Upgrades and Renovations

Why Choose Eaton Quality?

Eaton Type CH load centers represent proven reliability in electrical distribution with professional-grade copper bus construction and robust metallic enclosures. The integrated CSR main breaker design provides comprehensive protection while the compact 14.31" width enables efficient installation in various applications requiring dependable 200A single-phase power distribution.

Manufacturer Resources

Product Specs

Amperage Rating:
200 A
Bus Material:
Copper
Enclosure Material:
Metallic
Feed Type:
Overhead
Main Circuit Breaker:
CSR
Number Of Poles:
Single-pole
Phase:
Single-phase
Product Details:
Main breaker
Product Width:
14.31 in
Voltage Rating:
120/240 V
Department:
Electrical
Product Type:
Load Center
Product Group:
Power Distribution
Product Subgroup:
Panelboards & Load Centers

Eaton CHP24B200X5 – Frequently Asked Questions

1) Is this Eaton 200A panel single-phase or three-phase, and what voltage?
Single-phase, 120/240V. That is standard residential and light commercial service in North America: two hot legs and a neutral, giving 120V line to neutral for receptacles and lighting and 240V line to line for ranges, dryers, water heaters and condensers. If you are feeding 208Y/120 three-phase in a commercial building, this is the wrong device and you want a three-phase panelboard.
2) Do I need to order breakers separately for an Eaton Type CH 200A load center?
Yes. The 200A CSR main is integrated in the loadcenter, but branch breakers are ordered separately and sized to your circuits. Count your poles first: a 60-pole box does you no good if you only budget breakers for 20 circuits. You will also want to confirm whether your job needs a ground bar kit for a service entrance neutral-ground bond or a subfeed, since those are separate accessories on loadcenters generally.
How fast can I get the Eaton CHP24B200X5 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Eaton CHP24B200X5 come with a warranty?
Absolutely. The Eaton CHP24B200X5 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Eaton CHP24B200X5?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
