Eaton Type CH Main Lug Loadcen...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$100.08

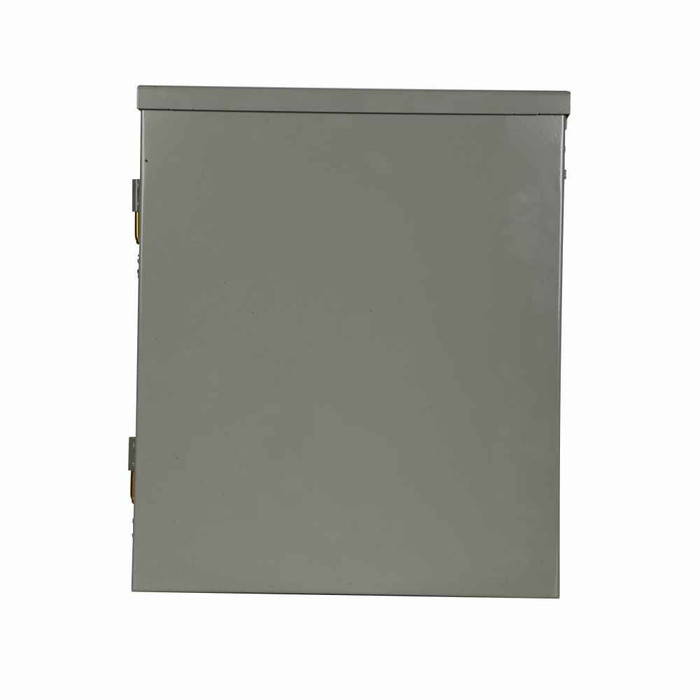

Eaton Type CH Main Lug Loadcenter, Single-Phase 120/240V, Copper Bus

Eaton Type CH Main Lug Loadcenter, Single-Phase 120/240V, Copper Bus

(No reviews yet) Write a Review

Model: CHP12L125X0
$100.08

In Stock (leaves warehouse same day if ordered before 3pm ET)

$100.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Type CH Main Lug Loadcenter Single-Phase Enclosure

Professional electrical distribution for residential and commercial applications

The Eaton Type CH Main Lug Loadcenter delivers reliable single-phase power distribution with professional-grade construction. Featuring a copper bus and durable steel construction, this loadcenter provides dependable electrical distribution for various applications requiring 120/240V service with a 25 kAIC interrupt rating. Available in a range of amperage ratings, enclosure types, box sizes, and space and pole configurations to suit your project.

Professional Features & Benefits

  • Single-Phase 120/240V: Compatible with standard residential and commercial voltage requirements for versatile installation options
  • Steel Construction: Delivers robust protection and durability for dependable, long-lasting performance
  • Copper Bus Material: Ensures excellent conductivity and long-term reliability for consistent electrical performance
  • 25 kAIC Interrupt Rating: Provides professional-grade fault current protection for enhanced electrical safety
  • UL 67 Listed: Meets rigorous safety standards for professional electrical installations and code compliance
  • Type CH Design: Engineered for compatibility with Eaton CH circuit breakers for complete system integration

Technical Specifications

  • Bus Material: Copper
  • Certifications: UL 67
  • Enclosure Material: Steel
  • Interrupt Rating: 25 kAIC
  • Phase: Single-phase
  • Product Details: CH
  • Special Features: PON
  • Voltage Rating: 120/240 V

Professional Applications

  • Residential electrical service panels and distribution systems
  • Light commercial facilities requiring reliable power distribution
  • Multi-unit residential properties and apartment complexes
  • Professional offices and retail establishments
  • Workshop and garage electrical installations
  • Renovation and upgrade projects requiring modern loadcenter solutions

Why Choose Eaton Quality?

Eaton loadcenters are engineered for professional reliability with UL 67 listing ensuring code compliance and safety. The robust steel construction and copper bus material provide long-lasting performance for demanding electrical distribution applications.

Variant Specifications

AmperageEnclosureTypeNumber Of Spaces OptionNumber of Poles AvailableBox Size OptionWire Size Range Cu/Al 60°C or 75°CSKU
125AOutdoor1224X0R#6-2/0CHP12L125R
125AIndoor1224X0#6-2/0CHP12L125X0
200AOutdoor1224X5R#4-300 kcmilCHP12L200R
125AOutdoor1632X1R#6-2/0CHP16L125R
125AIndoor1632X1#6-2/0CHP16L125X1
200AOutdoor1632X5R#4-300 kcmilCHP16L200R
200AIndoor1632X5#4-300 kcmilCHP16L200X5
125AOutdoor2040X2R#6-2/0CHP20L125R
125AIndoor2040X2#6-2/0CHP20L125X2
125AOutdoor2448X2R#6-2/0CHP24L125R
125AIndoor2448X2#6-2/0CHP24L125X2
150AIndoor2448X5#4-300 kcmilCHP24L150X5
225AOutdoor2448X5R#4-300 kcmilCHP24L225R
225AIndoor2448X5#4-300 kcmilCHP24L225X5
150AIndoor3264X5#4-300 kcmilCHP32L150X5
225AOutdoor3264X5R#4-300 kcmilCHP32L225R
225AIndoor3264X5#4-300 kcmilCHP32L225X5
225AOutdoor4284X6R#4-300 kcmilCHP42L225R
225AIndoor4284X6#4-300 kcmilCHP42L225X6

Manufacturer Resources

Product Specs

Bus Material:
Copper
Voltage Rating:
120/240V
Phase:
Single-phase
Product Group:
Power Distribution
Interrupt Rating:
25 kAIC
Product Type:
Load Center
Department:
Electrical
Product Subgroup:
Panelboards & Load Centers

Eaton CHP12L125X0 – Frequently Asked Questions

1) Will Eaton CH main lug loadcenters accept Square D or Siemens breakers?
No. The Type CH loadcenter takes Eaton CH circuit breakers. The bus is built for the CH breaker mounting, so Square D QO/Homeline, Siemens, or Eaton's own BR-style breakers are not the right fit. If you already own a panel full of BR breakers, order a BR loadcenter instead so the breakers carry over.
2) Is there an Eaton CH main lug panel rated for outdoor mounting?
Yes, both indoor and outdoor enclosures are offered on the CH main lug loadcenter, and the outdoor boxes are the ones whose box size code ends in R (X0R, X1R, X2R, X5R, X6R). Indoor codes drop the R (X0, X1, X2, X5, X6). If the panel is going on an exterior wall or in an unheated detached garage, take an R box; the indoor box has no rain-tight provision.
3) Does a main lug loadcenter need a separate main breaker, or is it a main breaker panel?
Main lug means no main breaker in the panel. The feeder lands directly on the lugs and overcurrent protection has to come from upstream, typically the main breaker in the service equipment or a feeder breaker in the panel ahead of it. That makes the CH main lug the right choice for a subpanel: a detached garage feed, a shop, a tenant panel fed from house main. If this is the service disconnect at the meter, you want a main breaker loadcenter instead.
4) How many circuits do I actually get in a 24 space Eaton CH loadcenter?
Spaces and poles are two different counts on the CH main lug, and the poles number is the one that matters for circuit planning. A 24 space box is rated 48 poles, because CH breakers are available in tandem form that puts two circuits in one space. The full range runs 12 spaces/24 poles, 16/32, 20/40, 24/48, 32/64, and 42/84. A 42 space panel at 84 poles is the largest.
5) Is 25 kAIC enough interrupt rating for my panel location?
The CH main lug loadcenter carries a 25 kAIC interrupt rating, which covers most residential and light commercial services. Where it matters is a panel close to a large utility transformer or a big commercial service, because available fault current there can exceed 25 kA. If your engineer's fault current study puts the panel above 25 kA, this loadcenter is not the right piece of equipment for that spot. Under it, you're fine.
6) Can an Eaton CH main lug loadcenter be used on a 208Y/120 three-phase system?
No. The CH main lug loadcenter here is single-phase, rated 120/240V. It will not serve a three-phase panel, and it should not be fed from two legs of a 208V wye either, since that supplies 208V between phases rather than the 240V this panel is rated for. For three-phase distribution you need a three-phase panelboard.
7) Which amperage Eaton CH main lug panel do I need for a subpanel feed?
Size the panel to the feeder breaker protecting it, not to the load. Four ratings are offered: 125A, 150A, 200A, and 225A. A 100A feed to a detached garage sits comfortably in a 125A panel. A 200A feeder needs a 200A or 225A panel. Going larger on the panel than the feeder is allowed and is common practice when you want room to grow, but the panel rating can never be below the breaker feeding it.
8) Copper bus or aluminum bus in an Eaton CH loadcenter?
Copper, across the CH main lug range. That matters to spec-driven buyers and to anyone standardizing a portfolio, since a lot of competing residential loadcenters ship with plated aluminum bus and copper bus is often what an engineer's spec calls out by name. The enclosure itself is steel.
9) Is the Eaton CH loadcenter UL listed for a permitted job?
UL 67 is the listing it carries, which is the standard covering panelboards. That's the listing an inspector looks for on a loadcenter installation.
10) What is the biggest Eaton CH main lug loadcenter available, and what amperage does it come in?
42 spaces / 84 poles is the top of the CH main lug range, offered at 225A in both indoor (box X6) and outdoor (box X6R) enclosures. Its lugs take #4 through 300 kcmil. That's the panel to reach for on a large house rewire or a light commercial tenant fit-out where the circuit count is what's driving the panel size.
11) I'm standardizing panels across an apartment portfolio. Can I keep one breaker stock for all of these?
Yes, and that's the practical reason to pick one family. Every configuration of the CH main lug loadcenter, from the 12 space 125A up to the 42 space 225A, indoor or outdoor, uses the same Eaton CH breakers. One breaker stock on the truck covers every panel in the portfolio, and a maintenance tech pulling a 20A single pole doesn't need to know which building they're in.
