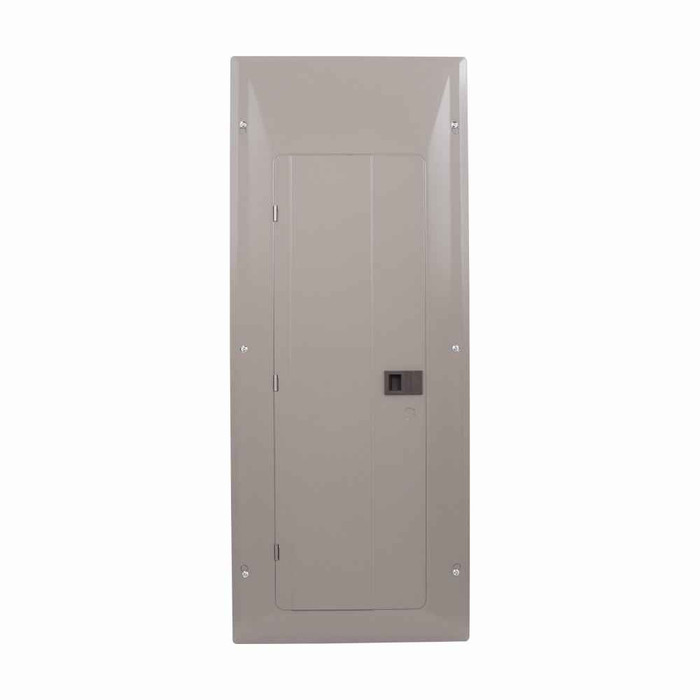

Eaton Type CH Main Lug Loadcenter 225A Single-Phase 120/240V Copper Bus Power Distribution Panel
Professional Power Distribution for Commercial and Industrial Applications
The Eaton Type CH Main Lug Loadcenter delivers reliable 225A single-phase power distribution at 120/240V with professional-grade copper bus construction. This overhead feed loadcenter provides robust electrical distribution with 25 kAIC interrupt rating and accommodates wire sizes from #1 AWG to 300 kcmil for versatile installation requirements.
Professional Features & Benefits
- 225A Service Rating: Handles substantial electrical loads for commercial and industrial power distribution requirements.
- Copper Bus Construction: Provides superior conductivity and corrosion resistance for long-term reliability and performance.
- 25 kAIC Interrupt Rating: Delivers robust fault current protection to safeguard electrical systems and connected equipment.
- 120/240V Single-Phase: Compatible with standard residential and light commercial voltage systems for broad application flexibility.
- Overhead Feed Design: Optimized for top-entry power connections in standard electrical installations.
- Wide Wire Range Compatibility: Accepts conductors from #1 AWG to 300 kcmil for flexible installation and connection options.
- Single-Pole Configuration: Provides standard branch circuit protection and distribution capabilities.
Technical Specifications
- Amperage Rating: 225 A
- Bus Material: Copper
- Feed Type: Overhead
- Interrupt Rating: 25 kAIC
- Number Of Poles: Single-pole
- Phase: Single-phase
- Voltage Rating: 120/240 V
- Wire Size: #1 AWG-300 kcmil
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Commercial Building Power Distribution
- Light Industrial Facilities
- Multi-Unit Residential Properties
- Professional Office Buildings
- Retail and Service Establishments
- Educational and Institutional Facilities
- Healthcare and Emergency Services
Why Choose Eaton Quality?
Eaton Type CH loadcenters provide proven reliability with copper bus construction and robust 25 kAIC interrupt rating for professional electrical distribution applications. The overhead feed design and wide wire size compatibility ensure versatile installation options while maintaining superior performance and durability.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 225 A
- Bus Material:
- Copper
- Feed Type:
- Overhead
- Interrupt Rating:
- 25 kAIC
- Number Of Poles:
- Single-pole
- Phase:
- Single-phase
- Voltage Rating:
- 120/240 V
- Wire Size:
- #1 AWG-300 kcmil
- Department:
- Electrical
- Product Type:
- Load Center
- Product Group:
- Load Centers & Panel Boards
