Eaton Universal End Stop One Screw 35mm DIN Rail Mount XB IEC Series

Eaton Universal End Stop 35mm DIN Rail Mount One Screw XB IEC Series

(No reviews yet) Write a Review

Model: XBAES35C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

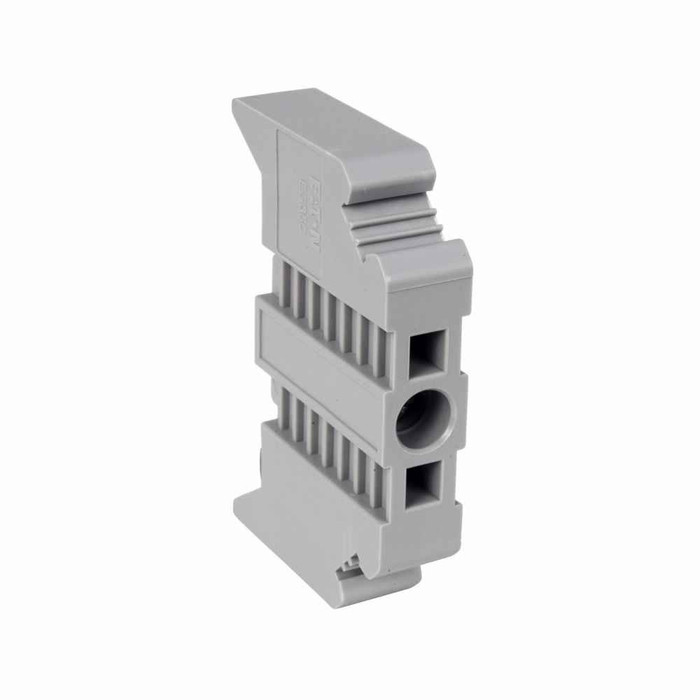

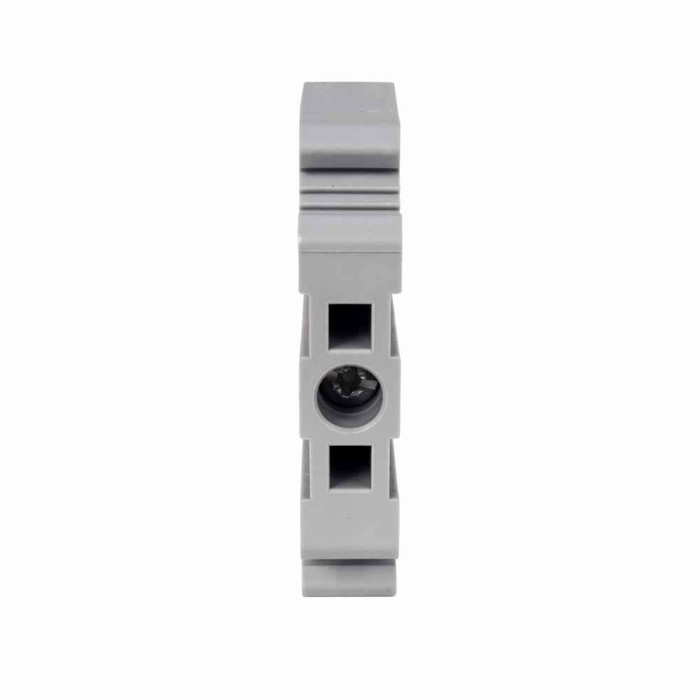

Eaton Universal End Stop 35mm DIN Rail Mount One Screw XB IEC Series

Professional DIN Rail Mounting Solution for Secure Component Installation

The Eaton Universal End Stop provides reliable component positioning and security for 35mm DIN rail installations. This CSA certified mounting accessory features one screw attachment method and compact dimensions measuring .99 inches wide by 1.6 inches deep by .32 inches high, weighing just .0375 pounds for efficient installation in electrical panels and control cabinets.

Professional Features & Benefits

  • 35mm DIN Rail Compatibility: Designed specifically for standard 35mm rail systems ensuring proper fit and secure mounting in professional electrical installations.
  • One Screw Mounting Method: Simplified installation process reduces assembly time while providing reliable mechanical connection and positioning control.
  • CSA Certification: Meets rigorous safety and performance standards for professional electrical applications and code compliance requirements.
  • Compact Profile Design: At .32 inches high and .99 inches wide, maximizes space efficiency in crowded panel layouts without compromising functionality.
  • Universal End Stop Function: Prevents component migration and provides positive positioning for various DIN rail mounted devices and terminal blocks.
  • Lightweight Construction: At .0375 pounds, minimizes additional load on mounting systems while maintaining structural integrity and performance.

Technical Specifications

  • Certifications: CSA Certified
  • Item Quantity: 50
  • Mounting Method: One screw
  • Product Details: Universal End Stop
  • Product Height: .32 in
  • Product Length Depth: 1.6 in
  • Product Weight: .0375 lb
  • Product Width: .99 in
  • Used With: 35 mm rail

Professional Applications

  • Industrial Control Panels and Automation Systems
  • Commercial Electrical Distribution Equipment
  • Manufacturing Process Control Installations
  • Building Management System Components
  • Power Distribution and Motor Control Centers
  • Instrumentation and Control Cabinets
  • Professional Electrical Maintenance and Retrofit Projects

Why Choose Eaton Quality?

Eaton Universal End Stops deliver proven reliability with CSA certification ensuring compliance with professional electrical standards. The precision-engineered design and quality construction provide long-term performance in demanding industrial and commercial applications, backed by Eaton's commitment to electrical safety and system integrity.

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Item Quantity:
50
Mounting Method:
One screw
Product Details:
Universal End Stop
Product Height:
.32 in
Product Length Depth:
1.6 in
Product Weight:
.0375 lb
Product Width:
.99 in
Used With:
35 mm rail
Department:
Electrical
Product Group:
Motor Control & Automation
Product Type:
Electrical Component
Product Subgroup:
DIN Rail & Accessories
Product Length:
1.6 in

Eaton XBAES35C – Frequently Asked Questions

1) Will the Eaton XBAES35C end stop fit standard 35mm DIN rail?
Yes. The XBAES35C universal end stop is made for 35 mm rail, which is the standard top-hat rail used in control panels and distribution gear. It clamps to the rail with a single screw, so you set the position, tighten, and the terminal blocks or devices next to it stop migrating along the rail.
2) How many Eaton XBAES35C end stops come in a pack?
They come 50 to a box. That is a panel-shop quantity, not a one-off repair part, so if you are stopping both ends of several terminal strips across a job you are covered, but expect to receive the full 50-piece quantity rather than a single stop.
3) Can I use the Eaton XBAES35C on 15mm or 75mm DIN rail?
No. The XBAES35C is sized for 35 mm rail only. If your panel uses miniature 15 mm rail or the wider 75 mm rail, this stop will not seat correctly and you need a stop matched to that rail width. Check the rail profile in the cabinet before ordering, since 35 mm is common but not universal in older instrumentation enclosures.
4) How much panel space does an Eaton XBAES35C end stop take up on the rail?
Very little. The end stop measures .99 x 1.6 x .32 inches, and it is the .32 inch figure that costs you rail length, so a pair of them (one each side of a terminal block group) eats well under an inch of run. That matters when you are packing a full rail and need to know how many blocks still fit.
5) What is a DIN rail end stop actually for, and do I need one on each end?
An end stop is a mechanical block that screws down to the rail and keeps DIN-mounted devices from sliding. Terminal blocks are not fixed to the rail themselves, they just clip on, so without a stop at each end of the group the whole strip walks under vibration or when you pull a wire. Standard practice is one at each end of a block group, which is why the XBAES35C ships 50 to a box.
6) Does the Eaton XBAES35C end stop work with other manufacturers' terminal blocks?
It is a universal end stop, so it fixes to the rail rather than latching onto a specific block family. Anything mounted on 35 mm rail gets held in place by it, whoever made the blocks. The one screw clamps to the rail itself, which is what makes it brand-agnostic.
7) How much does the Eaton XBAES35C end stop weigh?
.0375 lb each. Across a 50-piece box that is under two pounds, so the stops add nothing meaningful to the load on a rail or a back panel even when you are using dozens of them in one enclosure.
