Eaton XB IEC Series Red Plug-In Bridge Jumper

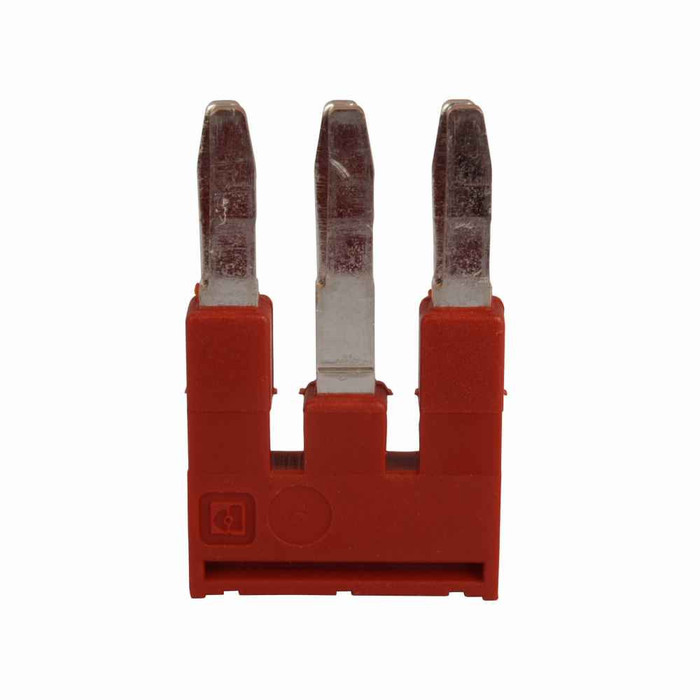

The Eaton XB IEC Series Plug-In Bridge Jumper is a red plug-in accessory engineered for cross connections in the bridge shaft of compatible terminal block assemblies. It allows electricians and panel builders to link adjacent terminal positions quickly, without additional wiring, fasteners, splices, or hand tools, simplifying control panel and distribution assembly work. The color-coded red housing supports fast circuit identification during installation, troubleshooting, and maintenance, and the jumper is available across a range of position counts to suit different terminal block layouts. Backed by Eaton engineering, it is built to deliver dependable, code-compliant performance in demanding electrical control environments.

Key Features

  • Cross-Connection Design: Engineered for cross connections in the bridge shaft, enabling quick electrical linking between adjacent terminal block positions.
  • Color-Coded Housing: Finished in red for fast visual identification and simplified circuit tracing during panel assembly and servicing.
  • Plug-In Convenience: Plug-in style construction allows for tool-free insertion into compatible terminal block bridge shafts, reducing installation time and labor on the job.
  • Consistent Fit: Designed to seat securely in the bridge shaft of compatible terminal blocks, helping maintain a solid, low-resistance electrical connection between linked positions.
  • Eaton Reliability: Manufactured by Eaton for consistent fit and dependable performance in industrial and commercial control panels.
  • Maintenance Friendly: Plug-in design supports quick removal and replacement during panel troubleshooting, reconfiguration, or expansion.
  • Flexible Position Options: Offered in multiple position-count configurations so panel builders can match the jumper to the terminal block layout in use.

Technical Specifications

  • Product Color: Red

Typical Applications

  • Terminal Block Cross-Connections
  • Control Panel and Panelboard Wiring
  • Industrial Control System Assemblies
  • Electrical Distribution and Junction Assemblies
  • Panel Building and Retrofit Projects
  • OEM Machine Control Enclosures

Why Eaton?

Eaton is a trusted name in electrical components, and the XB IEC Series Plug-In Bridge Jumper reflects that standard with a simple, reliable design built for repeatable performance across terminal block installations. The color-coded red housing makes it easy for electrical professionals to stock and deploy consistent, code-compliant cross connections. Choose Eaton for dependable components that support efficient, professional panel wiring from initial build-out through ongoing maintenance and reconfiguration.

Manufacturer Resources

Spec Sheet

Product Specs

Product Color:
Red
Product Type:
Terminal Block Jumper
Series:
XB IEC
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Terminal Blocks & Strips

Eaton XBAFBS25 – Frequently Asked Questions

1) Will the Eaton XB bridge jumper fit any brand of DIN rail terminal block?
Treat it as an Eaton XB IEC series accessory. The jumper is made to seat in the bridge shaft of compatible Eaton terminal block assemblies, and bridge shaft geometry and terminal pitch vary by manufacturer and by block size. If your blocks are a different series or brand, use the jumper made for that series rather than forcing this one.
2) Do I need a tool to install an Eaton XB bridge jumper?
No. It is a plug-in jumper that pushes into the bridge shaft of the terminal block by hand, with no fasteners, splices, or hand tools. That also means it pulls back out for troubleshooting, reconfiguring, or expanding a panel without disturbing the field wiring in the clamps.
3) Can I buy Eaton XBAFBS bridge jumpers in bulk packs for a panel shop?
Yes. The 2, 3, and 10 position jumpers are stocked both as singles and in 10-packs (for example XBAFBS25 single versus XBAFBS26 ten-pack, and XBAFBS105 single versus XBAFBS106 ten-pack). The 5 position and 50 position jumpers are sold as singles. Panel builders repeating the same distribution block layout usually stock the 10-packs of the counts they use most.
4) What does a bridge jumper do that hand-wired jumper wires do not?
It commons adjacent terminal positions by plugging into the block's bridge shaft, so you get the cross connection without cutting, stripping, and landing a loop of wire in each clamp. That keeps the clamps free for field conductors, removes a set of terminations that can loosen, and makes the commoned group visible on the face of the block instead of buried in the wire duct. It is the standard approach for commoning grounds, neutrals, or a shared control feed across a run of DIN rail terminal blocks.
5) Why is this terminal block jumper red, and does the color mean anything electrically?
Red is an identification color only, not a rating or a voltage code. Eaton finishes the XB IEC bridge jumper in red so an electrician can pick out a commoned group at a glance when tracing circuits during assembly, troubleshooting, or service. If you use more than one jumper color in a panel, assign the meaning yourself and document it on the panel drawing.
6) Where are Eaton XBAFBS bridge jumpers typically used?
Control panel and panelboard wiring, industrial control system assemblies, electrical distribution and junction assemblies, OEM machine control enclosures, and panel retrofit work. In practice it is anywhere a builder needs a repeatable commoned group across terminal blocks: MRO and facilities crews use them for the same reason when reworking an existing panel.
