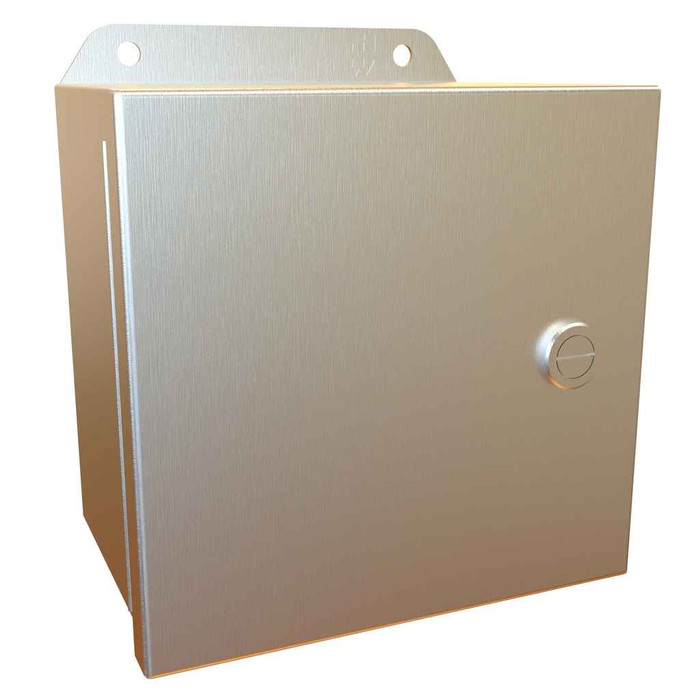

Hammond Manufacturing EJ664SS ECLIPSE JR. SS - 1 DR. WALLMNT - 6 x 6 x 4

Hammond Manufacturing ECLIPSE JR. Stainless Steel Wall Mount Enclosure 6x6x4 Type 4X

(No reviews yet) Write a Review

Model: EJ664SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$423.23
$360.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hammond Manufacturing ECLIPSE JR. Stainless Steel Wall Mount Enclosure 6x6x4 Type 4X

Professional Stainless Steel Enclosure for Demanding Industrial Applications

The Hammond Manufacturing ECLIPSE JR. delivers robust protection in a compact 6x6x4 inch stainless steel wall mount configuration. This Type 4X rated enclosure provides superior corrosion resistance and environmental protection with IP66 rating, making it ideal for harsh industrial environments. The single door design includes an integrated panel for convenient component mounting and access.

Professional Features & Benefits

  • Type 4X Rating: Provides maximum protection against corrosion, dust, and water ingress for reliable operation in demanding environments.
  • IP66 Protection: Ensures complete dust-tight sealing and protection against powerful water jets from any direction.
  • Stainless Steel Construction: Delivers exceptional corrosion resistance and durability for long-term performance in harsh conditions.
  • Compact 6x6x4 Dimensions: Space-efficient design maximizes protection while minimizing installation footprint.
  • Included Panel: Integrated mounting panel simplifies component installation and organization.
  • Multi-Standard Compliance: CSA, UL, and CE certifications ensure global regulatory compliance and professional installation confidence.
  • Wall Mount Design: Single door configuration provides convenient access while maintaining secure environmental protection.

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 4
  • Ip Rating: IP66
  • Panel: Included
  • Product Height: 6
  • Product Material: Stainless Steel
  • Product Weight: 5 lbs
  • Product Width: 6
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul, ce
  • Type Rating: type-3r, type-13, type-4x
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Systems
  • Outdoor Electrical Equipment Protection
  • Food Processing Facilities
  • Chemical Processing Plants
  • Marine and Coastal Installations
  • Water Treatment Facilities
  • Pharmaceutical Manufacturing

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing delivers proven reliability with comprehensive CSA, UL, and CE certifications ensuring global compliance. The stainless steel construction and Type 4X rating provide long-term durability in the most demanding environments, while REACH and RoHS compliance demonstrates commitment to environmental responsibility and professional standards.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP66
Panel:
Included
Product Height:
6
Product Material:
Stainless Steel
Product Weight:
5 lbs
Product Width:
6
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul, ce
Type Rating:
type-3r, type-13, type-4x
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
4

Hammond Manufacturing EJ664SS – Frequently Asked Questions

1) Will the Hammond EJ664SS hold up to washdown in a food processing plant?
Yes. The EJ664SS is a stainless steel enclosure rated Type 4X and IP66, so it is dust-tight and sealed against high-pressure water jets from any direction. Type 4X is the rating specified for corrosive and washdown areas, which is why it suits food plants, water treatment, and coastal installations. Its Type 13 rating also covers oil and coolant spray.
2) What size is the Hammond ECLIPSE JR. EJ664SS enclosure inside, and does it come with a back panel?
The EJ664SS is a 6 x 6 x 4 inch wall mount box (6 high, 6 wide, 4 deep) and a mounting panel is included, so you can land components without buying a sub-panel separately. The 4 inch depth is the number to check against your deepest device plus wiring space.
3) Is the EJ664SS stainless enclosure UL and CSA listed for an inspected installation?
It carries UL, CSA, and CE. The UL file is E65324 and the CSA certification is LR21001, which are the numbers an inspector or submittal package will ask for.
4) Can this Hammond stainless enclosure be mounted outdoors?
Yes. Along with Type 4X, the EJ664SS is rated Type 3R, which covers outdoor use against rain, sleet, and snow. The stainless shell and IP66 seal are what let it sit on an exterior wall or a pole-side bracket without rusting out.
5) Is a Type 4X stainless box the right choice, or would painted steel Type 12 do the job?
If the enclosure sees corrosive chemicals, salt air, or hose-down cleaning, go stainless with Type 4X, as on the EJ664SS. For a dry indoor control room with only dust and dripping oil to worry about, a painted steel Type 12 box is the cheaper and normal pick. The 4X rating is specifically the corrosion-resistant version of 4, and that corrosion resistance is the reason to pay for stainless.
6) What part number do I order for the Hammond 6x6x4 single door stainless wall mount enclosure?
Order Hammond Manufacturing EJ664SS. It is the ECLIPSE JR. single door, 6 x 6 x 4 inch stainless wall mount, panel included.
7) Does the Hammond EJ664SS meet RoHS and REACH for a spec submittal?
Yes on both, and it is USMCA compliant as well. The enclosure is made in Canada, which is often the deciding detail on government and domestic-preference procurement.
8) How heavy is the 6x6x4 Hammond stainless enclosure for wall mounting?
About 5 lbs, panel included. At that weight a pair of anchors rated for the substrate is enough on block or stud, and one person can hold it while fastening.
