Hammond Manufacturing N4 Stain...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$688.80
Hammond Manufacturing 1414N4PHSSE N4 HINGE SS BOX 6X6X4 - 6 x 6 x 4

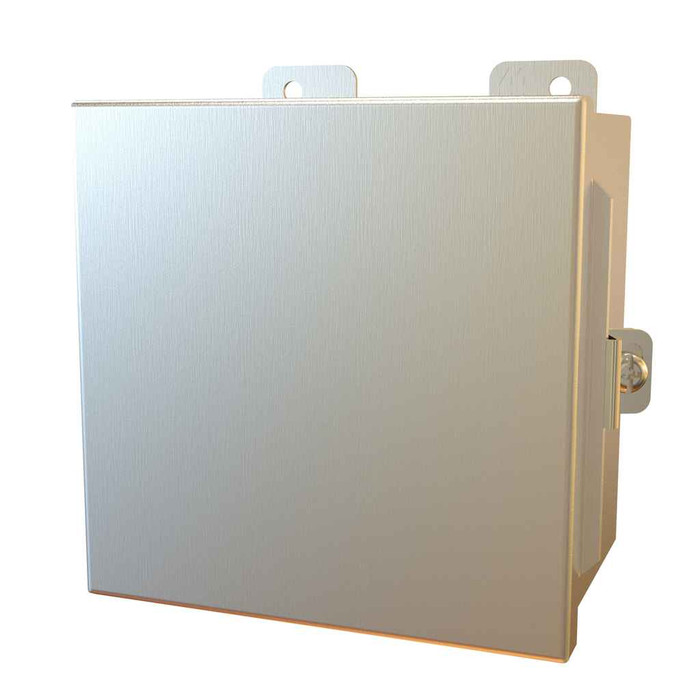

Hammond Manufacturing N4 Stainless Steel Hinged Enclosure 6x6x4 IP66 Type 4X

(No reviews yet) Write a Review

Model: 1414N4PHSSE
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$688.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hammond Manufacturing N4 Stainless Steel Hinged Enclosure 6x6x4 IP66 Type 4X

Professional Grade Stainless Steel Electrical Enclosure with Superior Environmental Protection

The Hammond Manufacturing N4 Stainless Steel Hinged Enclosure delivers robust protection for electrical components in demanding environments. This 6x6x4 inch enclosure features durable stainless steel construction with IP66 rating and Type 4X classification, ensuring reliable performance in corrosive and wet conditions. The hinged design provides convenient access while maintaining environmental integrity, and the included panel offers complete installation flexibility for professional applications.

Professional Features & Benefits

  • IP66 Rating: Provides complete protection against dust ingress and powerful water jets, ensuring reliable operation in harsh outdoor environments.
  • Type 4X Classification: Offers superior corrosion resistance and protection against windblown dust, rain, and ice formation for long-term durability.
  • Stainless Steel Construction: Delivers exceptional corrosion resistance and structural integrity for demanding industrial and marine applications.
  • 6x6x4 Inch Dimensions: Compact footprint accommodates various electrical components while maximizing installation flexibility in space-constrained applications.
  • Hinged Design: Enables quick and convenient access for installation, maintenance, and component changes without removing the entire enclosure.
  • CSA and UL Listed: Meets rigorous safety standards with CSA LR21001 and UL E65324 certifications for professional installation confidence.
  • Included Panel: Complete installation package eliminates the need for additional mounting components and ensures proper component securing.

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 4
  • Ip Rating: IP66
  • Panel: Included
  • Product Height: 6
  • Product Material: Stainless Steel
  • Product Weight: 5 lbs
  • Product Width: 6
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul, ce
  • Type Rating: type-3r, type-13, type-4x
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Systems and Motor Control Centers
  • Marine and Coastal Electrical Installations
  • Food Processing and Chemical Plant Equipment
  • Outdoor Telecommunications and Data Equipment
  • Water Treatment and Wastewater Management Facilities
  • Pharmaceutical and Clean Room Applications
  • Oil and Gas Processing Equipment Protection

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing delivers proven reliability through rigorous CSA and UL certification standards, ensuring professional-grade performance in critical applications. The stainless steel construction and comprehensive environmental ratings provide long-term durability and corrosion resistance, while compliance with REACH, RoHS, and USMCA standards demonstrates commitment to quality and environmental responsibility.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP66
Panel:
Included
Product Height:
6
Product Material:
Stainless Steel
Product Weight:
5 lbs
Product Width:
6
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul, ce
Type Rating:
type-3r, type-13, type-4x
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
4

Hammond Manufacturing 1414N4PHSSE – Frequently Asked Questions

1) Is the Hammond 1414N4PHSSE enclosure rated for outdoor washdown or coastal use?
Yes. The 1414N4PHSSE carries a Type 4X rating along with Type 3R and Type 13, and an IP66 rating, so it handles windblown dust, rain, hose-directed water and corrosive atmospheres. The stainless steel body is what earns the 4X corrosion resistance, which is why it gets specified for marine, water treatment and food processing work rather than a painted steel box.
2) Does the Hammond 6x6x4 stainless hinged box come with a mounting panel?
A panel is included with the 1414N4PHSSE, so you can mount terminal blocks, relays or a small controller without buying a back panel separately. Usable panel space is bounded by the 6 x 6 inch face and 4 inches of depth.
3) Is the Hammond 1414N4PHSSE UL and CSA certified for inspection sign-off?
It is built to CSA, UL and CE standards, filed under UL file E65324 and CSA certification LR21001. Those file numbers are what an inspector or spec reviewer will want to see referenced on the submittal.
4) Can I drill my own conduit holes in this stainless enclosure without losing the 4X rating?
The 1414N4PHSSE ships without conduit openings, so you make your own. The Type 4X and IP66 ratings only hold if every penetration is closed with a correspondingly rated fitting, a 4X liquidtight hub or a sealing-type cord grip. A standard locknut-and-bushing connector will leak and void the rating in a washdown or outdoor spot.
5) Should I pick a hinged enclosure or a screw-cover box for a junction that gets serviced often?
Go hinged. The 1414N4PHSSE opens on a hinge, so the cover stays captive and you are not juggling a loose lid and a handful of screws on a ladder. A screw-cover box is the cheaper choice only where you open it once at commissioning and never again. The hinge does not cost you the seal here, the box still holds IP66 and Type 4X closed.
6) What is the exact Hammond part number for the 6x6x4 stainless hinged N4 box?
Order Hammond Manufacturing 1414N4PHSSE. That number covers the stainless steel 6 x 6 x 4 inch hinged Type 4X enclosure with the panel included.
7) Does the Hammond stainless enclosure meet RoHS and REACH for a regulated facility?
Yes on both, and it is USMCA compliant with Canada as the country of origin. That combination covers most procurement checklists for pharmaceutical, food and government work.
8) How heavy is the Hammond 1414N4PHSSE, and will a stud wall or strut rack hold it?
It weighs 5 lbs with the panel, light enough for Unistrut, a single stud, or a machine frame without supplemental backing. Add the weight of whatever you mount inside when you size the fasteners.
