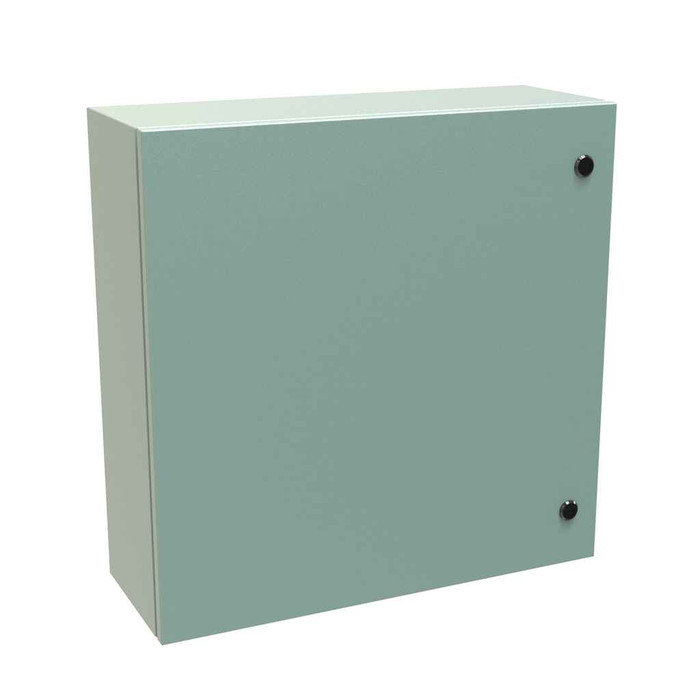

Hammond Manufacturing EN4SD24248GY ECLIPSE N4 1 DR. WALLMOUNT - 24 x 24 x 8

Hammond Manufacturing ECLIPSE N4 Wall Mount Enclosure 24x24x8 IP66 Type 3R/4/12 Mild Steel

(No reviews yet) Write a Review

Model: EN4SD24248GY
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$652.17
$581.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hammond Manufacturing ECLIPSE N4 Wall Mount Enclosure 24x24x8 IP66 Type 3R/4/12 Mild Steel

Professional Industrial Enclosure for Electrical Equipment Protection

Hammond Manufacturing ECLIPSE N4 Wall Mount Enclosure delivers reliable protection for electrical components with its robust 24x24x8 inch mild steel construction. This professional-grade enclosure features IP66 rating and multiple NEMA type ratings (3R, 4, 12) for versatile indoor and outdoor applications, ensuring dependable performance in demanding industrial environments.

Professional Features & Benefits

  • IP66 Rating: Provides complete dust protection and powerful water jet resistance for reliable operation in harsh environments
  • Multiple Type Ratings (3R/4/12): Offers versatile protection against weather, corrosion, and falling dirt for diverse installation requirements
  • 24x24x8 Inch Dimensions: Spacious interior accommodates various electrical components while maintaining compact wall-mount profile
  • Mild Steel Construction: Durable material provides excellent mechanical strength and long-term reliability
  • CSA/UL/CE Standards Compliance: Meets rigorous safety and performance standards for professional electrical installations
  • Single Door Design: Convenient access for installation, maintenance, and component servicing
  • 49 lbs Weight: Substantial construction ensures stability and protection while remaining manageable for installation

Technical Specifications

  • Country Of Origin: Canada
  • Csa Cert: LR21001
  • Depth: 8
  • Ip Rating: IP66
  • Panel: Available (sold separately)
  • Product Height: 24
  • Product Material: Mild Steel
  • Product Weight: 49 lbs
  • Product Width: 24
  • Reach Compliant: Yes
  • Rohs Compliant: Yes
  • Standards: csa, ul, ce
  • Type Rating: type-3r, type-12, type-4
  • Ul File: E65324
  • Usmca Compliant: Yes

Professional Applications

  • Industrial Control Systems
  • Electrical Distribution Equipment
  • Motor Control Centers
  • Instrumentation Housing
  • Outdoor Electrical Installations
  • Manufacturing Facilities
  • Commercial Building Systems

Why Choose Hammond Manufacturing Quality?

Hammond Manufacturing ECLIPSE N4 enclosures provide proven reliability with comprehensive CSA, UL, and CE certifications ensuring compliance with international safety standards. The robust mild steel construction and IP66 protection rating deliver long-term durability in demanding industrial environments, backed by Hammond's commitment to professional-grade electrical enclosure solutions.

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP66
Panel:
Available (sold separately)
Product Height:
24
Product Material:
Mild Steel
Product Weight:
49 lbs
Product Width:
24
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul, ce
Type Rating:
type-3r, type-12, type-4
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
8

Hammond Manufacturing EN4SD24248GY – Frequently Asked Questions

1) Can the Hammond ECLIPSE EN4SD24248GY enclosure be mounted outdoors?
Yes. The ECLIPSE N4 24 x 24 x 8 wall mount carries Type 3R, Type 4 and Type 12 ratings along with IP66, so it handles rain, falling dirt, hose-directed water and dust. Type 4 is the one that matters for a washdown or weather-exposed wall; Type 12 covers indoor dust and dripping oil or coolant in a plant.
2) Does the Hammond EN4SD24248GY come with a back panel for mounting components?
No. The mounting panel is a separate order on the 24 x 24 x 8 ECLIPSE N4. The box ships as the enclosure and single door; budget a panel kit if you are landing a starter, PLC or terminal strips inside.
3) Is this Hammond enclosure UL listed, and what file number do I cite on a submittal?
It is built to CSA, UL and CE standards. The UL file is E65324 and the CSA certification is LR21001. Those are the numbers to put on an inspection submittal or a spec compliance sheet.
4) Is 8 inches of depth enough for a small motor starter or PLC panel?
The interior depth is 8 inches, measured 24 high by 24 wide. That clears a back panel plus DIN rail with most compact PLCs, contactors and terminal blocks, but deep gear like a large VFD or a breaker with long lugs will crowd the door. Check the deepest component plus wire bend radius against the 8 inches before you commit.
5) How much does the 24x24x8 Hammond ECLIPSE N4 enclosure weigh, and does it need two people to hang?
49 lbs empty. That is a two-person lift to hold on the wall while the anchors go in, and the wall needs to carry 49 lbs plus whatever gear and panel you load into it. Mild steel construction is what accounts for the weight.
6) Does the Hammond ECLIPSE N4 wall mount come with knockouts, or do I drill my own conduit entries?
The 24 x 24 x 8 ECLIPSE N4 is supplied as a sealed Type 4 / IP66 box with no pre-punched entries, so conduit holes are field-drilled. Use watertight hub fittings on any penetration, otherwise you give up the IP66 and Type 4 seal you paid for.
7) Is mild steel the right choice, or do I need stainless for my environment?
Mild steel with a painted finish is the standard choice for plant floors, mechanical rooms and ordinary outdoor walls. Where there is salt spray, frequent chemical washdown, or a food or pharma area that gets sanitized, specify a stainless Type 4X enclosure instead, since Type 4 on steel addresses water and dust but not corrosive attack.
8) Does this Hammond enclosure meet RoHS and REACH for a government or institutional purchase order?
Yes on both. The 24 x 24 x 8 ECLIPSE N4 is RoHS compliant and REACH compliant, and it is USMCA compliant, made in Canada. That covers most environmental and domestic-content language on public and healthcare procurement orders.
9) What is the exact Hammond part number for the 24 x 24 x 8 single door ECLIPSE wall mount in gray?
EN4SD24248GY. That designation reads out as ECLIPSE N4, single door, 24 x 24 x 8, gray. Use it verbatim on a purchase order so you do not land the two-door or a different depth.
