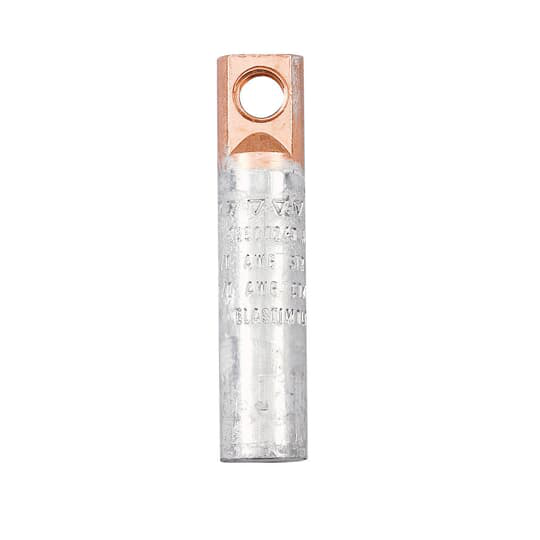

Elastimold 02500240 15/35kV 200A 1-Hole Bimetal Compression Lug for 1/0 STR Conductor

Elastimold 02500240 15/35kV 200A 1-Hole Bimetal Compression Lug for 1/0 STR Conductor

(No reviews yet) Write a Review

Model: 02500240

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Elastimold 15/35kV 200A 1-Hole Bimetal Compression Lug for 1/0 STR Conductor

The Elastimold 15/35kV, 200A bimetal compression lug is engineered for terminations within Elastimold's ELA series of separable connectors used on medium-voltage underground distribution systems. This 1-hole lug is a bimetallic (BIMET 1H) design sized to accept a 1/0 STR stranded conductor, providing a secure compression connection that helps reduce galvanic corrosion risk between dissimilar metals. As part of the ELA series lineup — which also includes 161LR-C, 162LR-A, 162LR-C, 02500250, and 02500270 configurations — this lug shares the family's 15/35kV voltage class and is built to Elastimold's standard dimensional and electrical specifications for utility-grade medium-voltage service.

Key Features

  • Voltage Class: Rated 15/35kV for medium-voltage underground distribution applications.
  • Amperage Rating: 200A continuous current rating for the lug/connector assembly.
  • Lug Configuration: 1-hole bimetallic (BIMET 1H LUG) design for a secure mechanical and electrical termination point.
  • Conductor Compatibility: Sized to accept a 1/0 STR stranded conductor for proper mechanical fit and electrical continuity.
  • Bimetallic Construction: Bimetal lug body helps reduce galvanic corrosion risk at the connection point.
  • Compression Termination: Compression-style lug interface for a reliable, code-compliant conductor connection.
  • Series Identification: Part of the Elastimold ELA series of separable connectors engineered to the manufacturer's standard dimensional and electrical specifications.

Technical Specifications

  • Series: ELA
  • Voltage Rating: 15/35kV
  • Amperage Rating: 200A
  • Lug Type: Bimetallic, 1-Hole (BIMET 1H LUG)
  • Conductor Size: 1/0 STR
  • Related Model Options: 161LR-C, 162LR-A, 162LR-C, 02500250, 02500270

Typical Applications

  • Underground Residential Distribution (URD) Systems
  • Padmount Transformer and Switchgear Terminations
  • Medium-Voltage Loadbreak Switching Operations
  • Underground Feeder and Cable Connections
  • Utility and Industrial Medium-Voltage Distribution

Why Elastimold?

Elastimold engineers its ELA series bimetal compression lugs to deliver dependable electrical and mechanical performance in demanding medium-voltage underground distribution environments. This lug's 1-hole bimetallic design and 15/35kV, 200A rating support the requirements of utility-grade terminations within the broader ELA separable connector family. Choose Elastimold components for underground distribution work where reliable, code-compliant connections are required.

Manufacturer Resources

Product Specs

Product Type:
Loadbreak Elbow Connector
Voltage Rating:
15/35kV
Amperage Rating:
200A
Configuration:
1-Hole Lug
Series:
ELA
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Electrical
list_batch:
ELSM-20261001
Product Material:
Bimetallic
Connection Type:
Loadbreak
Wire Size:
1/0 STR/COMPR AWG2/0 SOL/COMPT AWG
Country Of Origin:
United States

Elastimold 02500240 – Frequently Asked Questions

1) What conductor sizes will the Elastimold 02500240 compression lug accept?
The 02500240 lug is sized for 1/0 STR or compressed conductor, and also takes 2/0 solid or compact AWG. If your cable is outside that range you need a different lug from the ELA series rather than forcing the fit, since a compression lug only crimps correctly onto the conductor size it is built for.
2) Can I use this Elastimold lug on a 35kV underground circuit, or is it 15kV only?
It is rated 15/35kV, so it covers both the 15kV and 35kV medium-voltage classes used on underground distribution. Current rating is 200A continuous for the lug and connector assembly.
3) Is the Elastimold 02500240 a complete elbow connector or just the lug?
It is the bimetal compression lug itself, the 1-hole termination that goes inside an Elastimold ELA series 200A loadbreak elbow. You still need the elbow body and the rest of the separable connector kit to make up the termination.
4) Why is this a bimetal lug instead of straight copper or aluminum?
The lug body is bimetallic, which puts the right metal against each side of the joint when you are landing an aluminum conductor on a copper stud or vice versa. That limits galvanic corrosion at the connection, which is the usual failure point on dissimilar-metal terminations in a buried or padmount enclosure.
5) Which other Elastimold ELA lug part numbers should I look at if 1/0 isn't my conductor size?
Within the same 15/35kV ELA lineup, the other configurations are 161LR-C, 162LR-A, 162LR-C, 02500250, and 02500270. Match the lug to your actual conductor size and hole count rather than to the elbow, since the elbow body is common across the family.
6) Is this lug suitable for loadbreak switching, or only dead-break connections?
Connection type is loadbreak, so it is intended for 200A loadbreak elbow terminations where the elbow is switched under load with a hotstick. Typical spots are padmount transformer and switchgear bushings on URD feeders.
7) Does a 1-hole lug limit how I can land the conductor compared to a 2-hole lug?
Yes. With a single bolt hole the lug lands on one stud and can rotate around that bolt until torqued, so it suits the single-stud pads inside Elastimold 200A separable connectors. If your pad is drilled for two bolts on center, a 1-hole lug will not mate with it and you want a different configuration from the ELA lug range.
8) Is the Elastimold 02500240 lug made in the USA? We have domestic sourcing requirements.
Country of origin is the United States, which is what utility and municipal buyers with domestic-preference language in their purchase orders usually need to confirm.
