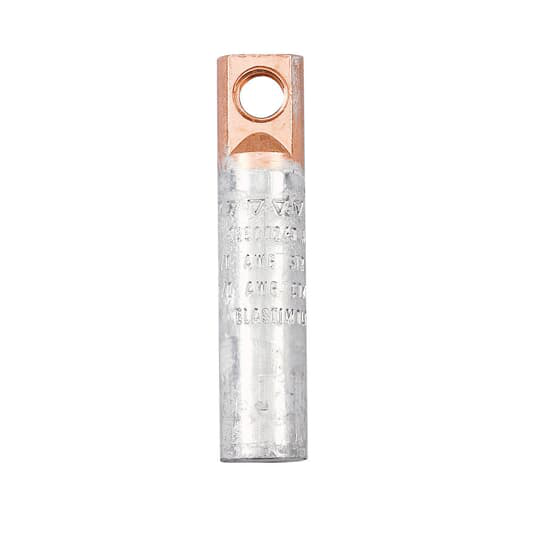

Elastimold 02500250 ELA Series 15/35kV 200A Bimetal Compression Lug, 1-Hole, 2/0 STR

Elastimold 02500250 ELA Series 15/35kV 200A Bimetal Compression Lug, 1-Hole, 2/0 STR

(No reviews yet) Write a Review

Model: 02500250

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Elastimold 02500250 ELA Series 15/35kV 200A Bimetal Compression Lug, 1-Hole, 2/0 STR

The Elastimold 02500250 is a 15/35kV, 200A-rated bimetallic compression lug (BIMET 1H LUG) engineered for use within the Elastimold ELA Series of loadbreak separable connectors found on medium-voltage underground distribution systems. This 1-hole lug design accepts 2/0 STR stranded conductors, providing a secure mechanical and electrical connection point for loadbreak elbow connector terminations used in utility and industrial underground circuits. As part of Elastimold's 02500-series lug offerings, model 02500250 shares the 15/35kV voltage class and supports current ratings up to 200A, consistent with other ELA family configurations including 161LR-C, 162LR-A, 162LR-C, 02500240, and 02500270. The bimetal lug construction is intended to help minimize galvanic corrosion between dissimilar conductor and lug materials while maintaining a dependable, code-compliant termination point for loadbreak switching operations.

Key Features

  • Lug Configuration: 1-Hole bimetallic design (BIMET 1H LUG) helps reduce galvanic corrosion risk at the conductor connection point.
  • Conductor Compatibility: Sized to accept 2/0 STR stranded conductors for proper mechanical fit and electrical continuity.
  • Voltage Class: 15/35kV rated construction, consistent with the Elastimold ELA loadbreak elbow connector family for medium-voltage underground distribution.
  • Amperage Rating: Supports loadbreak elbow configurations rated up to 200A continuous current, depending on the connector assembly used.
  • Model Range: Model 02500250 is part of the Elastimold 02500-series lug lineup, alongside 02500240 and 02500270, within the broader ELA elbow connector family that also includes 161LR-C, 162LR-A, and 162LR-C configurations.
  • Bimetal Construction: Dual-metal compression lug body built to Elastimold's standard dimensional and electrical specifications for utility-grade medium-voltage termination hardware.
  • Loadbreak Compatibility: Designed to pair with ELA series loadbreak elbow bodies that permit safe connect/disconnect of energized underground circuits using standard loadbreak switching procedures.

Technical Specifications

  • Series: ELA

Typical Applications

  • Underground Residential Distribution (URD) Systems
  • Padmount Transformer and Switchgear Terminations
  • Medium-Voltage Loadbreak Switching Operations
  • Underground Feeder and Cable Connections
  • Utility and Industrial Medium-Voltage Distribution

Why Elastimold?

Elastimold bimetallic compression lugs are engineered to deliver dependable electrical and mechanical performance within the ELA series of medium-voltage separable connectors. The 1-hole, 2/0 STR-compatible design of model 02500250 supports the 15/35kV, up to 200A demands of utility-grade underground distribution work, matching the dimensional and electrical standards shared across the broader ELA elbow connector family. Choose Elastimold components for underground connections where reliable, standardized compression lug terminations and code-compliant loadbreak performance are required.

Manufacturer Resources

Product Specs

Product Type:
Loadbreak Elbow Connector
Voltage Rating:
15/35kV
Amperage Rating:
200A
Configuration:
1-Hole Lug
Series:
ELA
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Electrical
list_batch:
ELSM-20261001
Product Material:
Bimetallic
Connection Type:
Loadbreak
Wire Size:
2/0 STR/COMPR AWG3/0 SOL/COMPT AWG

Elastimold 02500250 – Frequently Asked Questions

1) What conductor sizes does the Elastimold 02500250 compression lug accept?
The 02500250 bimetal lug is sized for 2/0 STR/compressed AWG, and also 3/0 solid/compact AWG. If your cable is stranded 2/0 or a 3/0 compact conductor, this is the right lug. Anything outside those two cases needs a different lug in the 02500 series.
2) Is the Elastimold 02500250 lug rated for 35kV underground cable?
Yes. It is a 15/35kV class lug rated to 200A, used in loadbreak terminations on medium voltage underground distribution. The same part covers both the 15kV and 35kV classes within the ELA family.
3) Will the 02500250 work with an Elastimold loadbreak elbow, or is it for deadbreak?
It is a loadbreak part. The 02500250 is built to pair with ELA series loadbreak elbow bodies, the ones rated for connecting and disconnecting energized underground circuits under standard loadbreak switching procedure. For a deadbreak elbow you need the lug specified for that connector family, not this one.
4) Is the Elastimold 02500250 a complete elbow connector or just the lug?
Just the lug. The 02500250 is the compression lug that crimps onto the cable conductor and forms the termination point inside the elbow. You still need the loadbreak elbow body and the rest of the connector kit, in the ELA series, to complete the termination. Order the elbow assembly to match the 200A, 15/35kV class.
5) Why choose a bimetal lug instead of an all-copper or all-aluminum lug on a URD termination?
Bimetallic construction puts two metals in the lug body so an aluminum conductor can terminate to a copper-contact interface without the dissimilar metal contact that drives galvanic corrosion. On underground residential distribution and padmount terminations, that matters because the connection sits in a vault or pedestal and can see moisture. If your conductor and the connector stud are the same metal, a straight single-metal lug does the job instead.
6) What does the 1-hole configuration mean for mounting the Elastimold 02500250?
One-hole means a single bolt hole on the pad, so the lug lands on a single-stud bushing or connector interface rather than a two-bolt NEMA pad. If your equipment pad is drilled for two bolts on center, a 1-hole lug is the wrong configuration for that termination.
7) Which other Elastimold 02500-series lugs should I look at if 2/0 is not my conductor size?
The 02500 lug lineup also includes the 02500240 and 02500270, which share the 15/35kV, up to 200A class used across the ELA elbow connector family. Pick by conductor size: the 02500250 is the 2/0 STR / 3/0 compact option.
8) Can I use the 02500250 on a 600A deadbreak padmount termination?
No. This lug is rated to 200A and built for loadbreak elbow terminations. A 600A deadbreak termination uses a different connector system and different termination hardware entirely, so specify to that system instead.
9) Where is the Elastimold 02500250 typically used on a distribution system?
Underground residential distribution circuits, padmount transformer and switchgear terminations, underground feeder and cable connections, and medium voltage loadbreak switching points. It is utility and industrial medium voltage work, not building branch wiring.
