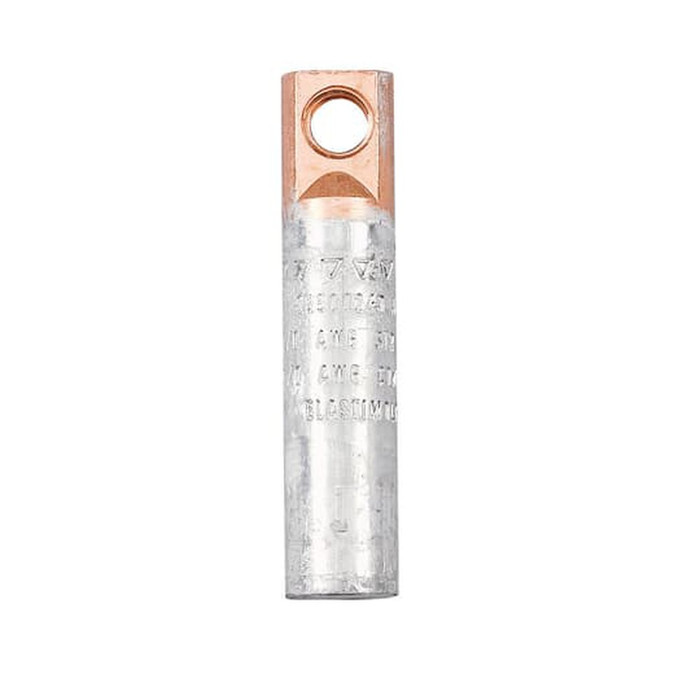

Elastimold Bimetallic Lug Connector, 1-Hole, 15/35KV, 200A

Elastimold Bimetallic Lug Connector, 1-Hole, 15/35KV, 200A

(No reviews yet) Write a Review

Model: 02500230

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Elastimold Bimetallic Lug Connector, 1-Hole, 15/35KV, 200A

The Elastimold Bimetallic Lug Connector is a 15/35KV, 200A-rated 1-hole lug (1HLUG, BIMET) engineered for medium-voltage underground distribution terminations. This family is available in two models – 02500230 and 02500260 – each sharing the same 15/35KV voltage class and 200A continuous current rating, with the bimetallic lug body allowing a reliable connection between dissimilar conductor materials while maintaining the electrical and mechanical integrity required for 15/35KV class systems. Configured as a 1-hole lug for bolt-on installation to busbars, pads, or equipment terminals, the bimetallic construction reduces galvanic corrosion concerns at the termination point and supports consistent torque and contact pressure across the connection interface. Whether selecting 02500230 or 02500260, installers get dependable, long-term performance in demanding electrical distribution environments where consistent conductivity and connector stability are critical.

Key Features

  • Voltage Class: 15/35KV rated for medium-voltage underground distribution applications.
  • Amperage Rating: 200A continuous current capacity for reliable circuit performance across both models in this family.
  • Bimetallic Construction: BIMET lug design accommodates connection between dissimilar conductor metals, reducing galvanic corrosion concerns at the termination point.
  • 1-Hole Lug Configuration: 1HLUG design simplifies bolt-on installation to busbars, pads, or equipment terminals.
  • LB Lug Body: Engineered lug body geometry supports consistent torque and contact pressure at the connection interface.
  • Model Availability: Offered as 02500230 and 02500260 to match specific conductor and installation requirements.

Technical Specifications

  • Voltage Rating: 15/35KV
  • Amperage Rating: 200A
  • Configuration: 1-Hole Lug (1HLUG)
  • Construction: Bimetallic (BIMET) Lug Body
  • Available Models: 02500230, 02500260

Typical Applications

  • Medium-Voltage Underground Distribution Systems
  • 15/35KV Class Electrical Terminations
  • Utility and Industrial Power Distribution Connections
  • Transformer and Switchgear Lug Terminations
  • Dissimilar-Metal Conductor Connections

Why Elastimold?

Elastimold components are built for the demanding electrical conditions found in medium-voltage utility and industrial distribution systems. This bimetallic lug connector family is engineered to deliver dependable, code-conscious performance at its rated 15/35KV, 200A specification, making it a trusted choice for professionals terminating conductors in critical distribution applications across both the 02500230 and 02500260 models.

Manufacturer Resources

Product Specs

Product Type:
Lug Connector
Voltage Rating:
15/35KV
Amperage Rating:
200A
Configuration:
1-Hole Lug
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Electrical
list_batch:
ELSM-20261001
Product Material:
Bimetallic
Connection Type:
Compression
Product Color:
Bare

Elastimold 02500230 – Frequently Asked Questions

1) Can an Elastimold bimetallic lug be used to land an aluminum conductor on a copper pad?
That is what the bimetallic construction is for. The Elastimold 1-hole lug connector uses a bimetallic lug body so a conductor of one metal can be terminated to a pad or busbar of another without putting the two dissimilar metals in direct contact, which is what drives galvanic corrosion at the termination.
2) Is this Elastimold lug a compression connector or a mechanical set-screw lug?
Compression. The conductor end of the Elastimold bimetallic lug is crimped, not clamped with a set screw, so you need the correct die and compression tool for the conductor you are terminating. The opposite end is a 1-hole pad for bolting to a busbar, equipment terminal, or transformer pad.
3) What is the difference between Elastimold 02500230 and 02500260?
Both are 1-hole bimetallic compression lugs rated 15/35KV, 200A. The two part numbers exist to match different conductor and installation requirements, so order by the specific model your drawing or existing termination calls out rather than treating them as interchangeable.
4) Will this lug work on a 600A elbow or deadbreak termination?
No. This is a 200A class part, which puts it with 200A loadbreak-class underground distribution terminations. A 600A deadbreak termination needs connector hardware rated for that class; do not substitute a 200A lug on it.
5) What voltage class and current rating does the Elastimold 1-hole bimetallic lug carry?
It is a 15/35KV class part with a 200A continuous rating, so it covers both 15kV and 35kV medium-voltage underground distribution terminations. Both models in the family, 02500230 and 02500260, share that same rating, so the choice between them is about the conductor and installation, not the electrical class.
6) Does a 1-hole lug give me enough rotation on a tight cabinet termination?
A 1-hole pad bolts on a single fastener, so the lug can rotate about that bolt until it is torqued down, which helps when you are aligning a conductor in a tight switchgear or transformer compartment. The tradeoff is that a single bolt carries the full mechanical load, so torque it to the equipment manufacturer's value; if your spec requires two-point fastening against rotation, you need a 2-hole lug instead.
7) Is this lug suitable for transformer and switchgear terminations?
Yes, those are the intended uses. The Elastimold bimetallic lug is built for transformer and switchgear lug terminations, utility and industrial distribution connections, and general 15/35KV class underground work. The 1-hole pad bolts directly to the equipment terminal or busbar.
8) Does the Elastimold bimetallic lug come plated or coated?
The finish is bare, with no color coating applied to the lug body. Plan on the usual field prep for a bare compression lug: wire brush the pad mating surface and apply joint compound where your spec calls for it.
