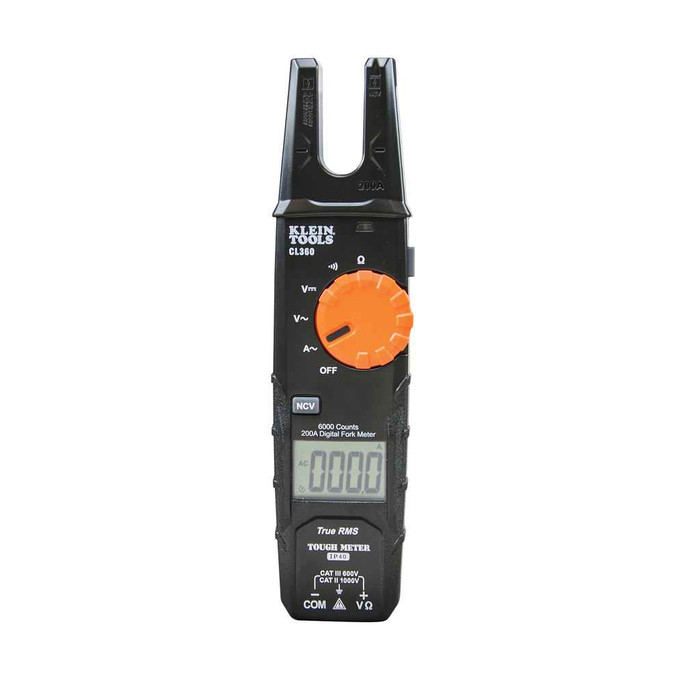

Klein Tools CL360 Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp

Klein Tools CL360 Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp

(No reviews yet) Write a Review

Model: CL360
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$179.77
$98.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp

  • Features

    • Jaw and Housing - CATIV 600V/CATIII 1000V; Electrical - CATIII 600V/CATII 1000V; Class 2, Double Insulation
    • Backlit display for clear readings
    • Low battery indicator and easily accessible battery compartment
    • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)
    • Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
    • Rugged Klein TOUGH METER is built to withstand a 9.9-Foot (3m) drop
    • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
    • Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
    • Non-contact voltage tester integrated into the jaw
    • Includes a carrying case, test leads and 2 x AAA batteries
    • Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
    • Powers off automatically after 15 minutes of non-use to conserve battery life

  • Warnings

    • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
    • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
    • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
    • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
    • Before each use, verify meter operation by measuring a known voltage or current.


CL360 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Ac Voltage:
600V
Auto Power Off:
Yes
Batteries:
2 x AAA
Current:
200A AC
Dc Polarity Indicator:
Yes
Dc Voltage:
1000V
Display:
6000 Count LCD
Drop Protection:
9.9' (3m)
Ingress Protection:
IP40
Item Depth:
8.3900 in
Item Height:
1.3800 in
Item Weight:
0.4000 lbs
Item Width:
2.1200 in
Jaw Size:
0.58" (1.5 cm) Opening
Ohms Resistance:
60MΩ
Overall Height:
1.38" (3.5 cm)
Overall Length:
8.39" (21.3 cm)
Overall Width:
2.12" (5.4 cm)
Replacement Parts:
69410
Department:
Electrical
Product Group:
Test & Measurement
Product Subgroup:
Electrical Testers
Product Type:
Current Meter
Product Voltage:
600V AC, 1000V DC
Product Function:
AC Current, AC/DC Voltage, Continuity, Resistance
Product Details:
Open Jaw Fork Current Meter
Product Material:
Plastic/Electronics
Product Weight:
6.40 oz (180.0g)
Product Depth:
8.39 in
Product Width:
2.12 in
Product Height:
1.38 in

Klein Tools CL360 – Frequently Asked Questions

1) Will the Klein CL360 open jaw fit around 3/0 cable?
Yes. The CL360 open fork jaw has a 0.58 inch (1.5 cm) opening, which Klein rates for cables up to 3/0. Anything with a conductor diameter over 0.58 inch will not seat in the fork, so for larger feeders or bundled conductors you need a full clamp meter with a bigger jaw.
2) Can the CL360 fork meter measure DC current?
No. Current measurement on the CL360 is AC only, up to 200A through the fork. DC shows up on the voltage side: it reads up to 1000V DC through the test leads and has a DC polarity indicator. If you need DC amps on a solar or battery system, this is the wrong meter.
3) What CAT rating does the Klein CL360 carry, and can I use it in a 480V panel?
Two ratings apply to different parts of the tool. The jaw and housing are CAT IV 600V / CAT III 1000V. The electrical (test lead) side is CAT III 600V / CAT II 1000V. A 480V three-phase panel falls inside CAT III 600V, so lead measurements there are within rating. Voltage measurement tops out at 600V AC.
4) Do I need a separate non-contact voltage tester if I carry the CL360?
No, the NCVT is built into the fork itself, so you can sweep a conductor for live voltage without swapping tools or attaching leads. That plus AC amps through the jaw and AC/DC voltage, resistance and continuity through the leads covers most troubleshooting calls with one instrument.
5) Is an open fork meter like the CL360 better than a clamp meter for panel work?
The fork wins where the jaw of a clamp will not fit. You slide it sideways onto a conductor in a crowded panel or gutter instead of needing room to open and close a clamp around it. The tradeoff: the fork reads AC current only, up to 200A, on cable up to 0.58 inch diameter. For DC amps or for large feeders, a conventional clamp meter is the right call.
6) What comes in the box with the Klein CL360?
The CL360 ships with a carrying case, test leads, and two AAA batteries, so there is nothing else to buy to start using it. Test leads stow in built-in holders on the meter body. The replacement lead set is Klein part 69410.
7) Is the CL360 accurate on VFD and electronically controlled loads?
The CL360 uses auto-ranging True RMS measurement, which is what you want on the distorted waveforms from variable frequency drives, LED drivers and switching supplies. An averaging meter under-reads those. Readings come up on a 6000 count backlit LCD.
8) How big is the CL360 and will it fit a pouch on my tool belt?
It measures 8.39 x 2.12 x 1.38 inches and weighs 6.4 oz (180 g), so it is slim enough to ride in a pouch or a back pocket rather than the tool bag. The listed overall length is 21.3 cm.
9) How high does the CL360 read on resistance and does it have continuity?
Resistance goes to 60 megohms, high enough to check insulation-adjacent readings, open thermostats, and high-value control circuit paths, and continuity testing is built in on the same leads. Both are lead measurements, not fork measurements.
10) Does the CL360 shut itself off if I leave it on in the truck?
Yes, auto power off kicks in after 15 minutes of non-use, and there is a low battery indicator plus a battery door you can reach without tearing the meter apart. It runs on two AAA cells.
11) Can I standardize my maintenance techs on the CL360 for light industrial work?
It is built for residential, office and light-industrial environments and meets the EMC requirements for basic and controlled electromagnetic environments. Class 2 double insulation, CAT IV 600V jaw and housing, and a 3m drop rating make it a reasonable fleet tool for facility and MRO crews. Order under Klein part number CL360.
