Emtek 1165 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

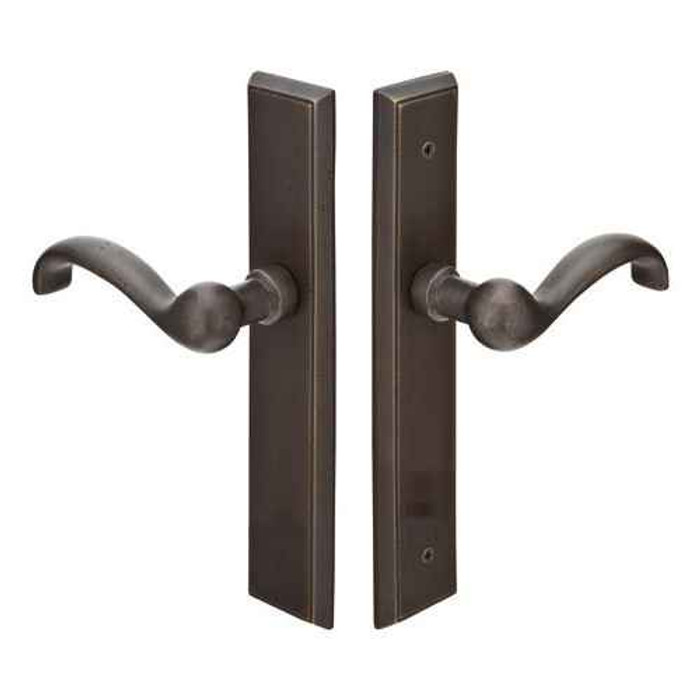

Emtek Emtek 1165 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Dummy Pair EMTEK-1165

Emtek 1165 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Dummy Pair

(No reviews yet) Write a Review

Model: 1165-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1165 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Dummy Pair

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1165
(CTC) Center-to-Center:
3-5/8"
Product Function:
Dummy
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1165-FB – Frequently Asked Questions

1) Does the Emtek 1165 multi point trim include the multi point mortise lock body?
No. The Emtek 1165 is trim only, a dummy pair of sandcast bronze plates with handles. The multi point mortise lock box is not included, so you either reuse the lock already in the door or source the lock body separately. On a dummy pair there is no latching function at all, which is why it suits the inactive leaf of a swinging patio door.
2) What door thickness does the Emtek 1165 sandcast bronze trim fit?
It covers 1-3/8 inch through 1-3/4 inch doors, which spans standard residential patio and entry door thicknesses. Door thickness is a field you fill in when ordering, so give the actual measured thickness of the slab. Mounting is surface mount with no door prep required beyond the existing multi point lock cutouts.
3) Will the Emtek 1165 trim line up with my existing multi point lock hole spacing?
The plates are built for Door Configuration #1, with a 3-5/8 inch center-to-center between the handle spindle and the cylinder hole, and the cylinder sits below the handle. Measure that dimension on your existing trim before ordering; if your lock uses a different spacing or puts the cylinder above the handle, you need a different Emtek configuration.
4) Which patio door brands does this Emtek multi point trim reference?
Emtek lists this configuration against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior doors. Those are the reference manufacturers for Door Config #1, so confirm your door's lock matches the #1 layout and the 3-5/8 inch center-to-center before ordering.
5) Do I have to specify handing on the Emtek 1165 dummy trim?
Yes, handing is required: right hand or left hand. You also pick the lever style from ten sandcast bronze options (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma) and the finish. Get the hand wrong and the lever sweep and plate orientation will be backwards on the opening.
6) What finishes are offered on the Emtek 1165 sandcast bronze plates?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). They are part of Emtek's Sandcast Bronze collection, so the same finishes carry across other sandcast bronze levers and trim if you are matching hardware on adjacent doors.
7) Is this Emtek trim keyed or does it take a cylinder?
The 1165 dummy pair is not keyed and is not electronic. There is no cylinder supplied with it. The plate does carry a cylinder position below the handle in the American cylinder format, which is what the keyed versions of this configuration use, but as a dummy set it is pull hardware only.
8) How big are the plates on the Emtek 1165 rectangular trim?
Each plate measures 2 x 10 inches in the rectangular style. That is a narrow footprint suited to patio door stiles, but check your stile width and that the existing trim's screw holes fall within the plate before you swap.
9) Is the Emtek 1165 trim suitable for a commercial opening?
Emtek classes it as residential hardware. It is sandcast bronze trim for swinging patio doors in homes; for high-traffic commercial entrances you want a graded commercial lockset rather than a residential multi point dummy trim.
