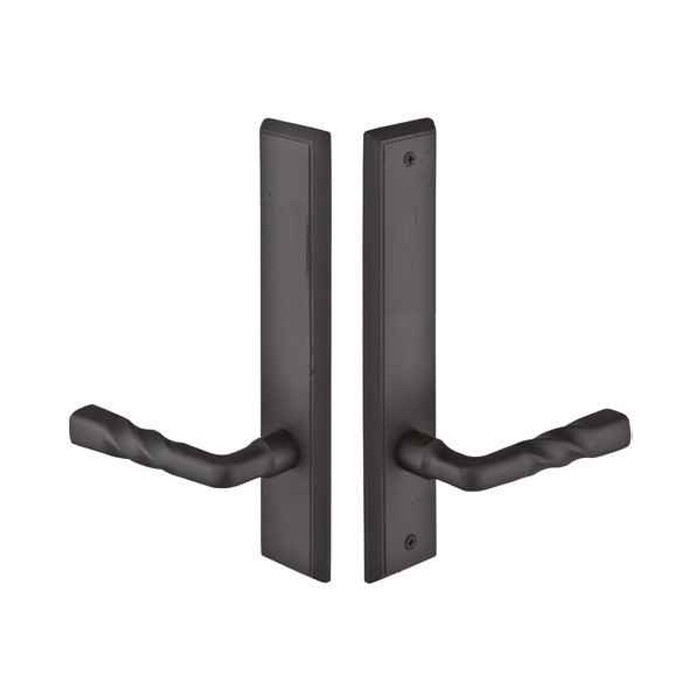

Emtek Emtek 1365 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Dummy Pair EMTEK-1365

Emtek 1365 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Dummy Pair

(No reviews yet) Write a Review

Model: 1365-FB
From the Sandcast Bronze Collection
$416.00
$332.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$416.00
$332.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1365 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Dummy Pair

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1365
(CTC) Center-to-Center:
4-1/8"
Product Function:
Dummy
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1365-FB – Frequently Asked Questions

1) Does the Emtek 1365 multi point trim include the multi point mortise lock body?
No. The 1365 is trim only, and the set is plates and handles. The multi point mortise lock box has to be ordered separately, along with the lever style you want. If you're replacing a whole patio door lock, the trim alone won't operate anything.
2) What is a dummy multi point handle set used for on a patio door?
A dummy set has no working latch or cylinder, so it mounts as a pull on the inactive leaf of a swinging patio door pair, or on a door where the operating hardware lives elsewhere. The 1365 is configured as a dummy, it isn't keyed, and there's no electronic function. Pick the active-leaf trim if you need the handle to retract a latch.
3) Will the Emtek 1365 handle set fit a 1-3/4 inch door?
Yes, the 1365 covers 1-3/8 to 1-3/4 inch door thickness, which spans both the common older interior thickness and standard 1-3/4. Door thickness is an option you enter when ordering, so state the actual measured thickness of your slab.
4) What is the center-to-center spacing on the Emtek 1365 plate, and will it line up with my existing multi point door?
Center-to-center is 4-1/8 inches, with the cylinder position above the handle. That spacing and the Door Configuration #3 layout are what decide whether the plate lands over the existing holes in your patio door. Measure the spacing on the door you're matching before you commit.
5) Does Emtek multi point trim work on Andersen patio doors?
Andersen is the referenced door manufacturer for the 1365 in Door Configuration #3. Configuration is the thing that matters on multi point trim, so match the config number and the 4-1/8 inch center-to-center against the door you have rather than the brand name alone.
6) What do I need to specify when ordering the Emtek 1365 dummy pair?
Four things: finish, lever style, handing, and door thickness. Finish is Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing is right or left. Any Sandcast Bronze lever can go on these plates.
7) Do I have to cut the door to install Emtek sandcast bronze multi point trim?
The 1365 plates are surface mount with no door prep required. Bear in mind the multi point mortise lock itself, ordered separately, is what drives the prep on an operating door. On a dummy application the plates just fasten to the face.
8) How do I determine handing for an Emtek sandcast bronze patio door handle set?
Handing is a required choice on the 1365 and it's right hand or left hand. Stand outside the door, on the exterior side: if the hinges are on your right, it's right hand. Getting it backwards puts the lever throw and the plate orientation on the wrong side.
9) How big are the Emtek 1365 rectangular plates?
The plates measure 2 x 10 inches in the rectangular style. That footprint is what has to sit within the stile face of your patio door, so check the flat width of the stile against the 2 inch dimension before ordering.
10) Is the Emtek 1365 handle set approved for commercial openings?
Emtek lists the 1365 as residential. For a commercial patio or entry opening under a spec, look at Grade 1 or Grade 2 commercial hardware instead, since residential trim isn't written to those cycle and strength requirements.
11) Is Emtek 1365 sandcast bronze trim solid bronze or plated?
Both the material and the substrate are bronze, from Emtek's Sandcast Bronze collection, so the finish is on solid bronze rather than a plated base. Sandcast pieces carry visible casting texture, which is the point of the look, and the three bronze finishes will each age differently in an exterior patio door application.
12) What cylinder does Emtek multi point lock trim take?
The cylinder classification is American, positioned above the handle. On the 1365 dummy configuration there's no keying, so the cylinder question really applies to the matching active-leaf trim and the multi point lock you pair with it. If you're keying an entry set alike, the American cylinder format is what your locksmith will be working with.
