Emtek Emtek 1272 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage EMTEK-1272

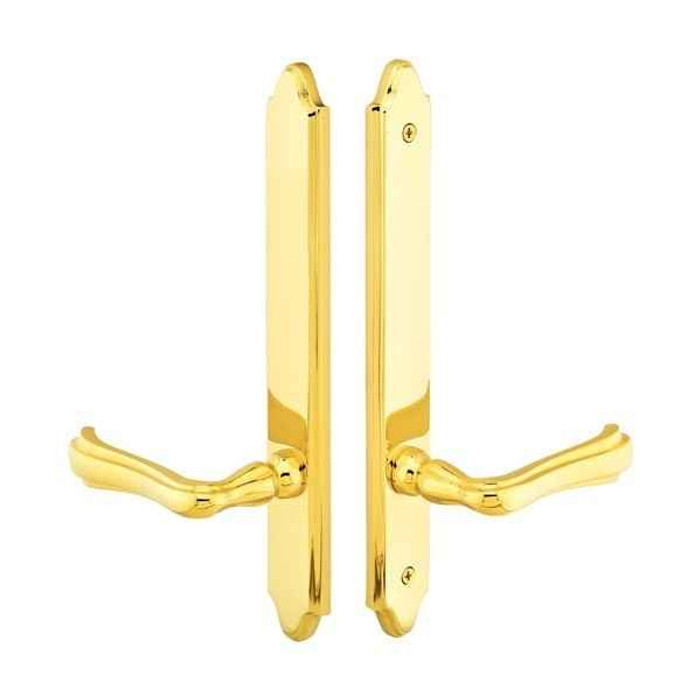

Emtek 1272 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1272-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1272 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Concord
Theme:
American Classic
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1272
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1272-US15 – Frequently Asked Questions

1) Does the Emtek 1272 multi point trim include the mortise lock body?
No. The 1272 is trim only, a Concord style plate set with handles. The multi point mortise lock box is not included, so you need the lock gear already in the door or ordered separately.
2) What door thickness and bore does the Emtek 1272 Concord trim require?
It suits doors 1-3/8 inch to 1-3/4 inch thick with a 2-1/8 inch cross bore, and the backset adjusts between 2-3/8 inch and 2-3/4 inch. Handle center-to-center is 3-5/8 inches, so the existing hole pattern in the door has to match that spacing.
3) Does the 1272 trim lock, or is it passage only?
Passage only. The 1272 is a non-keyed function with no cylinder, so it operates the multi point gear to latch the door but gives you no key locking. If the patio door needs to be keyed from outside, you need a keyed version of the Concord multi point trim instead.
4) Which patio door brands is this Emtek multi point trim referenced for?
Door Configuration #2, which Emtek references to BiltBest, G-U, Hurd (Energy Saver) and Andersen swinging patio doors. Configuration is what determines whether the plate holes line up with your existing gear, so match the config number to the door before ordering.
5) What do I have to specify when ordering the Emtek 1272?
Three things beyond finish: lever style, handing, and door thickness. Handing is right hand or left hand and is required. Lever choice is open across the brass lever range, from L-Square, T-Bar and R-Bar textures to Athena, Luzern, Milano, Rustic, Santa Fe and Hammered patterns. Finish comes in eight options: Oil Rubbed Bronze, Satin Nickel, Pewter, Flat Black, Polished Chrome, Polished Brass Lifetime, Unlacquered Brass, and French Antique.
6) How big are the plates on the Emtek Concord multi point trim?
The Concord plates measure 1-1/2 x 11 inches. That narrow width matters on a patio door with a slim stile, so check the flat area of your door panel against 1-1/2 inches before committing.
7) Will the levers sag over time on this Emtek patio door trim?
No. Each Emtek multi point trim set now ships with a spring assist that returns the lever to neutral, which is what stops the droopy handle problem common on older patio trim.
8) Is the Emtek 1272 solid brass, and is it rated for commercial use?
Solid brass, both plate and substrate, from Emtek's Brass collection. It is a residential product intended for swinging patio doors, not a commercial grade device, so for a high traffic entry in a commercial building look at commercial door hardware instead.
9) Does the round or square latch faceplate matter for the 1272?
The latch faceplate comes round corner or square corner. Match it to the mortise prep already cut in the door edge, since a square corner plate will not sit flush in a routed radius pocket without rework.
