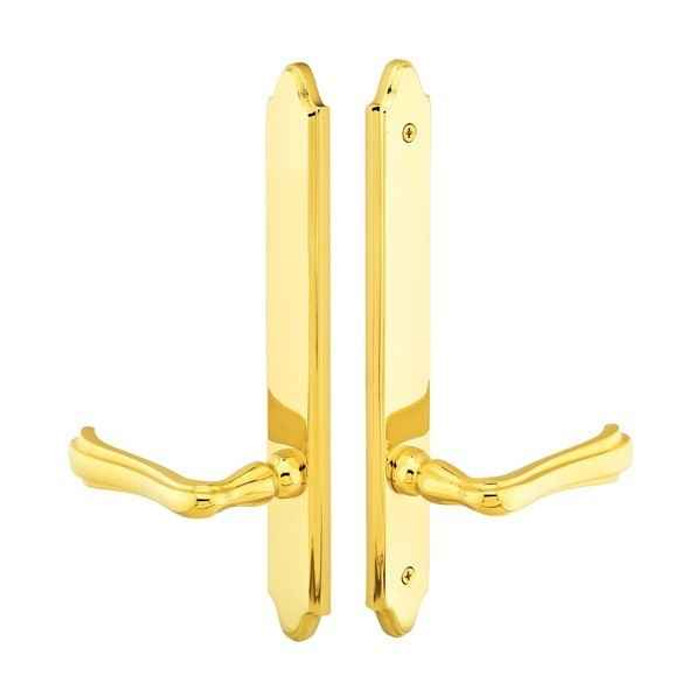

Emtek Emtek 1372 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage EMTEK-1372

Emtek 1372 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1372-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1372 Multi Point Lock Trim (Door Config #3) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Concord
Theme:
American Classic
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1372
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1372-US15 – Frequently Asked Questions

1) Does the Emtek 1372 Concord multi point trim include the multi point lock itself?
No. The Emtek 1372 Concord set is trim only: plates and handles. The multi point mortise lock box is a separate order, so you need the correct Emtek multi point lock body for your door before this trim is usable. It's built for swinging patio doors.
2) Will Emtek 1372 trim fit an Andersen patio door?
Andersen is the reference door manufacturer for this multi point trim, so the 1372 Configuration #3 is the set Emtek points at those openings. Confirm the configuration number and handing against the door, since Emtek splits its multi point trim by configuration rather than by brand alone.
3) What does Door Configuration #3 mean on Emtek multi point trim?
Emtek numbers its multi point trim by how the door is set up, and the 1372 is Configuration #3 with a non-keyed passage function: no cylinder in the trim, handle operates the multipoint only. On this one the cylinder position is designated above the handle and the cylinder classification is American, so if your opening actually needs a key you want a keyed version of the same configuration rather than this one.
4) Do I have to specify handing for the Emtek 1372?
Yes, handing is required: right hand or left hand. Pick it from the swing of the patio door as you stand outside. Lever style is also a required choice, and door thickness is an optional field you should fill in when your door is not the assumed standard.
5) How big are the Concord plates and what is the center-to-center spacing?
The Concord style plate measures 1-1/2 by 11 inches, with 4-1/8 inch center-to-center between the handle and the second point on the plate. Measure your existing plate footprint against that 1-1/2 inch width before ordering, since a narrow plate won't cover a cut-out left by a wider trim.
6) What finishes does the Emtek 1372 Concord trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). All are on brass plates, so if you are matching other brass Emtek hardware on the same elevation the substrate and finish codes line up.
7) Can I use any Emtek lever with this trim?
Any Emtek brass lever can be ordered with it, and the required lever selection runs 51 styles, from the L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Geneva, Milano, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and more. That's how you match the patio door to the interior levers in the same house.
8) Do the handles on this Emtek multi point trim sag over time?
Each multi point trim set now ships with Emtek's Spring Assist function, which returns the lever to neutral and is there specifically to stop handles sagging. Worth knowing on a patio door that gets pulled on daily.
9) Is the Emtek 1372 suitable for a commercial building?
It's a residential-rated product, intended for swinging patio doors in homes. For a commercial opening needing a graded lock you want commercial mortise or cylindrical hardware instead, not residential multi point patio trim.
10) Does the latch faceplate come square or round corner?
Both are covered: the latch faceplate is available round or square corner, so it can drop into an existing mortise pocket either way. Match whichever the current prep in the door edge uses to avoid patching.
