Emtek 1572 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

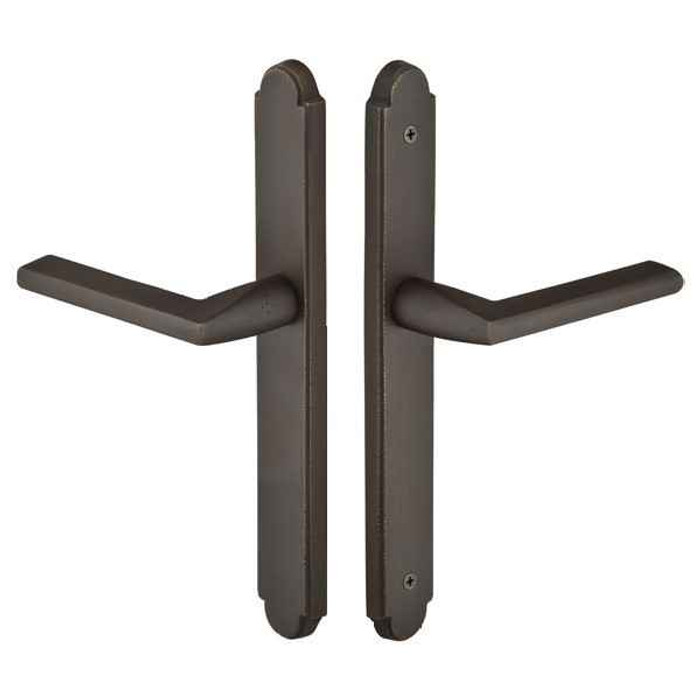

Emtek Emtek 1572 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage EMTEK-1572

Emtek 1572 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1572-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1572 Multi Point Lock Trim (Door Config #5) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Concord
Theme:
American Classic
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1572
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1572-US15 – Frequently Asked Questions

1) Does the Emtek 1572 multi point trim include the mortise lock body?
No. The 1572 Concord trim set is plates and handles only. The multi point mortise lock box is not included, so you need the gearbox already in the door or ordered separately. Buy this when the multi point lock in your patio door still works and you want new interior and exterior trim.
2) Will the Emtek 1572 trim line up with my existing multi point lock holes?
The critical number is the center-to-center of 3-5/8 inches between the handle spindle and the cylinder hole, with the cylinder sitting below the handle. Cross bore is 2-1/8 inches and the backset adjusts between 2-3/8 and 2-3/4 inches. Measure your existing door prep against those before ordering, since the plate covers 1-1/2 by 11 inches.
3) What door brands does this Emtek Concord multi point trim fit?
Emtek lists this multi point trim against Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield doors. Those are the door and gearbox makers whose prep the Door Configuration #5 layout matches.
4) What does non-keyed passage mean on a multi point patio door trim?
Passage function means the lever set has no key cylinder and no lock in the trim itself. It operates the multi point gearbox latch and the handles turn freely from both sides. If you need the door to key lock, this is the wrong trim; you want the keyed version with the Euro profile cylinder prep filled.
5) Do I have to specify handing on this Emtek multi point trim?
Yes, handing is required. Right hand or left hand must be chosen, and on a swinging patio door that is determined from the outside looking at the door: the side the hinges sit on with the door swinging away from you. Getting it wrong means the lever and plate orientation will not match the opening.
6) What door thickness does the Emtek 1572 trim work on?
1-3/8 to 1-3/4 inch doors. There is also a door thickness field on the order, so if your patio door slab is thicker than standard, state the measured thickness when you order rather than assuming the standard spindle length works.
7) Can I pick my own lever design with the Emtek 1572 Concord plates?
Lever style is a required selection and the choice is broad: the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus cast designs including Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer, Triton, Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon & Reed, Rope, Rustic, Santa Fe, Wembley, Arts & Crafts and Hammered. Any brass lever can be ordered with it.
8) What finishes does the Emtek Concord multi point trim come in, and will it match my other Emtek hardware?
Eight brass finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL) and French Antique (US7). These are Emtek's standard brass collection codes, so specifying the same US number used on your interior brass levers and bolts keeps the whole opening consistent.
9) Will these levers sag over time on a heavy patio door?
Emtek now builds a spring assist into every multi point lock trim. It returns the lever to the neutral horizontal position and is there specifically to stop the drooping handle problem common on tall swinging patio doors.
10) Is the Emtek 1572 trim suitable for a commercial entry?
It is a residential product, made of solid brass, for swinging patio doors. For a commercial storefront or a code-driven egress opening you need a rated commercial lockset rather than multi point patio trim.
11) Round or square corner latch faceplate on the Emtek multi point trim?
Both corner styles are covered. Match whichever your existing door edge mortise was routed for, square corner on a chiseled prep and round corner on a router-cut prep, so you are not patching the door edge.
