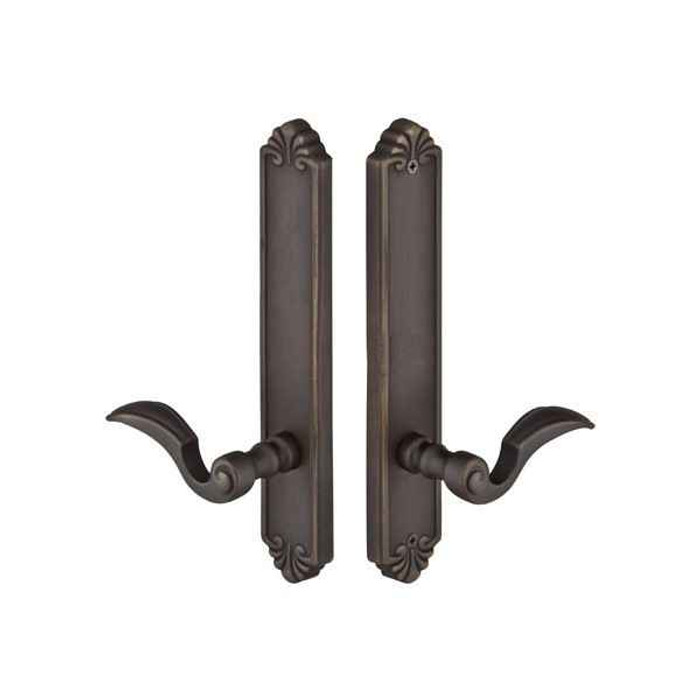

Emtek Emtek 1344 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1344

Emtek 1344 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1344-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1344 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1344
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1344-MB – Frequently Asked Questions

1) Does the Emtek 1344 multi point trim include the multi point lock mechanism, or is it handles only?
Trim only. The Emtek 1344 set includes the plates and handles; the multi point mortise lock box has to be sourced separately. If you are replacing worn or dated hardware on a swinging patio door that already has a working multi point lock body in the door edge, this is the right part. If the lock mechanism itself has failed, you need the lock box too.
2) What does Door Configuration #3 mean on an Emtek multi point trim?
Configuration #3 on the Emtek 1344 is the non-keyed setup for a semi-active (inactive) door leaf: a fixed dummy handle on the exterior and an operating lever on the interior that throws and retracts the multi point lock. There is no cylinder and no key on this configuration. It is the leaf of a French or patio pair you normally keep shut and only open when you need the full width.
3) Will the Emtek 1344 cover the holes from my existing multi point handle set?
The plates measure 2 by 10-1/2 inches and the handle-to-spindle center-to-center spacing is 4-1/8 inches. Multi point trims only line up if that CTC matches the gearbox prep already in your door, so measure from the existing handle hub to the cylinder or thumbturn hole before ordering. The Tuscany plate footprint will hide typical prep within that 2 by 10-1/2 inch area.
4) Does this Emtek Tuscany trim work on Andersen patio doors?
Andersen is the referenced door manufacturer for the Emtek 1344 trim, and the 4-1/8 inch center-to-center spacing is what has to match your door's multi point gearbox. Confirm the existing handle-to-cylinder spacing on the leaf before you order.
5) What do I have to specify when ordering the Emtek 1344 trim?
Four things. Finish, in Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, from Medici, Napoli, Octagon, or Padua. Handing, right or left. And your door thickness, which is an optional entry but worth giving so the spindle length suits the slab.
6) Is the Emtek 1344 handed, and how do I tell which hand I need?
Handing matters here, and it is a required selection: right hand or left hand. On a pair of patio doors, the semi-active leaf is the one you keep closed, and its hand is determined the same way as any door, by which side the hinges fall on when you stand outside facing it.
7) Do I need to order the levers separately for the Emtek 1344?
No, the set comes with plates and handles. The lever style is a selection you make on the order, and the 1344 accepts any of Emtek's Lost Wax Cast Bronze Tuscany levers, so you can match the levers already on the entry or interior doors in the same house.
8) Will the levers sag over time on this Emtek multi point trim?
Each Emtek multi point lock trim now ships with a spring assist that returns the lever to the neutral horizontal position, which is what stops the droop you see on older patio door handles.
9) Can I add a key cylinder to the Emtek 1344 later?
The 1344 is the non-keyed configuration, with a fixed exterior handle and no cylinder prep in the exterior plate. If you want the leaf to lock with a key from outside, order the keyed configuration of the Tuscany multi point trim instead. Emtek's keyed configurations take an American standard cylinder positioned above the handle.
10) Is the Emtek 1344 suitable for a commercial entrance?
It is a residential swinging patio door product, cast bronze trim for French and patio openings in homes. For a commercial storefront or a high traffic institutional entrance, look at a Grade 1 commercial lockset or exit device instead.
11) What is the finish and material on the Emtek Tuscany 1344 plates?
Lost wax cast bronze, solid bronze substrate rather than plated zinc, in the Tuscany Bronze collection. Two finishes are offered: Flat Black Bronze and Medium Bronze. Both are living bronze finishes, so they will develop patina with exposure, which is the point of the collection.
