Emtek 1244 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

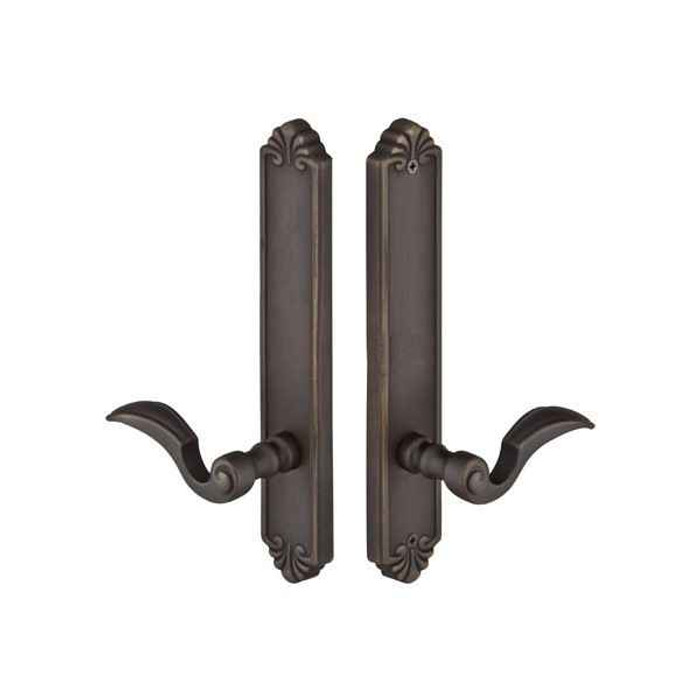

Emtek Emtek 1244 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1244

Emtek 1244 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1244-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1244 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1244
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1244-MB – Frequently Asked Questions

1) Does the Emtek 1244 multi point trim include the lock body, or just the plates and handles?
Trim only. The Emtek 1244 set includes the plates and handles; the multi point mortise lock box is not included. You order the gearbox separately from the door manufacturer or lock supplier, then dress it with this trim.
2) What does the non-keyed fixed handle outside / operating handle inside function on the Emtek 1244 actually do on a patio door?
It is the semi-active (inactive) leaf trim of a French or swinging patio door pair. Outside you get a fixed handle that does not retract anything, and inside the lever operates the multi point lock. There is no cylinder in this one, so the leaf is not keyed from outside; the keyed function lives on the active door.
3) What is Door Configuration #2 on Emtek multi point trim and how do I know it is the one I need?
Configuration refers to the hole pattern in the door and the position of the lever and cylinder prep. The 1244 is Configuration #2 with a 3-5/8 inch center-to-center between the handle and the cylinder position, and the cylinder position sits above the handle. Measure your existing prep on the door leaf; if the spacing does not match 3-5/8 inches, a different configuration number is required.
4) Which patio door brands does this Emtek Configuration #2 trim reference?
Emtek lists BiltBest, G-U, Hurd (Energy Saver) and Andersen as the reference door manufacturers for Configuration #2 trim. Confirm the hole pattern on your actual leaf against the 3-5/8 inch center-to-center before ordering, since manufacturers change preps across production years.
5) Do I have to specify handing and lever style when ordering the Emtek 1244?
Yes, both are required. Handing is right hand or left hand, and lever style is chosen from Medici, Napoli, Octagon or Padua. There is also an optional door thickness entry if your leaf is other than standard. Finish comes in Flat Black Bronze (FB) or Medium Bronze (MB).
6) If I need the keyed active leaf instead of the semi-active one, is the 1244 still right?
No. The 1244 has no cylinder and no key function, so it only dresses the semi-active leaf. For the active door you need the keyed Configuration #2 Tuscany trim with the American cylinder prep above the handle. Match the same configuration number, 3-5/8 inch center-to-center, finish and lever style so the pair looks identical.
7) Will the Emtek 1244 trim match my other Tuscany bronze door hardware?
It is part of the Tuscany Bronze collection in lost wax cast bronze, with 2 x 10-1/2 inch plates, and it can be ordered with any Tuscany lost wax cast bronze lever. So it keys visually to the rest of the Tuscany bronze line on your entry and interior doors, in either Flat Black Bronze or Medium Bronze.
8) Do the Emtek Tuscany multi point levers sag over time?
Emtek now builds a spring assist into each multi point lock trim set. It returns the lever to the neutral horizontal position and is there specifically to stop handle sag, which is the common complaint on heavy cast bronze levers.
9) Is this Emtek multi point trim rated for commercial openings?
No. The 1244 is catalogued as residential swinging patio door hardware. For a commercial entrance under a spec that calls for graded hardware, this is not the trim to use.
10) Is there an electronic or smart version of this Emtek multi point trim?
No, the 1244 is purely mechanical trim with no electronic option. The inside lever drives the multi point gearbox by hand.
