Emtek 1644 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

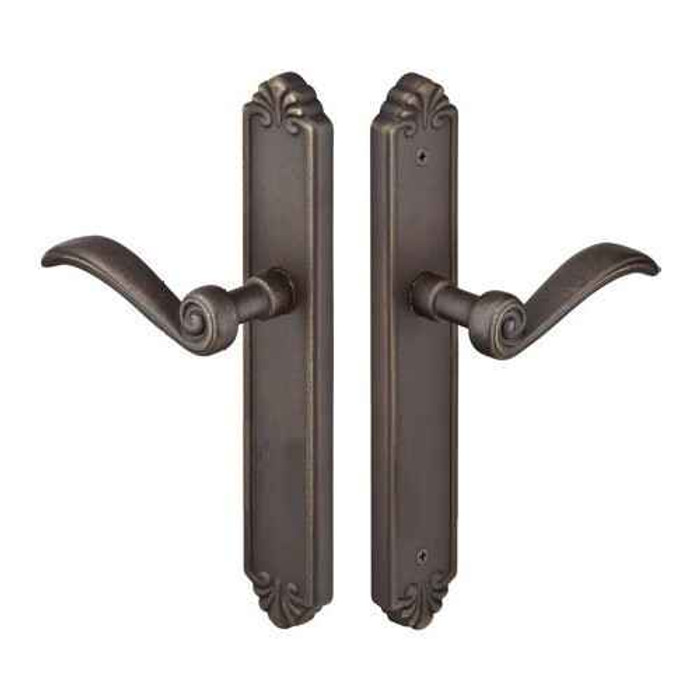

Emtek Emtek 1644 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1644

Emtek 1644 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1644-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1644 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1644
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1644-MB – Frequently Asked Questions

1) Does the Emtek 1644 multi point trim include the multi point mortise lock body?
No. The Emtek 1644 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box has to be sourced separately, usually from the door manufacturer, since the gearing is built into the door panel.
2) What does Door Configuration #6 mean on Emtek multi point trim, and is it the right one for my door?
Configuration #6 on the Emtek 1644 is the non-keyed semi-active arrangement: a fixed (dummy) handle on the exterior and an operating lever on the interior. That is what you use on the inactive or semi-active leaf of a French pair, where the panel is thrown by the inside lever and there is no cylinder. If your door is the active leaf that needs to be keyed from outside, this is the wrong configuration.
3) Will the Emtek 1644 trim match the hole spacing on my existing multi point door?
The plates are 2 by 10-1/2 inches with 3-5/8 inch center-to-center spacing, and the cylinder position is below the handle. Measure the existing plate length and the CTC on your door before ordering; Emtek lists Milgard and Pella as reference door manufacturers for this trim.
4) What do I have to specify when ordering the Emtek 1644 Tuscany trim?
Four things. Finish, either Flat Black Bronze (FB) or Medium Bronze (MB). Lever style: Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing, right or left. And your door thickness, which is an optional entry but worth giving so the spindle and fasteners suit the panel.
5) Why does handing matter if the outside handle is fixed?
Handing sets which way the lever is oriented and which side the plate's cylinder cut-out and spindle land on, so a right hand trim will not read correctly on a left hand panel. Handing is a required selection on the Emtek 1644, so establish the swing before you order.
6) Is there a keyhole in the Emtek 1644 exterior plate?
No cylinder on the 1644. It is a non-keyed trim, so the exterior side is a fixed pull with no keyed entry. Emtek's multi point trims are set up for American cylinders when a keyed configuration is used, but that is a different configuration number, not this one.
7) Will the levers sag over time on these Emtek patio door trims?
Every current Emtek multi point trim, including the 1644, ships with the Spring Assist function, which returns the lever to neutral and keeps the handle from drooping. That is the common failure complaint on older patio door trim and it has been designed out here.
8) Can I use the Emtek 1644 on a commercial storefront or apartment entry?
Emtek classes the 1644 multi point trim as residential. It is intended for swinging patio doors in homes, not for commercial openings where graded, cycle rated hardware is specified. For a commercial entry, look at Grade 1 mortise lock hardware instead.
9) What material and finishes are the Tuscany style multi point plates?
Lost wax cast bronze, in the Tuscany Bronze collection, offered in Flat Black Bronze (FB) and Medium Bronze (MB). Cast bronze develops its own patina outdoors, which is part of why it gets specified on high end swinging patio doors. Any Tuscany bronze lever in the line can be paired with the plates.
10) Is the Emtek 1644 electronic or does it accept a smart lock?
Purely mechanical. The 1644 is not an electronic trim and has no provision for a keypad or motor drive; the inside lever operates the multi point gearing directly.
