Specifications:
- Door Configuration: Configuration #5
- Plate Size: 2" x 10.5"
- Material: Lost Wax Cast Bronze
- Plate Style: Tuscany
- Keyed: No
- Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
- Product Type: Multi Point Lock Trim

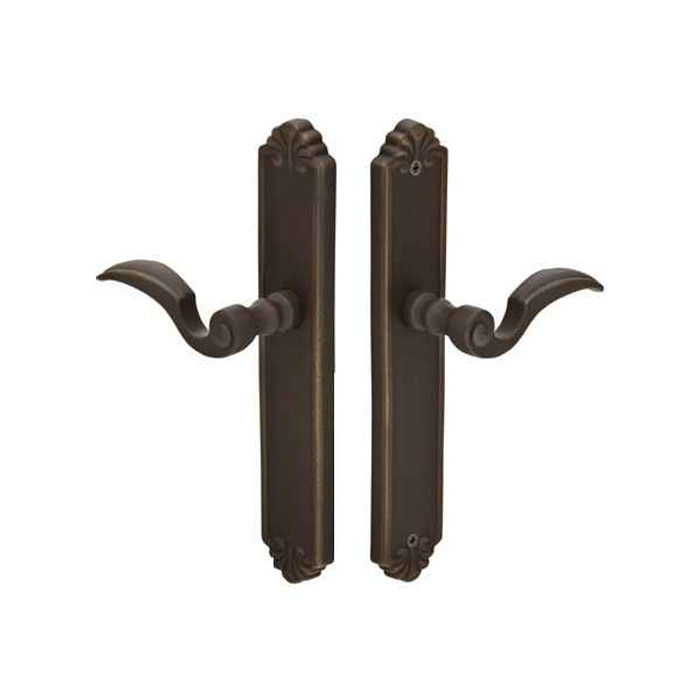

Emtek 1544 Multi Point Lock Trim (Door Config #5) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Tuscany Bronze
- Cylinder Position:
- Below Handle
- Door Configuration:
- #5
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
- Series:
- Tuscany
- Theme:
- Tuscany
- MAP Policy:
- Yes
- Product Model:
- 1544
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 2" x 10-1/2"
- Cylinder Classification:
- Euro Profile
- Product Style:
- Tuscany Bronze
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1544-MB – Frequently Asked Questions
1) Does the Emtek 1544 multi point trim include the multi point lock body?
No. The Emtek 1544 is trim only, plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock mechanism already in the door or ordered alongside it.
2) Which door brands does the Emtek Tuscany multi point trim fit?
Emtek lists it against multi point systems from Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. Confirm your gearbox uses a 3-5/8 inch center-to-center Euro profile layout.
3) Will the Emtek 1544 trim line up with my existing multi point lock hardware?
It is drilled 3-5/8 inch center-to-center between the handle and the cylinder hole, with the cylinder position below the handle and a Euro profile cylinder prep. Measure from the spindle hole down to the cylinder hole on your existing trim; if that measures 3-5/8 inches and the cylinder is a Euro profile, the plates match your prep.
4) What do I have to specify when ordering the Emtek 1544?
Four choices. Finish, in Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, from Medici, Napoli, Octagon or Padua. Handing, right or left. And your door thickness, which is an optional entry but worth giving so the spindle and fasteners suit the slab.
5) Do I need to order the levers separately for the Emtek 1544 trim set?
No, the set ships with plates and handles. The lever style is a choice you make at order time, and the plate accepts any Emtek Lost Wax Cast Bronze (Tuscany Bronze) lever if you want to match other doors in the house.
6) Will the interior lever on this Emtek patio trim sag over time?
Emtek builds a spring assist into the multi point trim, which returns the lever to horizontal and is there specifically to stop handle sag on the operating side.
7) How big are the Emtek Tuscany multi point plates, and what are they made of?
The plates measure 2 x 10-1/2 inches in the Tuscany style, cast in solid bronze by lost wax casting. That narrow width suits typical French and swinging patio door stiles, and the cast bronze will patina rather than flake the way a plated finish can.
8) Is the Emtek 1544 trim right for a commercial entrance?
No. It is a residential swinging patio door trim, non-keyed and non-electrified. For a commercial opening needing cycle-rated, graded hardware, look at a mortise or cylindrical lockset instead of this multi point trim.
9) Can I key the Emtek 1544 to match my front door?
Not this one. Config #5 is the non-keyed function, fixed outside handle with no cylinder hole used for keying, meant for the semi-active leaf. If you need a keyed leaf, you want a keyed Emtek multi point configuration that takes a Euro profile cylinder.
