Emtek Emtek 1844 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1844

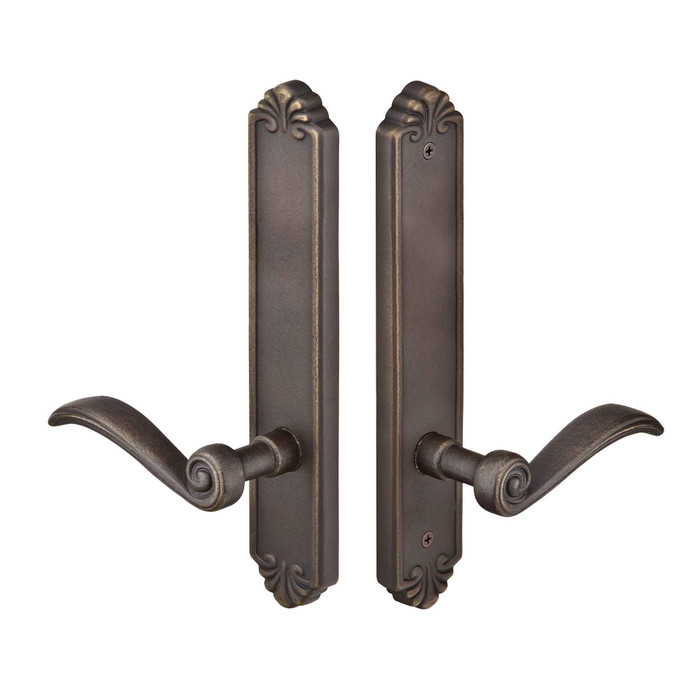

Emtek 1844 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1844-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #8
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1844 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#8
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Neuma Doors
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1844
(CTC) Center-to-Center:
5-1/4"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1844-MB – Frequently Asked Questions

1) Does the Emtek 1844 multi point trim include the multi point lock mechanism?
No. The Emtek 1844 is trim only: plates and handles. The multi point mortise lock box has to be sourced separately, and the trim mounts over it. Budget for the lock body plus the trim when you price the opening.
2) What does the non-keyed fixed handle outside / operating handle inside function on the Emtek 1844 actually do on a patio door?
It is the semi-active (inactive) leaf trim of a French or patio door pair. Outside you get a fixed, non-operating handle, essentially a pull. Inside the lever operates the multi point lock to throw and retract the points. There is no cylinder, so you cannot key it from outside; the keyed leaf is the active door.
3) What is Door Configuration #8 on Emtek multi point trim and how do I know it's the one I need?
Emtek codes each trim by the arrangement of the plate, handle and cylinder cutouts. The 1844 is Configuration #8: no keyway, fixed handle outside, operating lever inside, on a 2 by 10-1/2 inch plate with a 5-1/4 inch center-to-center between the handle and the upper hole location. Match that against the prep already routed in your door or on the door manufacturer's hardware chart before ordering.
4) Will the Emtek 1844 trim cover the existing prep on my door?
The escutcheon plates measure 2 by 10-1/2 inches with a 5-1/4 inch center-to-center spacing. If your existing prep is wider than 2 inches or the hole spacing does not match 5-1/4 inches, the plate will not cover it and you will be patching the door face. Measure the spacing between the existing handle bore and the upper hole first.
5) Do I have to specify handing for the Emtek 1844?
Yes, handing is required. You pick Right Hand (RH) or Left Hand (LH) at order time. Stand outside the door: if the hinges are on the right it is right hand. Getting this wrong on a semi-active leaf means the fixed outside handle and the inside lever land on the wrong sides.
6) What do I have to pick besides the finish when ordering the Emtek 1844?
Three things. Lever style, from Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing, right or left. And door thickness, which is a free-text entry so the spindle and screw pack come sized to your door. Finish is Flat Black Bronze (FB) or Medium Bronze (MB).
7) Can I mix a different Emtek lever with the 1844 Tuscany bronze plates?
Any Emtek Lost Wax Cast Bronze lever from the Tuscany Bronze collection can be ordered on these plates, so you are not locked to the four default swatches if your other doors in the house use another Tuscany bronze lever. The plate itself is lost wax cast bronze, so keep the lever in the same material family for a finish match.
8) Will this Emtek trim fix handles that sag on a tall patio door?
Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what stops the drooping handle you get on older multi point trim after a few seasons of use. That is built into the trim set, not something you add.
9) Is the Emtek 1844 suitable for a commercial entrance or apartment building door?
It is a residential product, meant for swinging patio and French doors in homes. For a commercial entry with traffic and code requirements, this is the wrong trim. Two bronze finishes are offered, Flat Black Bronze and Medium Bronze.
10) Does the Emtek 1844 take a cylinder, and where does the cylinder go on the keyed version?
The 1844 itself takes no cylinder, it is the non-keyed semi-active half. On the keyed Emtek multi point trims in this family the cylinder sits above the handle and takes an American standard cylinder. That is what you order for the active leaf of the pair, so the two doors can be keyed alike with the rest of the house.
11) Which door manufacturer's multi point hardware does the Emtek 1844 reference?
Emtek lists Neuma Doors as the reference door manufacturer for this trim configuration. If you are trimming out a Neuma swinging patio door, this is the configuration to check against your door's prep sheet.
12) Is the Emtek 1844 an electronic or smart lock trim?
No, it is purely mechanical trim. No electronics, no motor, no keypad. The inside lever mechanically drives the multi point lock box you supply separately.
