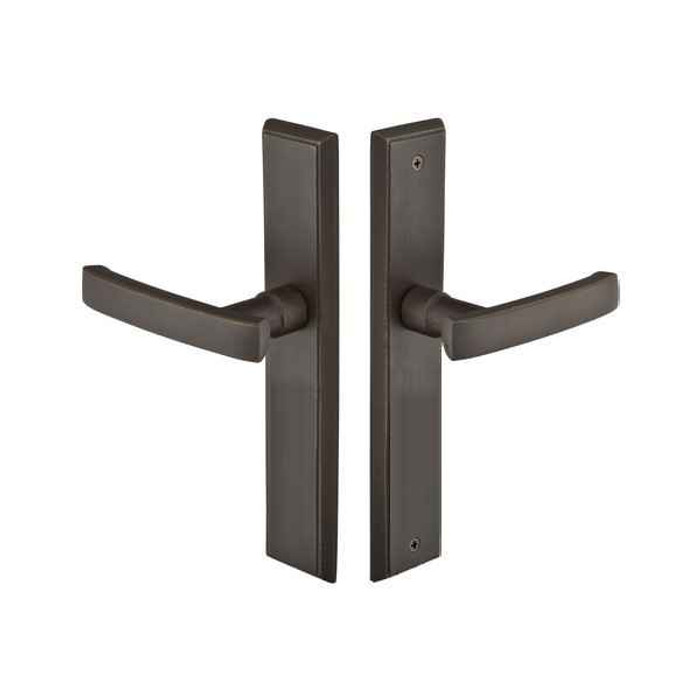

Emtek Emtek 1562 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Passage EMTEK-1562

Emtek 1562 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1562-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1562 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Rectangular
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1562
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1562-FB – Frequently Asked Questions

1) Does the Emtek 1562 multi point trim include the mortise lock body?
No. The 1562 is trim only, a set of plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so you need the existing lock body in the door or a new one ordered alongside it. Each set does include the Spring Assist function, which returns the lever to neutral and keeps the handle from sagging.
2) What is Door Configuration #5 on Emtek multi point trim, and how do I know it matches my patio door?
Configuration #5 describes the layout of the trim: on the 1562 the cylinder position is below the handle, and it uses a Euro profile cylinder prep with 3-5/8 inch center-to-center from handle to cylinder. Measure your existing trim from the handle spindle to the cylinder hole; if it comes out at 3-5/8 inches with the cylinder below the lever, config #5 is the right plate. This particular version is non-keyed passage, so it takes no cylinder.
3) Will Emtek 1562 trim work on a Therma-Tru or Kolbe patio door?
Yes, both are among the door manufacturers this trim is referenced to. The full list is Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. Match the configuration (#5, cylinder below handle, 3-5/8 inch center-to-center) to the prep already in your door.
4) Does non-keyed passage mean this patio door handle doesn't lock at all?
The 1562 trim itself has no cylinder and no key. It's passage function, so the lever simply operates the handle. Locking on a multi point setup comes from the mortise lock body you pair it with, which is ordered separately. If you want a keyed exterior handle with a Euro profile cylinder, you want a keyed version of the config #5 trim rather than this one.
5) What door thickness and backset does this Emtek multi point trim fit?
It suits doors from 1-3/8 to 1-3/4 inches, with an adjustable backset of 2-3/8 or 2-3/4 inches and a 2-1/8 inch cross bore. That covers standard residential patio and entry door prep. Door thickness is a required entry when ordering, so give the measured thickness of your slab.
6) Do I have to specify handing for the Emtek 1562, and what happens if I get it wrong?
Handing is required, right hand or left hand, and the trim is built to that hand. Stand outside the door: if the hinges are on your right it's right hand. Ordering the wrong hand means the lever pitches the wrong way and the Spring Assist return works against you, so it's not a field-correctable choice.
7) Which levers can I put on the Emtek 1562 sandcast bronze plates?
Any Sandcast Bronze lever from the collection. The choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, and the lever is a required selection at order time. The plates themselves are the rectangular style, 2 by 10 inches.
8) What finishes does the Emtek 1562 sandcast bronze trim come in, and will it match other bronze hardware in the house?
Three finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are Emtek Sandcast Bronze finishes, so they key to other Sandcast Bronze levers, knobs and plates in the same finish code across a house. Sandcast bronze is a living finish and varies piece to piece, which is part of the rustic look.
9) Is the Emtek 1562 trim rated for commercial use?
It's a residential product, sold for swinging patio door use. For a commercial opening with traffic and code requirements, specify a commercial-grade lockset instead rather than residential patio trim.
10) Can I use a round corner latch faceplate with this Emtek multi point trim?
Yes, the latch faceplate is available in round or square corner to match the mortise pocket already cut in your door. Check the existing plate before ordering so you are not chiseling a square corner into a radius prep.
